Guangzhou hot selling vinyl sticker film laser cutting plotter thermal transfer vinyl plotting cutting machine fast

Supplier: Guangzhou Ledio Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Helen Chan
Price:
Min. Order: 1 piece

Click here to contact

Product details

We have stock in Guangzhou, welcome to patronize!

Product Description

product specifications

type	980 Laser Professional+
Laser type	SPT glass carbon dioxide laser tube
Tube power	50 watts
Laser power supply brand	Laser power
Maximum discharge width	980mm
Maximum cutting width	800mm
Repeatable cutting accuracy	±0.2
Motor drive method	stepper motor
Cooling water chiller	CW3200
cutting gas assist	20 watts

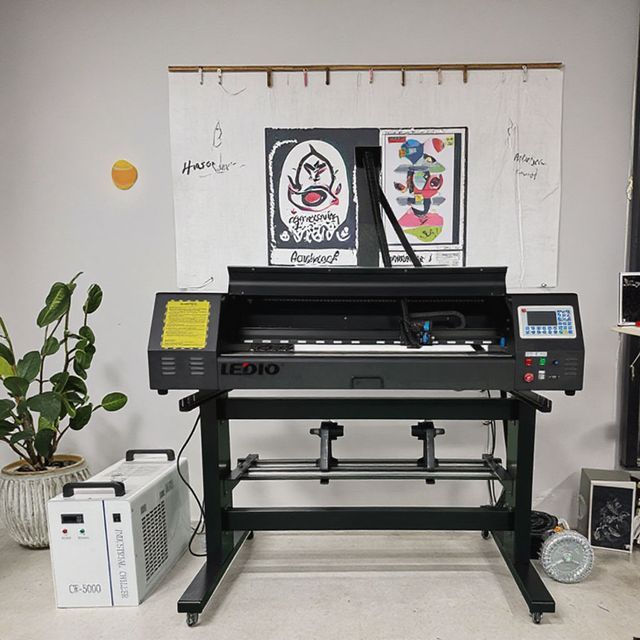

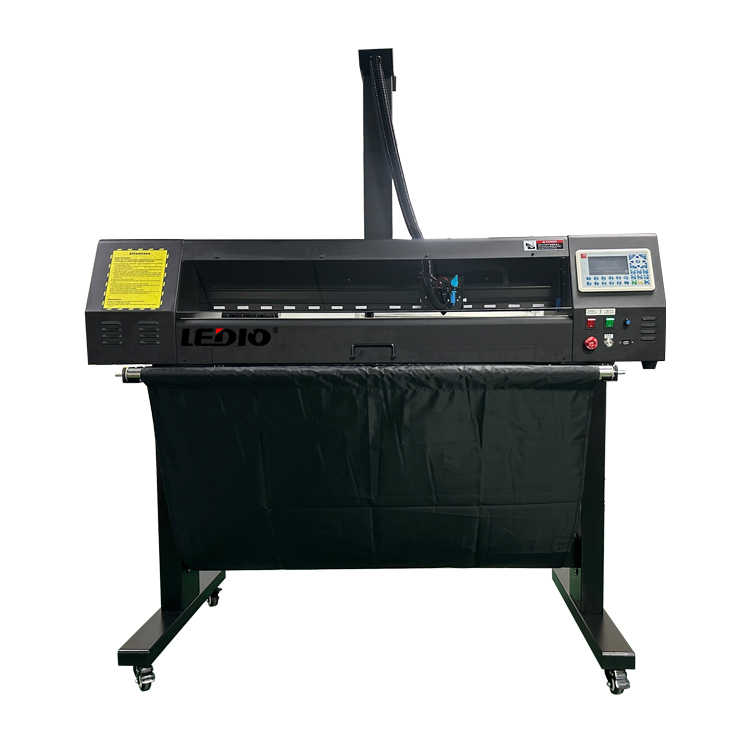

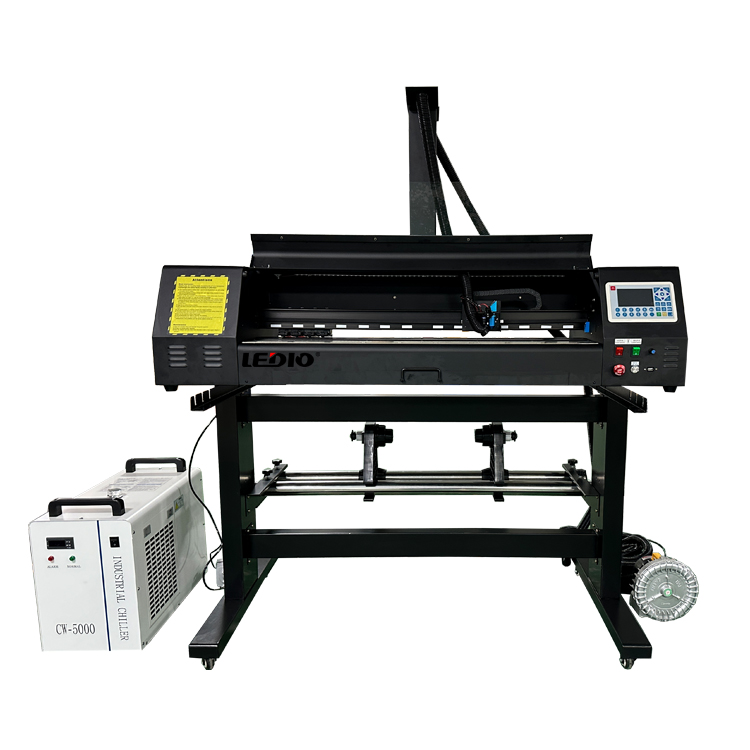

Sample display

Product configuration

control system

Using NEW A3S laser controller to support PC connection, U disk reading, network port connection, and WIFI connection

Feeding system

Adopt fully segmented steel barbed shaft
The steel barbed shaft has better friction, which is beneficial to the accuracy of the material's forward and backward movement, making
The material runs smoothly. Integrated glue injection pressure wheel prevents material loss.

Feeding system

Passive feed Passive feed uses fixed left and right clamping axes. Clamping shaft with adjustable feed
Both sides exert force. Materials can be more stable when feeding. Left and right retainers prevent material from being
Left and right offset, the cutting material will not deviate

garbage collector

The waste during the cutting process can easily cause the material height to increase, and the waste will fall into the waste collector during the material process.
Movement to ensure stable cutting and easy collection of waste to maintain hygiene.

Laser tube type

Using customized professional CO2 laser tube 50W customized professional laser tube, small spot, stable cutting, long service life

co2 about 4000 hours

Waste gas extraction device

High powered vacuum turbine blowers absorb the fumes produced when cutting pipes.

Machine advantages

1. Laser engraving machine cutting range and advantages: self-adhesive, instant notes, kraft paper, PVC film, PP material, PU material, TPU material, thin acrylic, cardboard, thin wood board, silicone material, clothing lettering film, most materials, Cloth and other non-metallic soft materials within 2mm can be cut and engraved.

2. The laser engraving machine emits laser light from a laser tube or radio frequency laser. After three reflections, it is then focused to generate cutting force to burn and cut the material. Laser cutting is non-contact cutting and does not require compensation when cutting directly or cutting at sharp corners. The cut is very smooth. The cut edge of laser cutting is easier to separate from the waste material, and it is easier to expel the waste material. Laser cutting can also achieve multi-color line segments with different power and speed settings, and achieve simultaneous half-cut and full-cut cutting. Unnecessary internal waste can be directly removed, saving time for manual removal (also known as laser waste removal machine). Laser engraving machines can also remove surfaces to achieve an engraving effect. Laser cutting is deeper than knife cutting, and the cutting thickness can reach 1.5-2.0mm

3.Laser engraving machine The width of the laser engraving machine can reach 800mm, and the length is not limited, so you do not need to manually place the material. Judging from the cutting effect, since the laser head of the laser engraving machine moves for cutting, the cutting force is uniform and the cutting surface is vertical.

Welcome to cooperate with us!
