Curtis 36V/48V 500A DC Motor Controller Assembly 1205M-5603

Supplier: Hefei Huanxin Technology Development Co., Ltd.
Region: Anhui, China
Contact: Mr Jason Yu
Price: $250.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Warranty:	1 Year;	Payment Terms:	L/C,T/T,Western Union;
Excitation Type:	Series Excitation;	Model Number:	1205M-5603;
Place of Origin:	Anhui China;	Model Number:	1205M-5603;
Packaging Detail:	CARTON;	Port:	Shanghai;
Motor Type:	DC Motor;	Current:	500A;
Brand Name:	Curtis;	Voltage:	36V/48V;
Quality:	Excellent;	Brand Name:	Curtis;
Application:	Electric Vehicle;	Supply Ability:	3000 Piece/Pieces per Month;
Place of Origin:	Anhui,China;

Product Description

pecifications

CURTIS 1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1205M controllers are updated versions of the popular 1205 controllers, with the added functionality of being programmable-via the CURTIS Model 1313-4401 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

CURTIS 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

Overview:

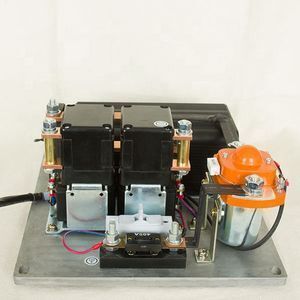

This 1205M-5603 controller assemblage is a completed electric vehicle DC Series Motor control system. The assemblage includes:

controller

main contactor
forward / reverse contactor
fuses
wiring

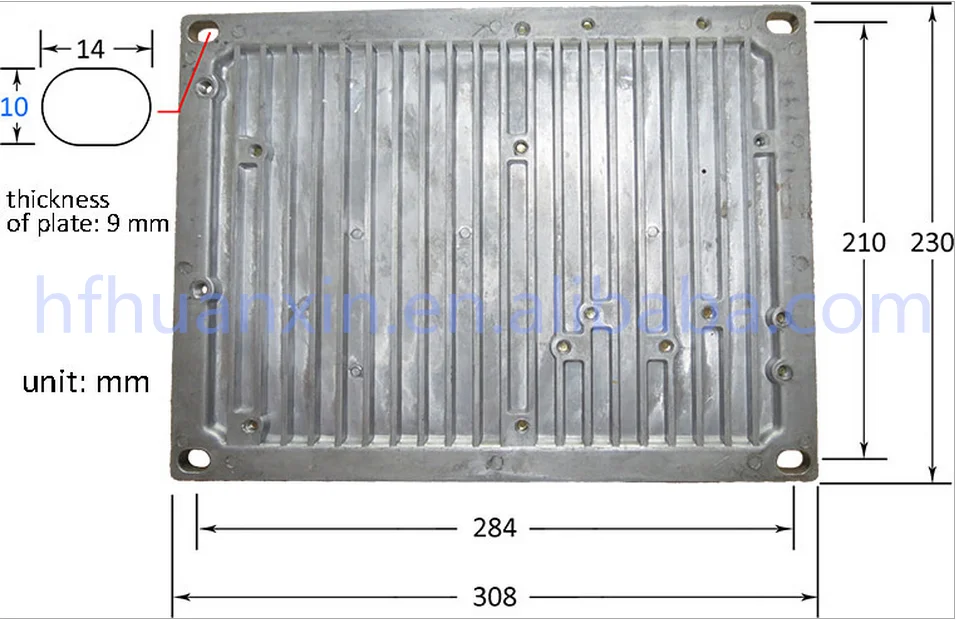

heat-sink aluminium alloy installation plate
foot pedal accelerator (throttle)
plug-in connectors
installation (bolts, washes and nuts) kit Included

Key Features:
CURTIS Model: 1205M-5603
Norminal Battery Voltage (Volts): 48V (default setting) or 36V
1 Minute Current Rating (amps): 500
1 Hour Current Rating (amps): 200
Plug Braking (A2 Busbar): Yes

Features Include

High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
Compatible with either a two-wire potentiometer or a voltage throttle.
Throttle fault protection circuitry disables controller if throttle wires become open.
High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
Plug braking diode internal to controller.
Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
