full automatic terminal crimping machine

Supplier: Dongguan Hilong Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Liping Xin
Price: $8800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	wooden case;	stroke:	30mm;
Usage:	Crimping;	crimping force:	2Ton;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Model Number:	HL-02;
Brand Name:	Hilong;	Place of Origin:	Guangdong China;

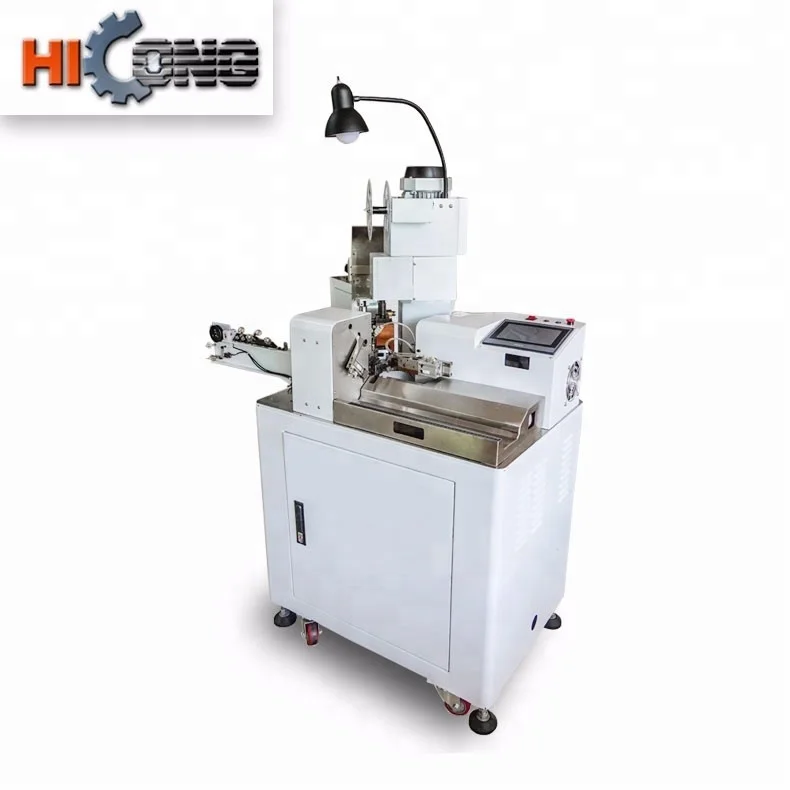

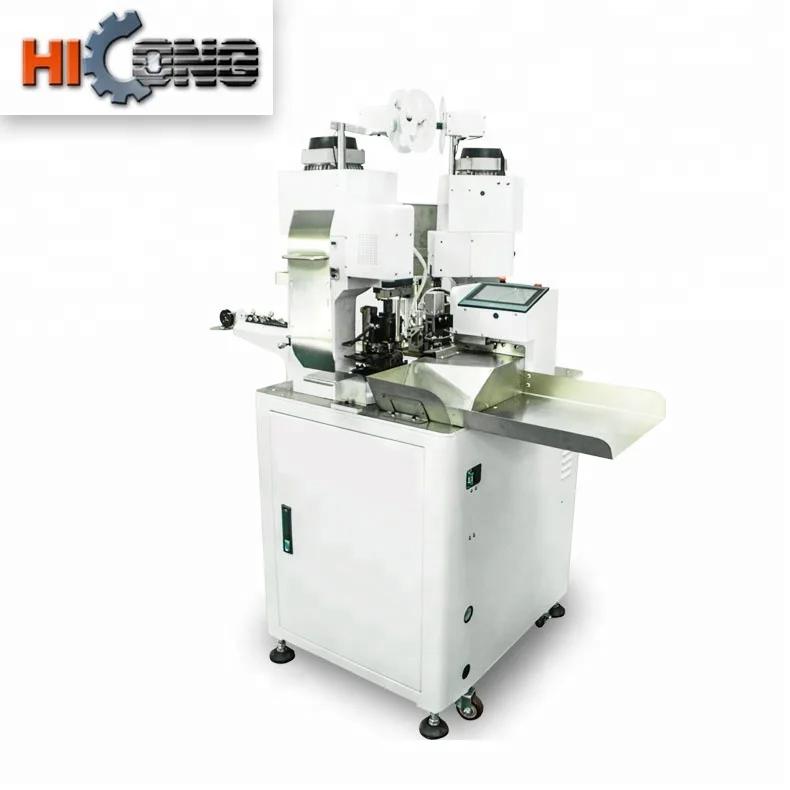

Full Automatic terminal rimping Machine :

Wire Stripping Cutting and Crimping Machine (HL-02)

Product Name : Wire Stripping Cutting and Crimping Machine

Product Model: HL-02

Payment Terms : 100% In Advance

Date of Shipment: 1-5 days

Warranty Terms: One Year Free Warranty

Features:

This machine will cut and strip your wire firstly and then crimp a terminal on two wire head automatically. You can also close the crimping function, then it becomes to an automatic wire stripping and cutting machine.

Specifications:

Available Wire Size: 0.4 ~ 3.5mm ( AWG18 ~ AWG30)

Cutting Length: 20 ~ 900mm

Stripping Length: 0.5 ~ 10mm

Tolerance: ±(0.1 + 0.005×L) L = Total Length

Crimping Force: 2.0T

Speed: 5000pcs/hour

Air Pressure: more than 6.0Kg/cm2

Power Supply: 500W / 220V / 50Hz ~ 60Hz

Gross Weight: 315Kg

Dimension: 80 ×83× 153cm

Remarks: This machine can crimp various terminals, we can design the crimping die according to your samples. If you want to use one machine to crimp different terminals, you only need to change applicator!
