Semi-auto Coaxial Wire Stripping Machine

Supplier: Dongguan Hilong Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Liping Xin
Price: $1650.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	wooden case;	Place of Origin:	Guangdong China;
Weight:	20kg;	Supply Ability:	100 Unit/Units per Month;
Usage:	Stripping;	Payment Terms:	T/T,Western Union,MoneyGram;
Brand Name:	Hilong;	Model Number:	HL-8515;
Port:	shenzhen;

Coacial Wire Stripping Machine

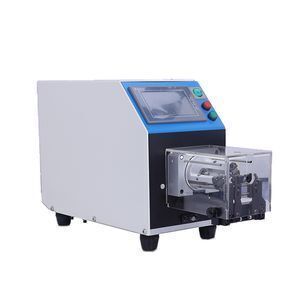

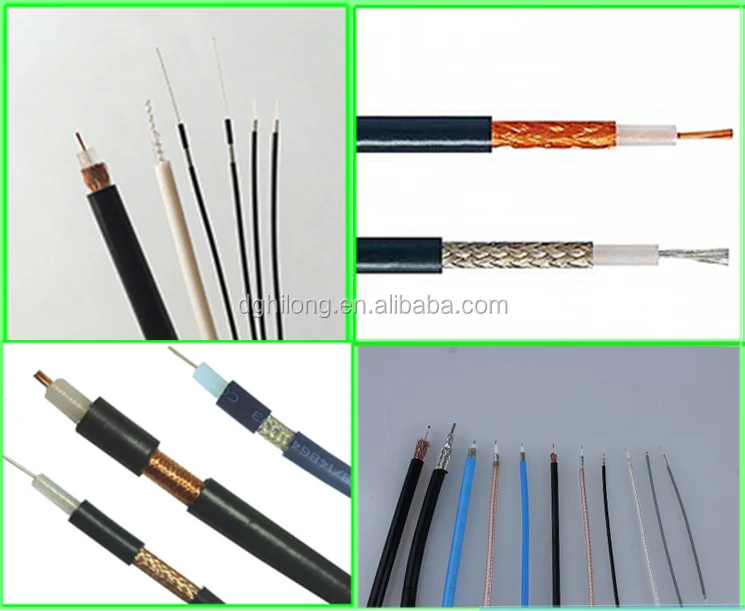

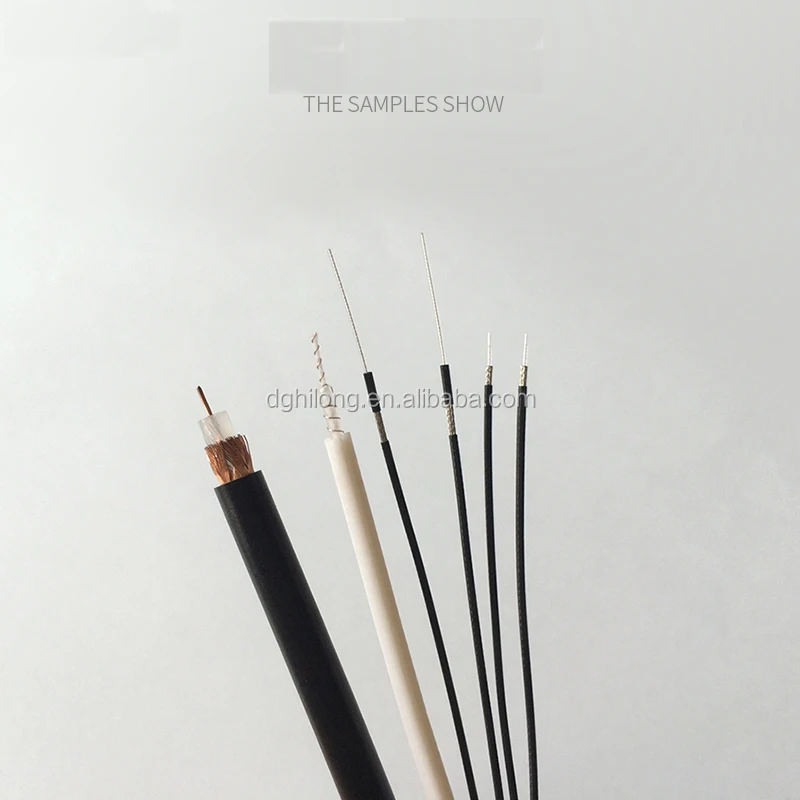

The Coaxial Wire Stripping Machine HL-8515 is a semi-automatic, programmable multi-step stripping machine for coaxial, triaxial, multi-conductor cable and single conductor wire. This benchtop unit can easily process coaxial and triaxial cables up to 15 mm outer diameter and strips lengths up to 85 mm .

1.High precision rotary stripping up to 9 steps

2.Fast processing speed

3.Menu guided programming with user-friendly graphical display

4.Max. Diameter mm 15 mm

5.Diameter Increments 0.1 mm

6.Max. Stripping Length 85 mm

7.Stripping Length Increments 0.1 mm

8.Cable Clamping Motor driven with programmable clamping force

9.Stripping Steps 9 (depending upon cable type and programming)

10.Dimensions (L xW x H) 525 x 186 x 278 mm

11.Weight 20kg
