CANBEST high resolution full color P2 P3 P4 flexible LED display panel led video wall

Supplier: Canbest Opto-Electrical Science & Technology Co., Ltd.
Region: Henan, China
Contact: Mr Canbest LED
Price: $692.31 / >=5 square meters
Min. Order: 5 square meters

Click here to contact

Product details

Delivery Detail:	0 days after payment;	Place of Origin:	Henan China (Mainland);
Brand Name:	CANBEST;	Single package size:	96X96X13.3 cm;
control system:	Linsn;	Pixels:	4.0mm;
Single gross weight:	31.5 KG;	Cabinet installation type:	Front and Rear maintenance;
Selling Units:	Single item;	Module size:	240*240mm;
Driving method:	1/20 scan;	IP rating:	IP40/IP31;
Viewing angle:	160/160degree;	Display Function:	Video,Graphics,Animation;
Package Type:	Packaged in wooden case or flight case.;	Model Number:	FI4S;
main IC:	MBI5024;	Cabinet size:	48048067mm;
Screen Dimension:	Customized;	Cabinet material:	Die-casting Aluminum;
Usage:	Indoor;	Tube Chip Color:	Full Color;
Brightness:	800nits;

Recommended Indoor

CANBEST high resolution full color P2 P3 P4 flexible LED display panel led video wall

Ultra slim/thin and ultra light design:Adopting die casting aluminum to reach high accuracy,

Widely used in the indoor fixed occasions, such as information display, traffic commanding, military control, video conference, TV station etc.

About our product

Product Highlights

Fast assembly and disassembly

With magnet device mounted on each module,

enable fast installing work, reducing labor cost,

without brass hexagonal spacer,makes an

exquisite surface, and stronger reliability.

Seamless connection

The adjustable devices can fine-tune the whole panel seamless, assuring the display effect.

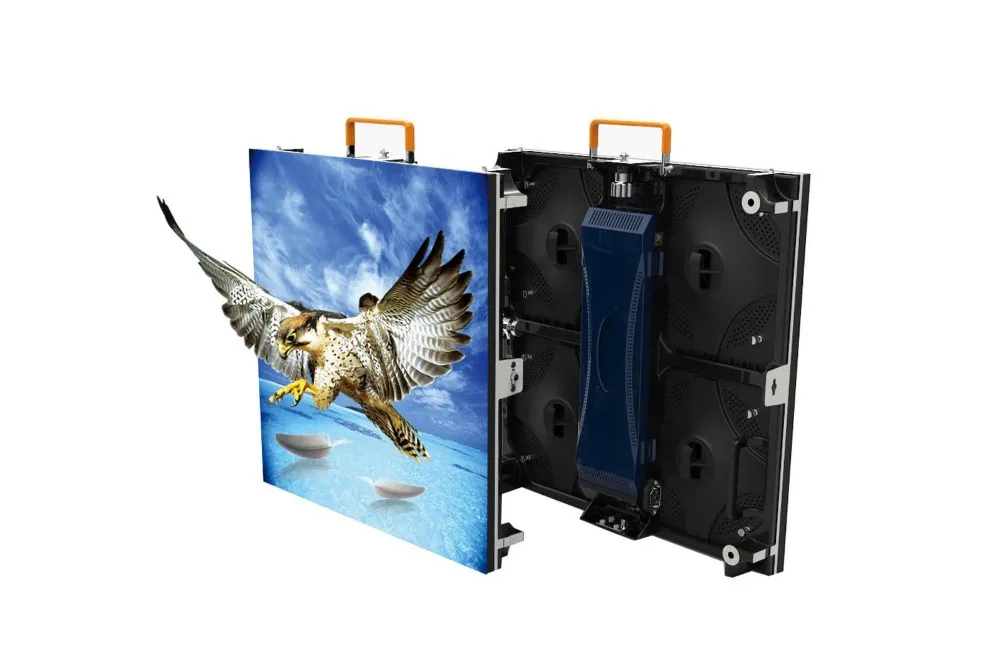

Front and Rear maintenance

Both module and power system can be replaced

freely, reducing the maintenance cost.

Ultra slim/thin and ultra light design:

Adopting die casting aluminum to reach high accuracy

Technical Parameter

Value	FI2S	FI3S	FI4S
Pixel pitch (mm)	2.5	3	4
Pixel configuration	SMD	SMD	SMD
Brightness (nits)	1000	1000	800
Grey scale ( level )	16384	16384	16384
Pixel Matrix Per Panel	192 x 192	160 x 160	120 x 120
Pixel Matrix Per Sq.m	160000	111111	62500
Viewing Angle (H/V)	160 / 160	160 / 160	160 / 160
Refresh rate (Hz)	≥1920	≥1920	≥1920
IP grade ( F / R)	IP40 / IP31	IP40 / IP31	IP40 / IP31
Input voltage ( V )	AC220V±10%	AC220V±10%	AC220V±10%
Power Consumption (Max / Avg)	490 / 170 w/sq.m	650 / 230 w/sq.m	500 / 150 w/sq.m

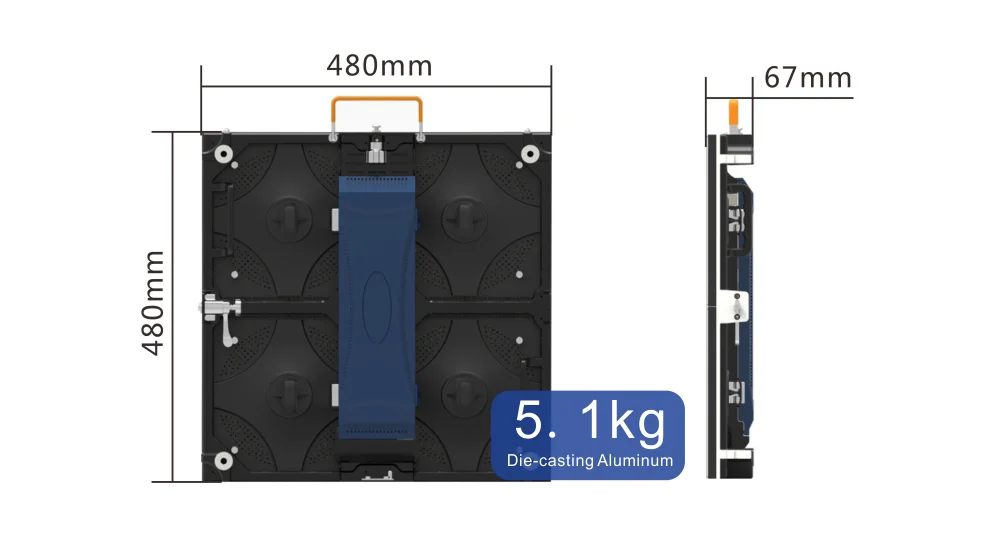

Size (L x W x D mm)	480x480x67	480x480x67	480x480x67
Panel weight (Kgs)	5.1 (Die-casting Alu.)	5.1 (Die-casting Alu.)	5.1 (Die-casting Alu.)

Solution

Company Information

Canbest Opto-Electrical Science &Technology Co.,Ltd. is an innovative and professional company that devotes to developing, manufacturing and marketing LED Display products.

With the highest standards of product quality and service, our products are well exported to 70 countries and territories, and there are more than 700 successful projects all over the world. And this figure is increasing every year. Meanwhile, Our Products are very popular in American, Canada, Austria and Europe Countries .

Now CANBEST is becoming a leading integrated solution provider in this industry and will be the most responsible and reliable partner to the enterprises and designers who are committed to LED Optoelectronics industry.

FAQ

Q1: Why choose us:

A1.1: Company System: we have been in LED industry for almost 10 years, focusing on the led display, and we have completed more than 2000 projects home and aboard, thus we are fully experienced to provide led display solutions. We are focusing and professional!

A1.2: R&D System: we have our R&D team with more than 8 years’ experience, and we will launch new products according to the customers ‘needs every year or even each quarter.

A1.3: Products System: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as advertising led poster, soft led display and led curtain mesh, they are widely used for shopping mall, stage, events, conference room, church etc. meeting the demands of message display and delivery.

A1.4: Manufacturing System: we have strict QC control and manufacturing management process, which enable our products high quality and stable working performance.

A1.5:Service System:we have specialized technicians before and after sales. And strong marketing team to offer you the solutions 7/24 anytime.

Q2: What about your pre-sale service and post-sale service?

A2: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!

For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.

Also, we can send technical to your country to solve problems. Mostly, our led display will not have big problems within warranty time!

Q3: What’s your payment term? How long it takes to delivery?

A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.

Q4: What is the control system?

A4: We use Nova, Linsn control system.

Q5: How can you ensure your led display product quality?

A5: we have been enrolled in led display industry for almost 10 years, and we have a professional R&D team and skilled QC team with standard process to assure quality products.

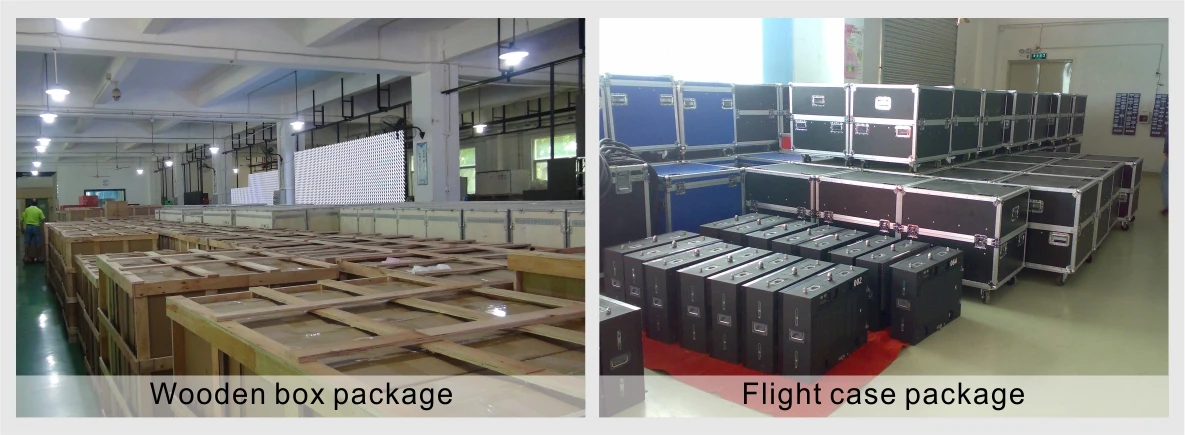

Packaging
