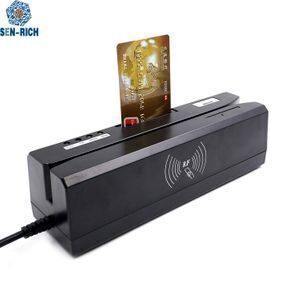

IC/PC/NFC smart EMV Chip credit card reader writer + all 3 tracks magnetic card reader device POS system

Product details
Certification:USB2.0/USB-OTG;Application:Reading Stripe Card;
Card Slots:All in 1 / Multi in 1;Size:160mm(L) /45mm(W) / 45mm(H);
Feature:USB Mini Magnetic Stripe Card Reader;Payment Terms:T/T,Western Union,PayPal;
Supply Ability:10000 Piece/Pieces per Month;Color:Black;
Packaging Detail:Dimensions 160mm(L) *45mm(W) * 45mm(H) Weight 180g;Keywords:Computing Terminal;
Weight:180g;Port:Shenzhen;
Model Number:RS160;Installation:Internal;
Interface:USB;Type:MMC Card,SM Card;
Host Interface:USB 2.0 CCID1 (also Compliant;Support card type:Credit Card Ect;
Support cards:RFID/IC/PSAM;Brand Name:Sen-Rich;
Place of Origin:Guangdong China;
All-in-oneCardReader

IC/PC/NFC smart EMV Chip credit card reader writer + all 3 tracks magnetic card reader device POS system

-Feature-

Various interface: USB

Read & write functions:Reading the full three-track magnetic card, support bi-directional swipe,Optional magnetic rail 1,2,3. Read magnetic cards, IC card reader, proximity card function.Support the function of the PSAM card operation

Compatibility:100% compatible MSR206 instruction set

Standards: Accord with ISO, AAMVA DMV user-defined format

Data transfer: Two leds tip data transmission process. Green LED flashes to indicate credit card data being output, after the completion of a three-track card full output Beeper.

Card type: all kinds of memory CARDS and T = 0, T = 1 communication protocol of CPU card Support the multi-function PSAM card operation

Convenient&easy: Boot self-checking, without external power supply, plug & play, don't need to install the driver Support for Android tablet

Certification:EMV L1 ,PBOC 3.0 L1

ADVANTAGE
Supports Windows 98 / XP/WISTA/Windows 7 / doing system, to provide convenient DLL secondary development.
Provide complete dynamic library functions, development, main points, call example source code examples, and various development language (including: the vb6.0 by use of vc + +, Java 6.0)

-Technogical  Data-

Magnetic card
Selectable tracks
yes
Read card
1/2/3tracks
Swipe
Double direction
Head life
Approx 500,000 passes
Parity and LRC checking
Built-in, audible and LED good read and error indicator
Cards supported
ISO 7811,AMMVA,CADMV
RFID card
Operating Frequency
13.56 MHz
Smart Card Interface
ISO14443-A, Mifare
Sensing Distance
About 0-5cm
Programmable sound
ON or OFF
Cards supported
ISO14443A,MifareOneS50,MifareOneS70,MF3 DESFIRE, Ultralight, ISO14443B ,SONY felica
PSAM card
Head life
Approx 200,000 passes
Communications
USB
Cards supported
ISO 7816-3
operating system
Win7, Win 2008 ,Vista, Win 2003, Win 2000, XP, Linux
IC Card
Cards supported
AT24C01A/24C02/24C04/24C08/24C16/AT24C64,SLE4432/4442,SLE4418/4428,ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0)
Communications
USB2.0,USB-OTG(Android 3.1 above)
Swipe speed
3 ~ 60 inches per second
Maximum power consumption
100 mW
Temperature
Commercial-grade:-20°∼ 60 °C;Industrial-grade:-20°∼ 60 °C
Humidity
90% non- condensing
Anti-static interference
15KV
Magnetic interference resistance
19Oersted
Vibration resistance
Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration
Insulation Resistance
Hot and humid circumstances(40°,95%)Insulation resistance should not be less than 5MΩ
Dimensions
160mm(L) ×45mm(W) × 45mm(H)
Weight
180g
Related Products
Certifications
Our Company

Shenzhen SEN-RICH Technology Co.,Ltd located in shenzhen Internet industry base, is a professional manufacturer in producing handheld mobile communication terminal products !Combined R&D with sales ! Such as: PDA data collector; POS unionpay machine; Electric data acquisition; Parking management PDA, etc.
SEN-RICH has devoted to build and apply internet of things over the years. Relying on core intelligent technology and reliable products with perfect solutions, its product has been passed the "ISO9001 international quality management system certification enterprises" CCC, IP65 quality detection, etc. Products are widely used in smart grid, commerce, logistics, parking fees, and other areas of the Internet of things.
In the field of modern business, In the field of smart business, SEN-RICH specializes in various smart terminals that integrate barcode technology and RFID, products such as cash register, financial POS, handheld terminal, electronic scale, scanner, bill printer, solutions and information service.Including integration with bar code technology and radio frequency identification technology (RFID) of all kinds of intelligent terminal, cash registers, financial POS, hand-held terminals, electronic scale, scanning guns, paper printers, and other products, its products are widely used in telecommunications, mobile, unicom and other network operators. Route,Adhere to brand. Product sales increasing year by year, established good strategic partnership with China railway bureau , ZTE intelligent and numerous software design companies. Build a win-win relationship is our unremitting pursuit. Warmly welcome distributors and wholesalers for cooperation.

Packing & Delivery
FAQ

1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.

2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment (Escrow Service from Alibaba) and so on.

6.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.

7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers' various application and demands.

8. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
