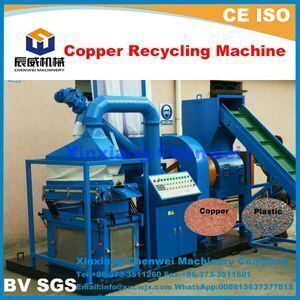

Waste Copper Cable Recycling Machine

Supplier: Xinxiang Chenwei Machinery Co., Ltd.
Region: Henan, China
Contact: Mr JASON DU
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	Waste Copper Cable Recycling Machine;	Dust collector:	equipped;
Port:	Qingdao/Tianjin/Shanghai;	Output:	300-450kg;
Warranty:	12 months;	Delivery Detail:	Shipped in 25 days after payment;
Model Number:	CWR400;	Final product:	metal granule/copper granule and plastic granule;
Usage:	Stripping;	Accuracy:	over 99%;
Brand Name:	CWJX;	Payment Terms:	L/C,D/A,T/T,Western Union;
Application:	crushing,screening,recycling the wast cable,wire;	Supply Ability:	100 Set/Sets per Month;
Cable Diameter:	less than25mm;	Voltage:	240/380/415/440V;
Industry:	waste cable recycling;	Place of Origin:	Henan China (Mainland);
Packaging Detail:	Standard export package for waste copper cable recycling machine;

Waste Copper Cable Recycling Machine

Product Description

1.Application:

This waste copper cable recycling machine are widely used for processing waste telephone wire,car button wire,motorcycle electric wire,computer wire USB wire, communication cable automobile wire,miscellaneous wire etc.

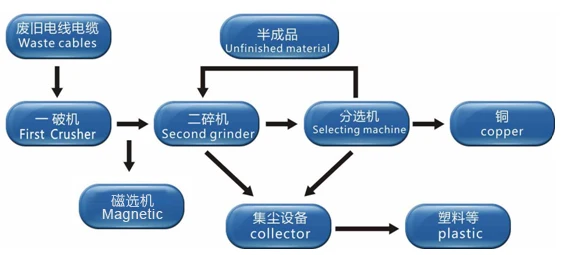

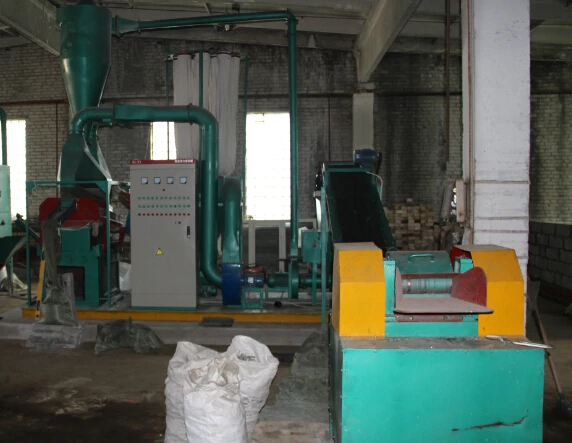

This whole system is consist of belt conveyor,crusher,screw conveyor,separator,blower,dust collector and control cabinet which can be used to recycle the copper granules from waste copper.

2.Feature of copper cable recycling machine

1.only 2 workers to operate the whole system

2.Cable diameter under 25mm can be processed

3.Purity of copper up to 99%

4.No pollution

5.Skid mounted available

6.The whole system is controlled by PLC

7.Small land occupancy

3.Technical data

Model	CWR400	CWR600	CWR800	CWR1000
Capacity (kg/h)	300-450	500-600	700-800	900-1000
Total Power (kw)	16	48	56	80
Packing Dimension(m)	222.3	3.82.22.4	4.22.83.5	4.53.23.8
Weight (kg)	1300	2800	3800	4500
Voltage(V)	380V if no require (Customized design available)
