Horizontal Ribbon Mixer

Supplier: Xinxiang Chenwei Machinery Co., Ltd.
Region: Henan, China
Contact: Mr JASON DU
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO9001 CE;	Name:	Ribbon Blender;
Place of Origin:	Henan China (Mainland);	Power (kW):	2.2;
Max. Loading Capacity:	2000L;	Dimension(LWH):	Custom Made;
Warranty:	1 Year;	Mixer Type:	Ribbon;
Machine Type:	Horizontal;	Brand Name:	CW;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight (KG):	500;
Application:	Powder;	Barrel Volume (L):	2000;
Capacity:	100L-2000L;	Voltage:	220V/380V/415V/440V;
Payment Terms:	L/C,D/P,Western Union;	Function:	mixing powder or granules;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Construction works ,Food & Beverage Shops,Advertising Company;	Key Selling Points:	Easy to Operate;
Material:	Stainless steel or mild steel;	Product Type:	Any type of powder or granules;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training;	Supply Ability:	100 Set/Sets per Month;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	Max. Loading Volume (L):	2000;
Packaging Detail:	Standard export package for ribbon blender;	Port:	Qingdao/Tianjin/Shanghai;
Additional Capabilities:	Drying;	Condition:	New;

Horizontal Ribbon Mixer

Company Information

Product Description

Working principle:

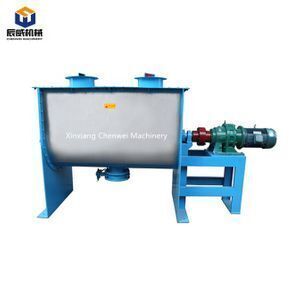

Horizontal ribbon mixerconsist of U-shaped barrel, agitator, speed reducer and electric motor .Untwist double ribbon are swirled with the main shaft in the U shape barrel. The outer ribbon push the material from the two ends to the center of the barrel, inner ribbon push the material from center to the two ends.Thus to achieve material convention
Under the driven of motor, the double ribbon agitator mix the material quickly. This ribbon blender is characterized by high mixing effect, large productivity, and a very low failure rate. Since it is a batch type mixer, customer should choose the model according to the output per batch.
The discharging port is set in the bottom center, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.

We also provide suitable feeding machine for the ribbon blender,such as screw conveyor,vacuum conveyor,bucket elevator,flexible screw conveyor etc.

Additional configuration:
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so on
2. Bearings: NSK/SKF and so on
3. Heating/cooling jacket
4. Spraying system
5. Heavy duty type ( loading your material into the mixer first and then start the mixer)
6. Platform: we build the platform for you or we design it and you build it locally
7. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
Customizing according to client’s specific requirement

Application:
The horizontal ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule.

Technical data:

Model	Loading capacity	Loading factor	Ribbon Speed	Power	Weight(kg)
CWRB300	180L	0.6	63 r/min	5.5 KW	500
CWRB500	300L	0.6	63 r/min	7.5 KW	900
CWRB1000	6000L	0.6	50 r/min	11 KW	1400
CWRB2000	1200L	0.6	34 r/min	15 KW	2500
CWRB3000	1800L	0.6	33 r/min	18.5 KW	3100
CWCM4000	2400L	0.6	28 r/min	22 KW	3600
CWRB5000	3000L	0.6	28 r/min	30 KW	4500
CWRB6000	3600L	0.6	28 r/min	37 KW	4900
CWRB8000	4800L	0.6	23 r/min	45 KW	5600
CWRB10000	6000L	0.6	23 r/min	55 KW	7800
CWRB15000	9000L	0.6	15 r/min	75 KW	8200
