LAN: | 1lan/2lan optional; | CPU: | J1900 Quad Core; |
Place of Origin: | Guangdong China; | Key Feature3: | WIFI; |
Key Feature2: | OEM/ODM; | Warranty: | 3Year; |
Processor Type: | mini pc barebone system; | Power supply: | 12V/5A or 12V/3A; |
Model Number: | X6620; | Com Port: | 6*USB+2*RS232(optional 6*RS232); |
Key Words: | industrial computer; | Type: | pc; |
Selling Units: | Single item; | Package Preview: | https://sc01.alicdn.com/kf/HTB1u0a6acfrK1RkSnb4760HRFXaV.png_640x640.png; |
Key Feature1: | linux mini pc server; | Products Status: | Stock; |
Single package size: | 33.5X24X7.5 cm; | Dimensions(mm): | 23.5x19.5x3.2cm; |
Brand Name: | Sharerdp; | Processor Main Frequency: | 2.0Ghz; |
Single gross weight: | 2.2 KG; |
Data sheet:
Processor number | Celeron Processor J1900 |
Number of cores | Quad core 4 thread |
Computer Memory type | SODIMM |
Computer Memory | 2GB 4GB 8GB DDR3 |
Computer Storage | 32GB 64GB 128GB 256GB SSD |
Interface ports | |
Number of USB2.0 port | 4*USB2.0,2*USB3.0 |
Number of output port | 2 |
Number of RJ45 port | 1 or 2,optional(OEM) |
Com port | 1 or 4,optional(OEM) |
LPT | 1,optional(OEM) |
Working Environment | |
Power consumption | 10 watt |
Power adapter | 12V 3A or 12V 5A |
Cooling system | Passive cooling without fan |
Operation system | 7 / 8.1 / 10 and Linux OS |
Device measurement | |
Device (H x W x D) | 235x195x32mm |
Weight (KGS) | N.W 1.35KG, G.W 2.2KG |
Material | Metal case |
VESA mount | Available |
Main Features:
1.Ethernet speed:10/100/1000Mbps auto adaptive
2.Working mode:Support 24*7 working mode
3.High compatible:Support MSATA up to 256GB;Compatible with all OS(include linux).
4.Special boot:Support PXE boot and auto power on boot ;Support Wake on LAN boot

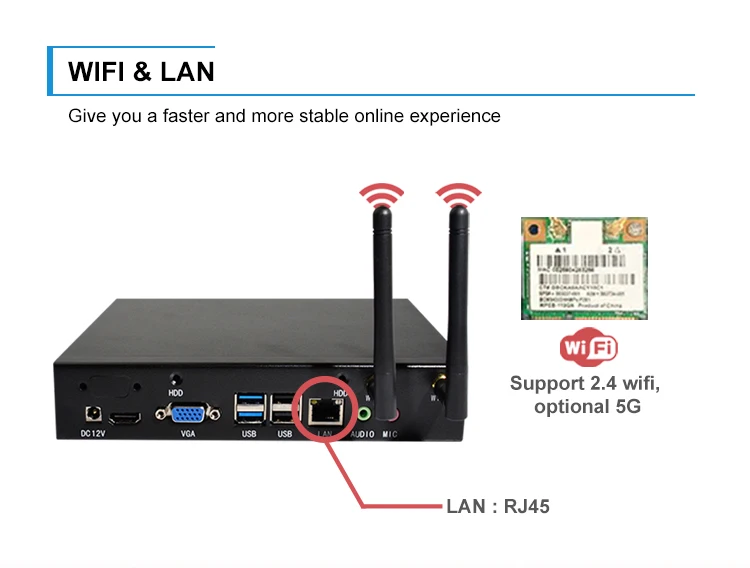

5.WIFI:Support 802.11n dual band 2.4/5.0ghz;Support Blue 4.0
6.Interface:The common design has 1*Com port,1*Lan port,4*USB2.0,2*USB3.0.We can OEM or ODM,so,the interface can be:4*com port(or 6*Com port),the Lpt port alse can be added.if you need OEM/ODM,please contact us.

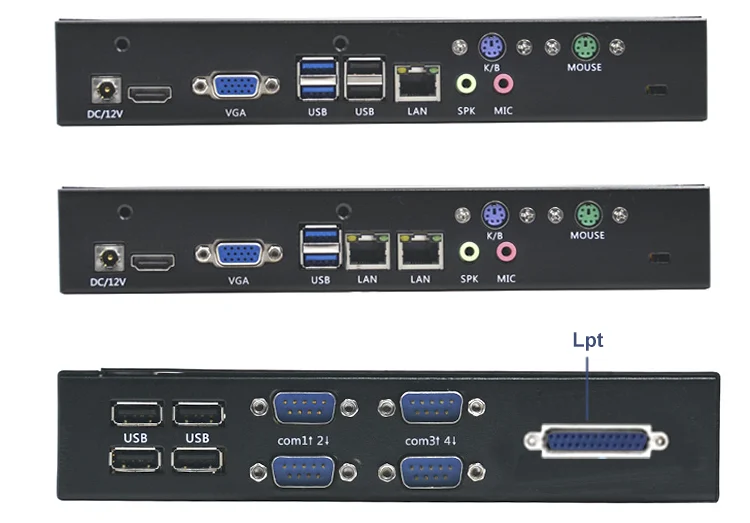

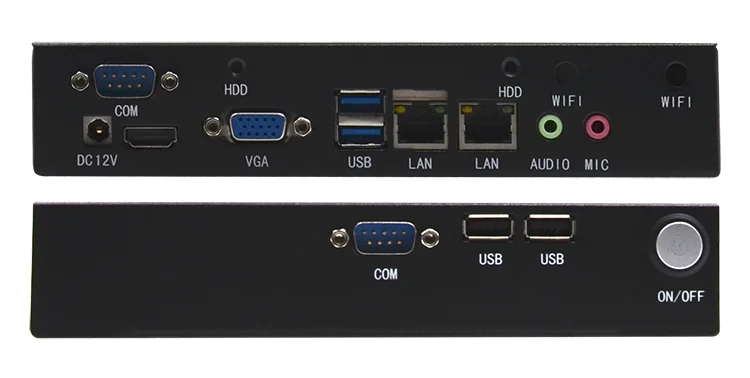

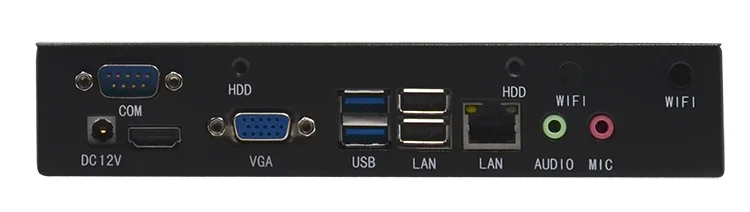

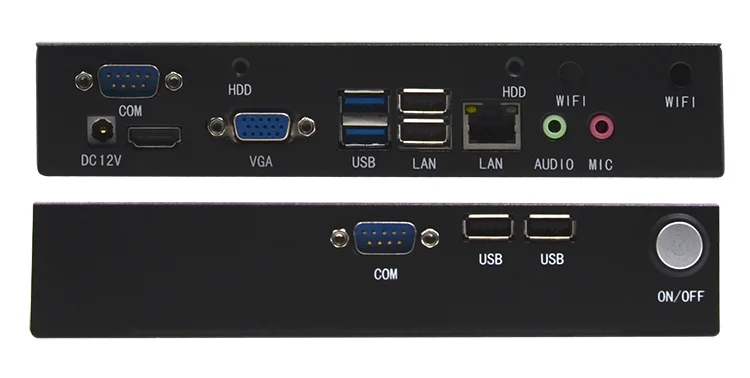

the common design:(1*com,1*lan):
L2:(2*com,1*lan,6*USB)
L3:(2*com,2*lan,4*USB)
L4:(4*com,1*Lpt,1(2)*lan,4*USB)
Applied in Digital signage, Networking, Automation,KIOSK, Advertising Machine, Self-service Terminal,Electronic Whiteboard, ATM, POS/Retail, Surveillance,Parking Pay Station, Channel System, Medical electronic etc.
Tips:
The price is for barebone system(barebone system is not including ram,ssd,wifi) of the common design,We support OEM/ODM,if you have any other question,pls contact us.
Different Power Plug for Different Country.
ABOUT SHIPPING
1.Within 48HOURS dispatch your order.All items can be shipped by DHL,UPS,FEDEX,EMS,China Post,HK post and Singapore Post.All come with the TRACKING NUMBERS.
2.Orders will dispatch within 48 HOURS after payment cleared.
3.Important note:Items shipped by China Post,HK post and Singapore Post,reach most countries within 10 to 20 days.But to RUSSIA will takes over 30days as for LOCAL CUSTOMS CHECKING delay,if you don't receive the item after 40 days,please contact us,we'll investigate and solve the delivery problem.
A:we support OEM/ODM service.
B:The product is available for a three-year warranty.
C:Best quality and competitive price.
D:Protection of your sales area, ideas of design and all your private information.
E:We can provide a variety of logistics and transportation methods, and guarantee the fastest speed to transport to your side.
D:Your inquiry related to our products or prices will be replied in 24 hours.
