Certification: | CE/CCC/FCC/ROHS/ISO9001/ISO14001; | Products Status: | Stock; |
Port: | Shenzhen; | Display Port: | 1*DP,1*HD,1*VGA; |
RAM: | 2GB/4GB/8GB/16GB/32GB DDR4 2133MHz; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Place of Origin: | Guangdong China; | CPU: | Core I3 6100,core I3 7100; |
COM: | 1*RS232; | OPS: | 80pin-OPS; |
Supply Ability: | 10000 Piece/Pieces per Month; | Resolution: | 4K(3840*2160); |
Brand Name: | SHARERDP; | product application: | ATM,POS,KIOSK,Security,Surveillance,ect; |
Chipset: | HD Graphics; | Size: | 195*180*42mm; |
Type: | OPS mini pc; |
CPU overview | |
Processor number | Core i3 6100 or other CPU you can contact us to custom |
Core/thread | Dual core 3.7GHz |
CPU cache | 3MB |
Processor Graphics | Integrated HD graphics |
Computer Memory | 4gb/8gb/16gb/32gb RAM DDR4 |
Computer Storage | 64gb/128gb/256gb SSD,500G/1T HDD |
Interface ports | |
Number of USB port | 3*USB2.0,3*USB3.0 |
Display port | DP,HD,3840*2160 |
WIFI | M.2 WIFI |
RJ45 port | 1*RJ45 port,10/100/1000Mbps auto adaptive |
OPS | 80 pin (extensible standard OPS daughter card) |
COM | 1 |
Working Environment | |
Power consumption | 51 watt |
Cooling system | Active cooling without fan |
Operation system | wi-n7 / 8.1 / 10 & Linux |
Device measurement | |

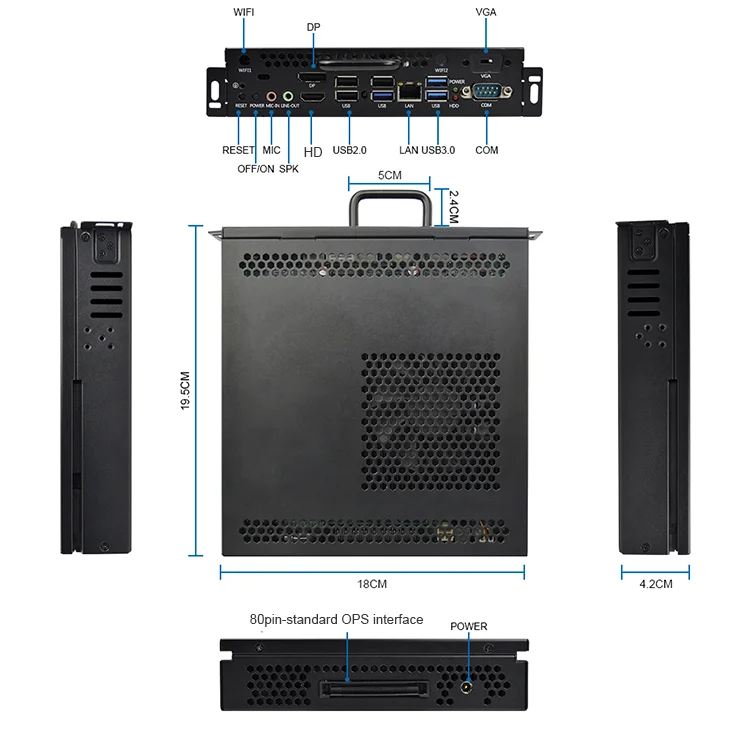

Device (H x W x D) | 195*180*42mm |
Weight (KGS) | G.W 2KG |
Material | metal case |
Special boot | Support PXE boot and power on boot |
Audio | 30Hz-18000Hz |
Power port | DC 19V 6.3A |
Product Packing List:
Series | NO. | Material list |
1 | 1 | Sharerdp mini pc |
2 | 1 | 19V 6.3A Power adapter |
3 | 1 | CD(with drivers) |
4 | 1 | User manuel |
5 | 1 | Bracket(set) |
6 | 6 | Screws |
7 | 5,10 | Units/carton |
tips1:The price is for barebone system(barebone system is not including ram,ssd,wifi),We support OEM/ODM,Looking forward to your message.
tips2:The same motherboard, the same shell, the CPU can be celeron j1900,j1800,core i3, i5, i7, welcome you to consult and customize.click here
Different Power Plug for Different Country.
ABOUT SHIPPING
1.Within 48HOURS dispatch your order.All items can be shipped by DHL,UPS,FEDEX,EMS,China Post,HK post and Singapore Post.All come with the TRACKING NUMBERS.
2.Orders will dispatch within 48 HOURS after payment cleared.
3.Important note:Items shipped by China Post,HK post and Singapore Post,reach most countries within 10 to 20 days.But to RUSSIA will takes over 30days as for LOCAL CUSTOMS CHECKING delay,if you don't receive the item after 40 days,please contact us,we'll investigate and solve the delivery problem.
Shenzhen Share Technology Co.,Ltd was established in 2006, located in ShenZhen city of China.Being an important member of Cloud Computing Association.
Now Share has an ownedautomatic production line, it contains SMT machine which
specialized in production of cloud computer, assembly & testing workshop.
After 11 years of continuous development and innovation, now three main product line are ARM cloud terminal, MINI PC & All In One PC with low power consumption,
all achieves a number of patents and leading-edge technology in current market.
Share Technology offers professionally different industry solutions, such as cloud terminal embedded educational software,hotel software,and customized cloud terminal for
Call centers and enterprises, dedicated SOP terminal for production line, etc.
Share Technology offers client hardware ODM & OEM for all domestic and international IT factory or companies which are specialized in professional development of virtualization.
1.Q:Can you put my brand name (logo) on these products?
A:Yes, We can support OEM/ODM service, Over 50 units can support printinf logo for you, over 100units can support Customized shell and packing box,the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: you confirm the design draft.
4. We start produce it.
2.Q: How much do I need to pay for your OEM service?
A: You should pay extra fee,but we will return the fee to you when your order over 100 pieces.
3.Q: What payment method do you accept?
A: T/T, Western Union, PayPal and so on.
4.Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
5.Q: What is the lead time of your products?
A: 3-7 days for sample, 15 working days for a large quantity.
6.Q:Do you have FCC,CE,ROSH Certificates?
A:yes,we have all of them.
7.Q:Do you have aftersales services?
A:Yes,we can provide after -sales services, once you have any questions, you can consult with our software and hardware engineers.
8.Q:What is your warranty?
A:All of our devices warranty is for 3 years.
9.Q:What is your MOQ?
A:MOQ=1 piece
10.Q:Are you manufacture?
A: yes, we are manufacture and our factory located in Shenzhen Pingshan District.
