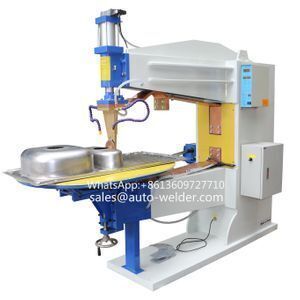

FN-100K Stainless Steel Sink Rolling Seam Welding Machine

Supplier: Guangzhou Dragon Welding Co., Limited
Region: Guangdong, China
Contact: Ms June Huang
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	1000 Set/Sets per Month;	Condition:	New;
Payment Terms:	T/T,Western Union;	Place of Origin:	Guangdong China;
Brand Name:	DRAGON WELDING;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certification:	CE Certificate;	Warranty:	12 months;
Welding Diameter:	80-1000mm;	Weight:	500KGS;
Usage:	metal seam welding;	Dimensions:	17508001500mm;
Packaging Detail:	Standard Export Flywood Case;	Welding Mode:	seam welding;
Power(W):	100KW;	Voltage:	380V 50Hz or custom made;
Port:	Guangzhou Port;	Blue and white:	Seam Welding;
seam welder:	tank seam welder;	Forming Time:	1s-10s adjustable;

FN Series Stainless Steel Rolling Seam Welding Machine

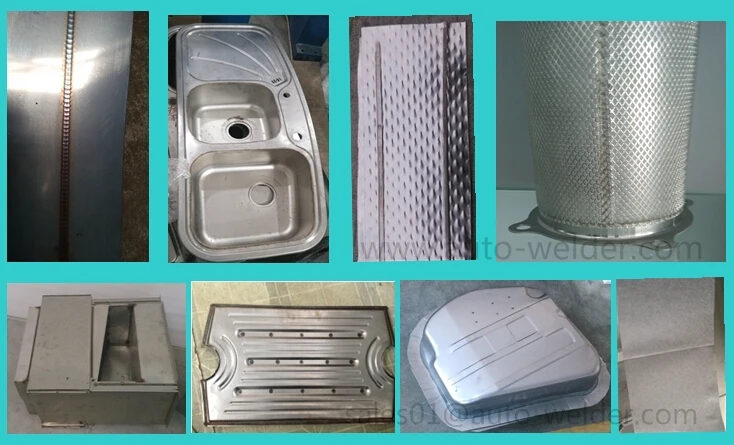

Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.

FN Series Stainless Steel Rolling Seam Welding Machine

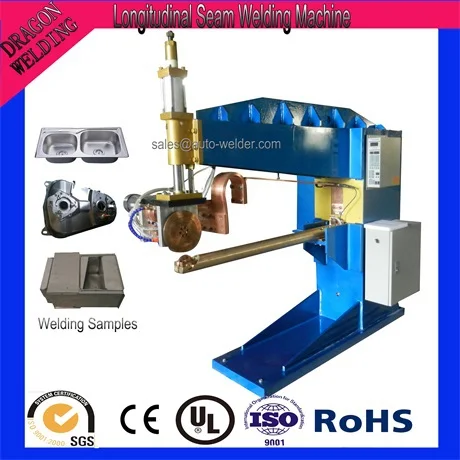

1.There are two standard Types: Transversal Seam Welding Machine and Longitudinal Seam Welding Machine;

2.Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to

change the direction of upper welding wheel and the lower welding head and change the welding arm;

3.Welding wheel adopt three-phase infinitely adjustable-speed drives,convenient to welding speed adjusting,the two welding wheels have the same tangential speed;

4.Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel;

5.Driven one head and free the other head;

FN Series Stainless Steel Rolling Seam Welding Machine

Item Model	Rated Capacity	Rated Primary Voltage	Rated Frequency	Maximum Short Current	Electrode Stroke	Welding Speed	Electrode Pressure	Motor Power Source	Motor Power	Cooling Water Flow	Weight
Item Model	KVA	V	Hz	A	mm	M/min	KN	V	W	L/min	Kg
FN-50	50	380	50/60	15000	50	0.6-2	2.5	3-380V	90	30	500
FN-75	75	380	50/60	18000	50	0.6-2	3.9	3-380V	150	30	650
FN-100	100	380	50/60	20000	50	0.6-2	4.7	3-380V	150	30	880
FN-150	150	380	50/60	26000	50	0.6-2	6.1	3-380V	150	40	1050
FN-200	200	380	50/60	31000	50	0.6-2	6.1	3-380V	150	40	1250

Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three phase Secondary Rectifier Spot Welder,Wire Mesh Welding Machines,

Sink Producing Line,Automatic Argon Arc Seam Welding Machines,High/Ultrasonic/Medium Frequency Induction Heating Machines,and other automatic equipments.

The delivery time for standard machine is about 15-20days.(By Sea,by Air or by Express Way can be choosed)

Q1: What does your factory produce ?

A: We produce and export all kinds of automatic welding machine and induction heating machine. We also can design and develop the welding machines according to your requirements.

Q2: What about your standard delivery date ?

A: Usually 15-20 days. Our company provide just-in-time delivery

Q3:Do your factory sale directly ?

A:YES,it is our factory sale directly,competitive price with high quality and excellent after-sale service.

Our quality products have been export to many countries,such as Germany,Russia,USA,Canada, Argentina,Peru,Turkey,Iran,Bazil,Spain,South Asia and Middle East countries.

Q4: Do you have CE Certificate?

A: YES,we have.

Q5: Can you export machines by your factory?

A; YES,we can.

Q6: Where are your factory?

A: Our factory located in Panyu District , Guangzhou City, Guangdong Province, China.

Q7: Will you send engineer to help installing the welding machine?

A : Yes, if need,we can send our engineer to go to your factory to help installing our welding machine, train the workers and make sure the welding machine running well before he leave.

Q8: If the machine get damaged, what can I do ?

A: In the guarantee time (1 year) , we will send the spare parts to you for free. And provide the technical consultant for anytime.if more terrible,we can send our engineers to your factory.

We will provide same good after-sale service as the pre-sale service, any of your questions,

we will be replied within 12 hours.
