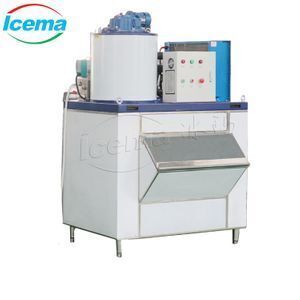

ICEMA brand high quality 2000kg flake ice machine

Working Principle:

Icema flake ice machine working principle is the closed loop heat exchange of refrigerant.Outside water flow into the water tank, then pumped into the water distribution pan evenly flows down the inner wall of evaporator. The refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat by exchanging heat with the water on the wall.As the result, the water flow over the surface of inner evaporator wall sharply cools down to below the freezing point and freezes into ice instantaneously.When the ice on the inner wall reaches a certain thickness,spiral ice blade driven by reducer cut the ice to piece.Thus ice flake forms and falls into the ice storage bin under ice machine,stocking for using.The water not turning into ice will drop in the water baffle at the bottom of evaporator and flow into the water tank for recycling.

Suitable industry:

1. The raw materials storing and precooling of the food processing plant;

2. The lives stock precooling, fresh keeping, freezing and transporting after killing in the meat processing plant;

3. The reaction kettle of chemical plant, raw material cooling and the box-type and environment cooling;

4. Concrete cooling during mixing, concrete adding in the construction industry;

5. Ice factory;

6. The deep-sea fishing and seafood fresh keeping;

7. The mine cooling.

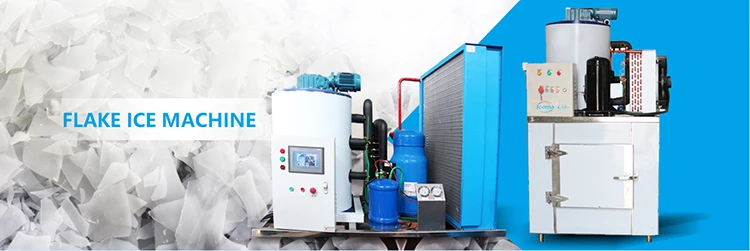

FLAKE ICE MACHINE

 Flake Ice Advantages

1. Flake Ice: Dry, pure, powderless, not easy to block, flake ice thickness is about         1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

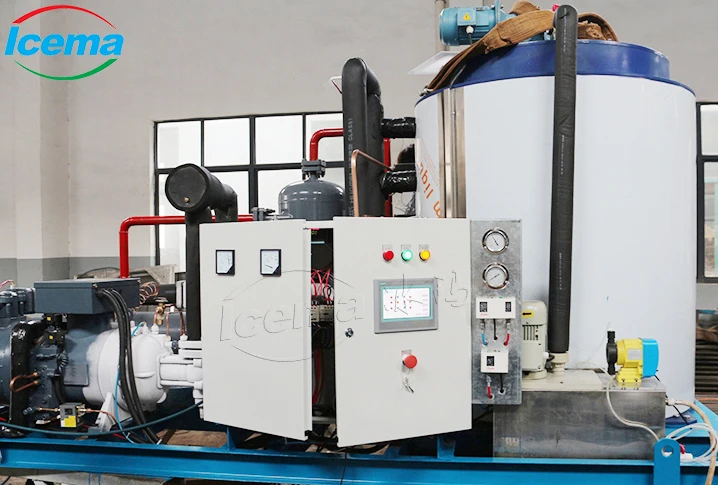

2. Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components. Meanwhile, it can portect the flake ice machine when there are water shortage, ice full, H/L pressure alarm, and motor reversal.

3. Evaporator drum: Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running at the lowest power consumption.

4. Application: The flake ice machine has been applied in refreshing vegetable,fruit,

foodstuff in supermarket.

WHY CHOOSE US!

Shanghai Icema refrigeration technology co., LTD. Is a technology-based enterprise that pay attention to user experience. According to customer requirements, company can produce intermediate,low and ultra low temperature refrigeration system, covering cooling, keeping fresh, cold storing, storing, freezing,quick freezing and other fields.We can control:

-Technical scheme

-High quality
-Price reasonable
-Punctual delivery
