Germany type worm drive hose pipe clip zinc plated with high quality

Supplier: Shanghai Jian & Mei Industry And Trade Co., Ltd.
Region: Shanghai, China
Contact: Ms Xarella Huang
Price: $1300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

OE NO.:	no;	Brand name:	JM;
Hose pipe clip head mark:	JM;	Warranty:	24 Months;
Hose pipe clip certificate:	ISO9001:2008;	Supply Ability:	150 Ton/Tons per Month Germany type worm drive hose pipe clip zinc plated with high qua;
hose pipe clip:	hose clip;	Sample day:	5-20 days;
Port:	Shanghai;	Model Number:	Germany type pipe clips;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,flexible payment terms;	Usage:	Germany type;
Hose pipe clip material:	w4, stainless steel, w1, w2, w5;	MOQ:	1000 KGS;
Place of Origin:	Shanghai China;	Size:	bandwidth: 9mm or 12mm;
Brand Name:	JM;	Type:	Germany type;
Bandwidth:	9mm or 12mm;	Car Make:	all;
Material:	Stainless Steel;	Name:	Germany type worm drive hose pipe clip zinc plated with high quality;
Packaging Detail:	Neutral Package(25kgs/carton,36cartons/pallet) or according to the Customers' Demand;

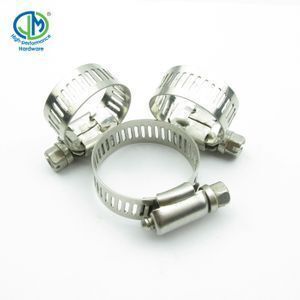

Germany type worm drive hose pipe clip zinc plated

Hose pipe clip Type: Germany type worm drive hose clamp/ hose clip

Hose pipe clip Material:W1-Galvanized steel

W2-The screw is galvanized steel, others are AISI 300 series stainless steel

W4-All AISI 300 series stainless steel

W5- All AISI 316 series stainless steel

Hose pipe clip Bandwidth: 9mm or 12mm

Hose pipe clip Connection mode: welding

Hose pipe clip Certificate: ISO9001:2008

Usage:

Germany type screw band worm drive hose clamp widely applies in the vehicle, ship, construction, fire control, textile, the gasoline engine, the diesel engine, sprinkler irrigation machinery,mechanical equipment, the hose outlet gas and heating, is necessary for all kinds of hose interface tighten connecting fittings.

Bandwidth	Size		Free Torque Nm	Break Torque Nm
Bandwidth	mm	Inch	Free Torque Nm	Break Torque Nm
9mm	8-12	0.31”-0.47”	W1-1 W2-1 W4-1 W5-1	W1-3.5 W2-5.5 W4-5.5 W5-5.5
	10-16	3/8”-5/8”
	12-20	0.47”-3/4”
	16-25	5/8”-1”
	20-32	25/32”-1 1/4”
	25-40	0.98”-1.57”
	32-50	1 1/4”-2”
	40-60	1 9/16”-2.36”
	50-70	2”-2 3/4”
	60-80	2.36”-3.15”
	70-90	2 3/4”-3.54”
	80-100	3.15”-3.94”
	90-110	3.54”-4.33”
	100-120	3.94”-4.72”
	110-130	4.33”-5.12”
	120-140	4.72”-5.51”
	130-150	5.12”-5.91”
	140-160	5.51”-6.3”
	150-170	5.91”-6.69”
	160-180	6.3”-7.09”
	170-190	6.69”-7.48”
	180-200	7.09”-7.87”
	190-210	7.48”-8.27”
	200-220	7.87”-8.66”
	210-230	8.27”-9.06”

Bandwidth	Size		Free Torque Nm	Break Torque Nm
Bandwidth	mm	Inch	Free Torque Nm	Break Torque Nm
12mm	16-25	5/8”-1”	W1-1 W2-1 W4-1 W5-1	W1-5 W2-6.5 W4-6.5 W5-6.5
	20-32	25/32”-1 1/4”
	25-40	0.98”-1.57”
	32-50	1 1/4”-2”
	40-60	1 9/16”-2.36”
	50-70	2”-2 3/4”
	60-80	2.36”-3.15”
	70-90	2 3/4”-3.54”
	80-100	3.15”-3.94”
	90-110	3.54”-4.33”
	100-120	3.94”-4.72”
	110-130	4.33”-5.12”
	120-140	4.72”-5.51”
	130-150	5.12”-5.91”
	140-160	5.51”-6.3”
	150-170	5.91-6.69”
	160-180	6.3”-7.09”
	170-190	6.69”-7.48”
	180-200	7.09”-7.87”
	190-210	7.48”-8.27”
	200-220	7.87”-8.66”
	210-230	8.27”-9.06”
