CE EPA Approved Popular 1T Mini Excavator

Product details
Power(W):10000;UNIQUE SELLING POINT:EPA Engine;
After-sales Service Provided:Video technical support,Online support;Hydraulic Valve Brand:Beifang;
Certification:CE;Place of Origin:Shandong China;
Bucket capacity:0.025m3;Maximum Digging Height:2610mm;
Moving Type:Crawler Excavator;Port:Qingdao;
Swing Motor:Sanyang BMRS-250;Supply Ability:999 Piece/Pieces per Month;
Traveling motor:Sanyang BMT245;Keywords:Mini Excavator Digger;
Type:Hydraulic Crawler Excavator;Bore stroke:Single cylinder, fan cool;
Packaging Detail:A full container or by wooden box 20'GP container load 6 sets.;Brand Name:HT;
Engine:Briggs & Stratton;Hydraulic Pump Brand:Tianji;
Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Construction works ,Energy & Mining;Engine power(HP/rpm):13.5/3600;
Condition:New;Displacement:6.8ml/r;
Attachments:Grabber,auger,ripper,narrow bucket,plain bucket,rake;Maximum Digging Depth:1650mm;
Rated Speed:1.5km/hour;Hydraulic Cylinder Brand:Liyuan;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Max Digging Radius:1330mm;
Engine Brand:Briggs & Stratton;Main pump:Tianji G5-6;
Operating Weight:900kg;Warranty:1 Year;

Introduction of mini hydraulic excavator

CE EPA Approved Popular 1T  Mini Excavator

The 0.9 ton small excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair. Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users. Wide applicability. The digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities. Small size and special design make it possible to work in an environment where large excavators cannot be constructed.

Main Features

1.Because 0.9 ton mini excavator volume is reduced compared with the traditional excavator, it is also reduced in terms of fuel consumption, so the improvement of energy saving is the optimization of environmental protection projects.
2.High usage rate, wide range of use environment, high efficiency, these are also the advantages of small excavators, in the construction team, efficiency and quality is undoubtedly in the first place.
3.Noise pollution is also a source of pollution.Small excavators also do a good job in reducing noise, which is conducive to promoting the safety and efficiency of workers.





We also have 0.8 ton , 1 ton,1.6 ton, 1.8 ton,2 ton and 2.2 ton mini Excavator for you to choose!



For detail , please contact whats-app and wechat: +8615653795070, or email cnmc005(@)chnmach.com



Parameter of mini hydraulic excavator

 CE EPA Approved Popular 1T  Mini Excavator

Weight

900kg

Digging bucket capacity

0.025cbm/120kg

Bucket width

380mm

Engine

Briggs & Stratton

Bore stroke

Single cylinder, fan cool

Rated power

13.5HP/3600r/min

Displacement

420CC

Bore stroke

70x55

Main pump

Tianji G5-6

Displacement

6.8ml/r

Swing motor

Sanyang BMRS-250

Traveling motor

Sanyang BMT245

Travel speed

1.5km/h

MAIN DEMENSIONS

Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm

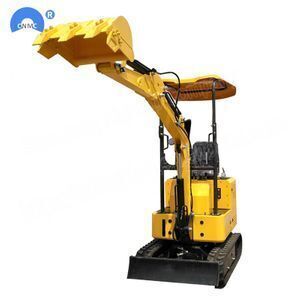

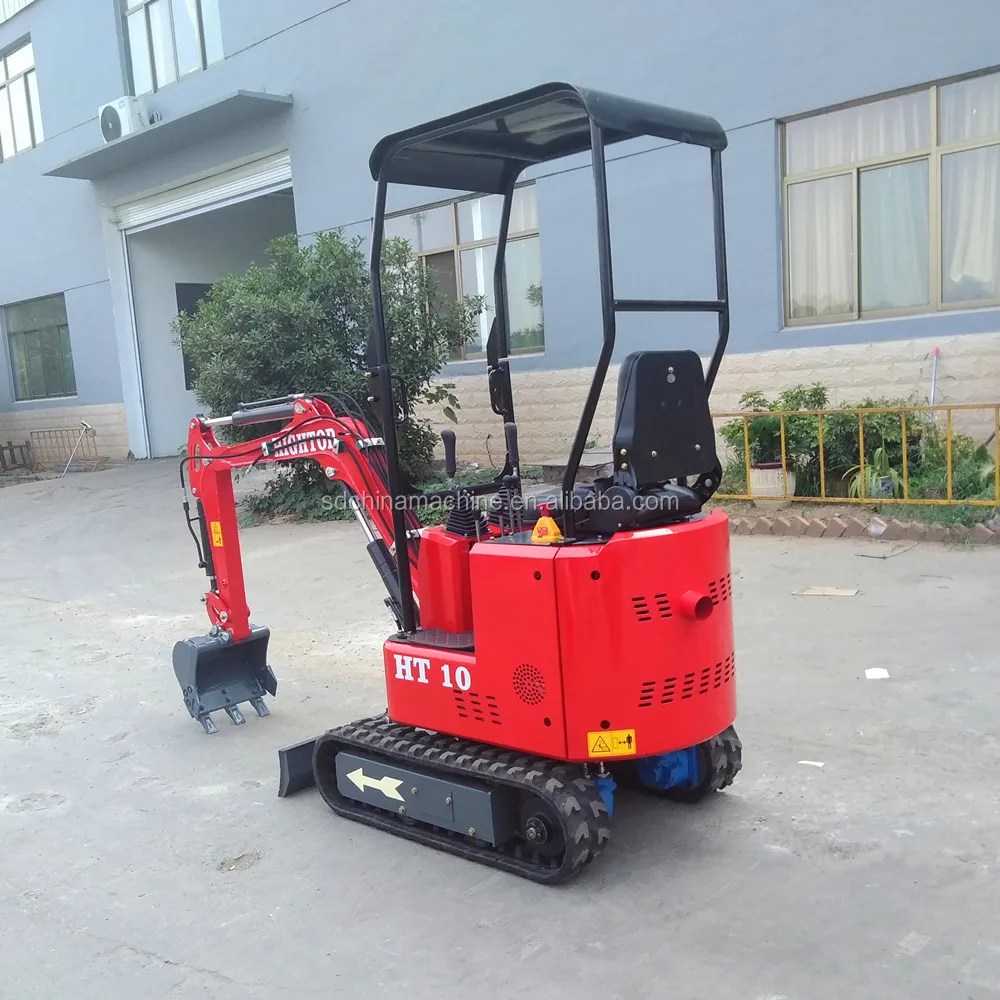

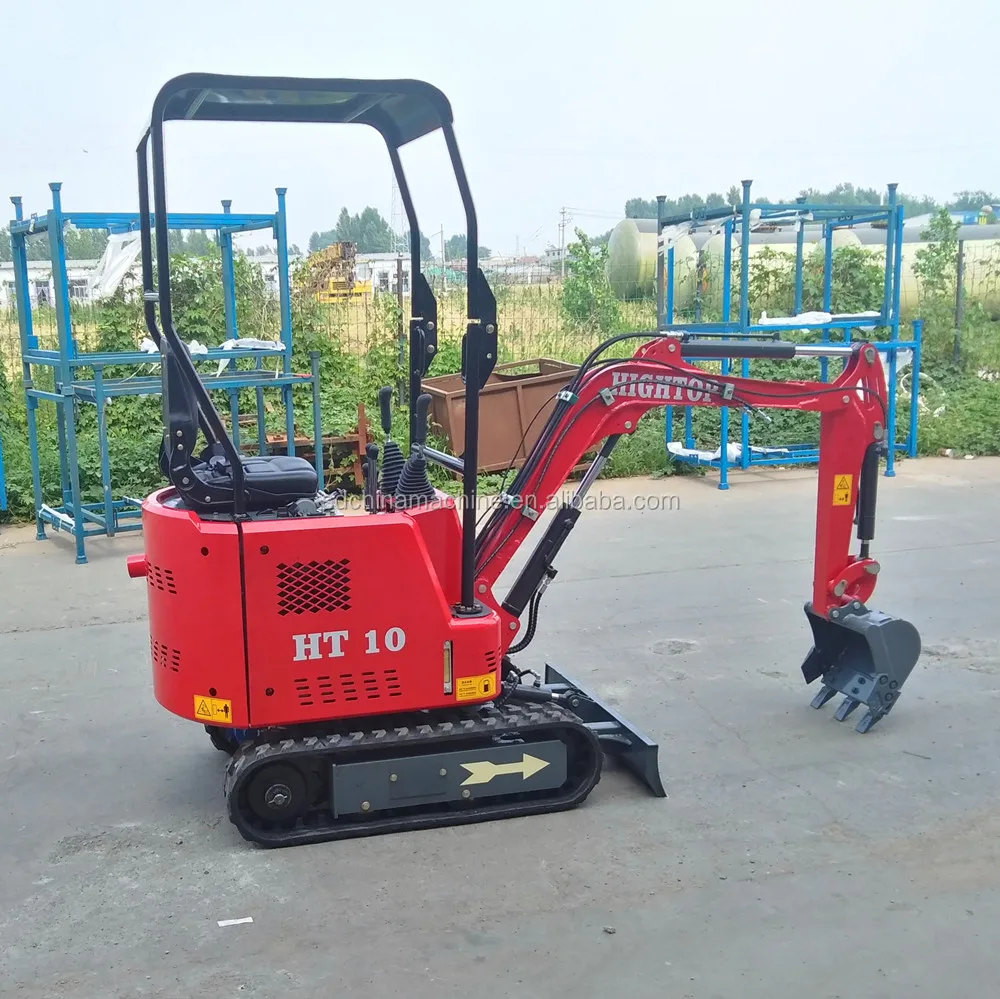

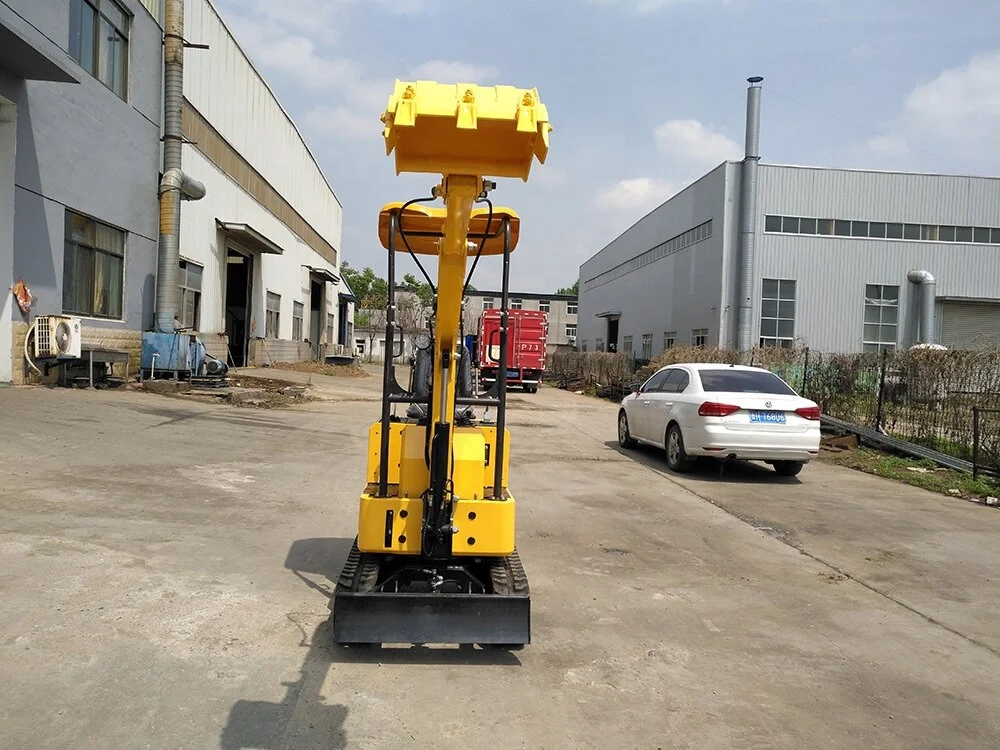

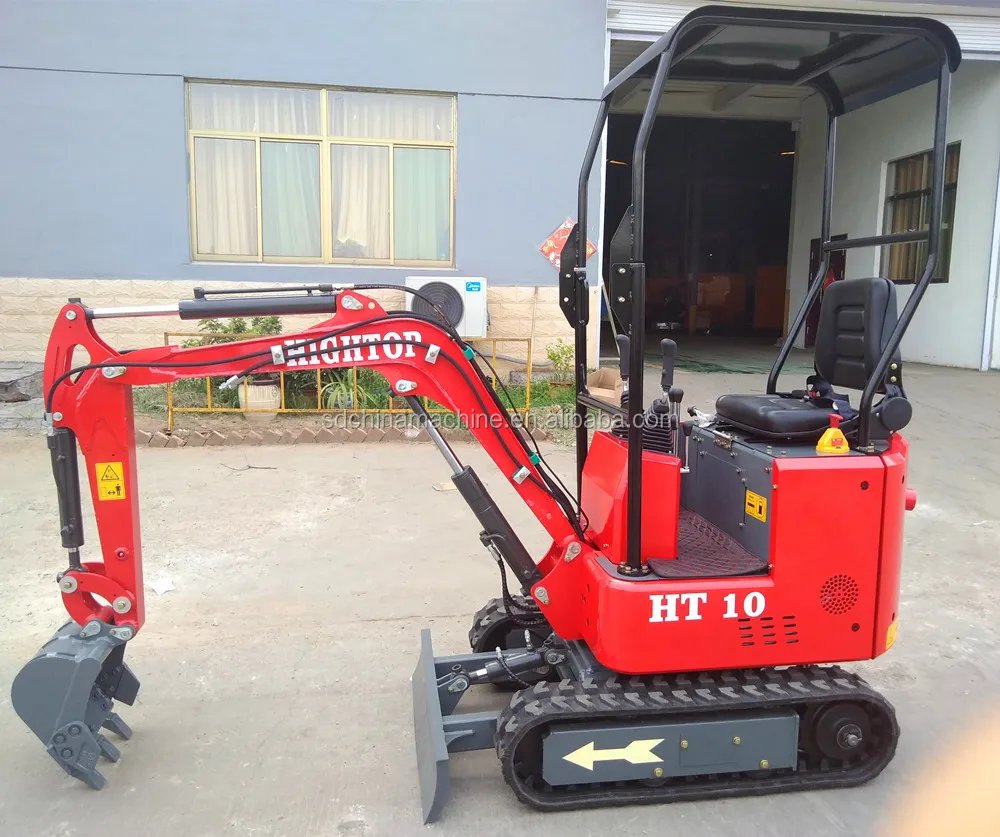

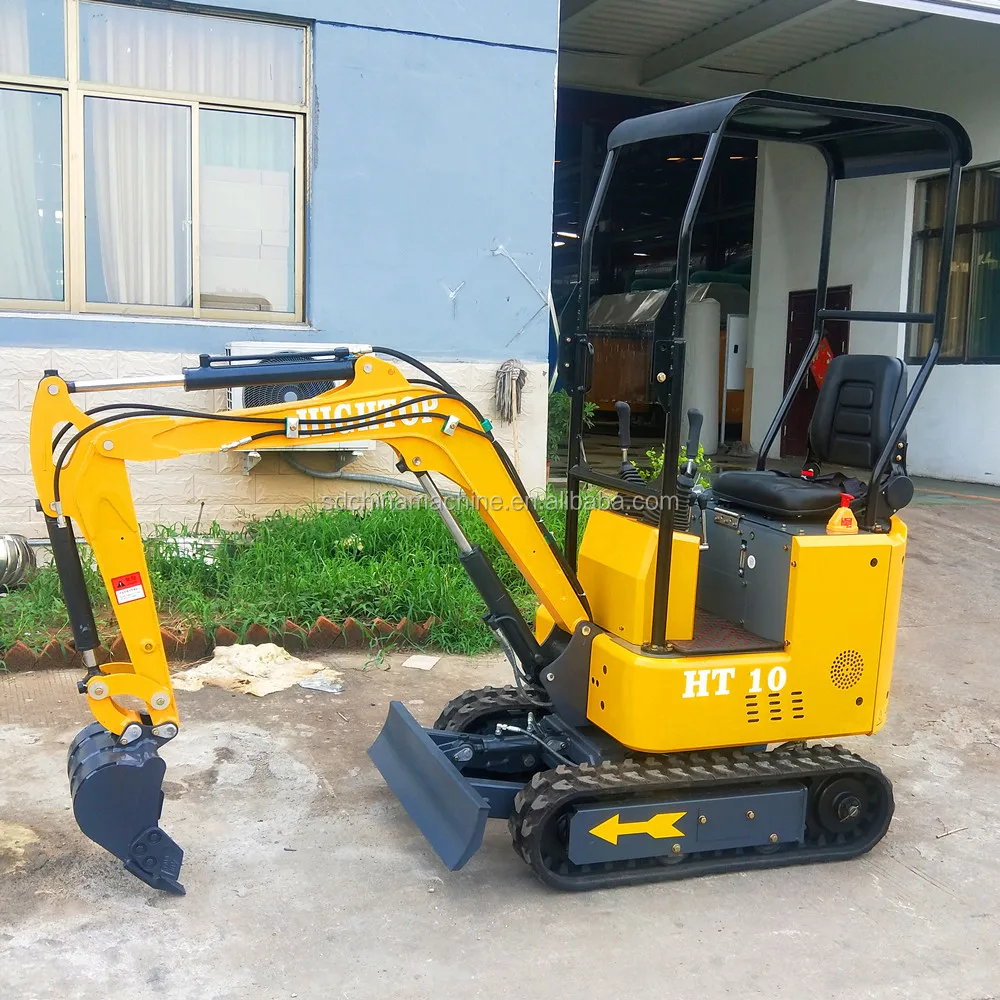

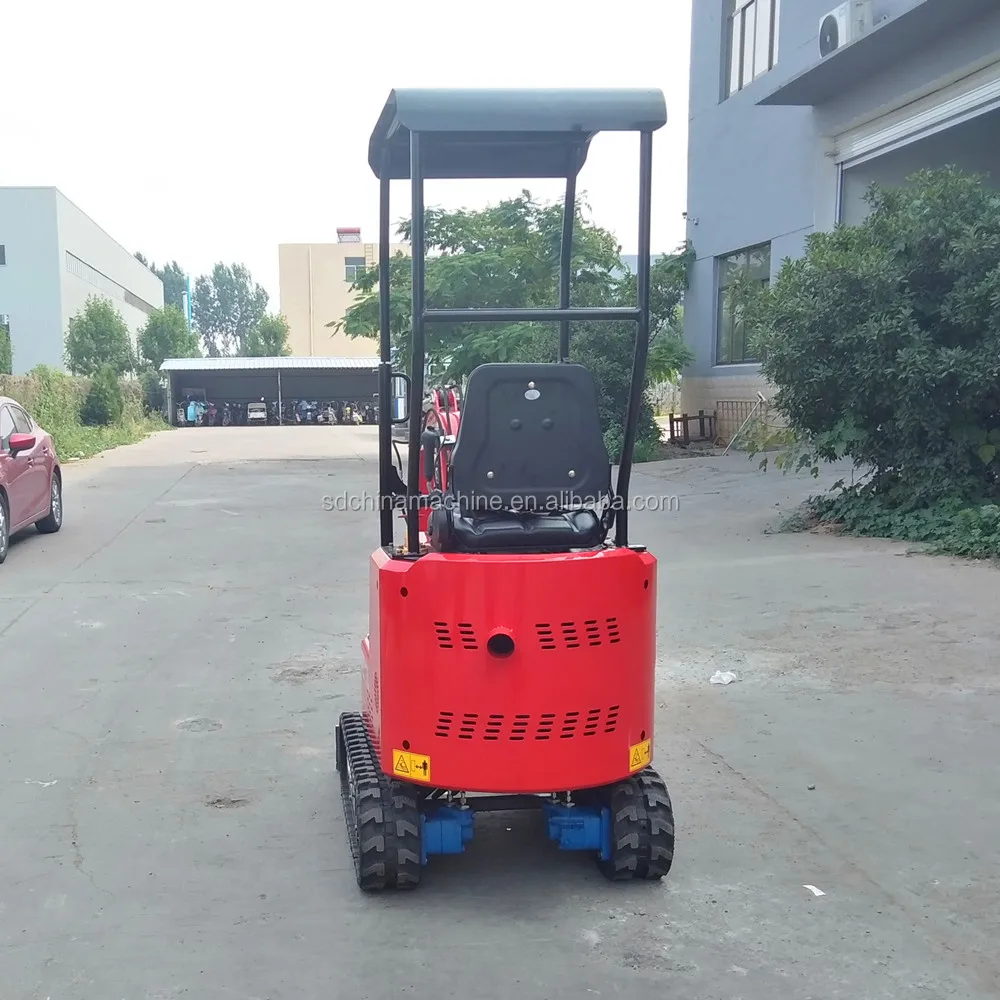

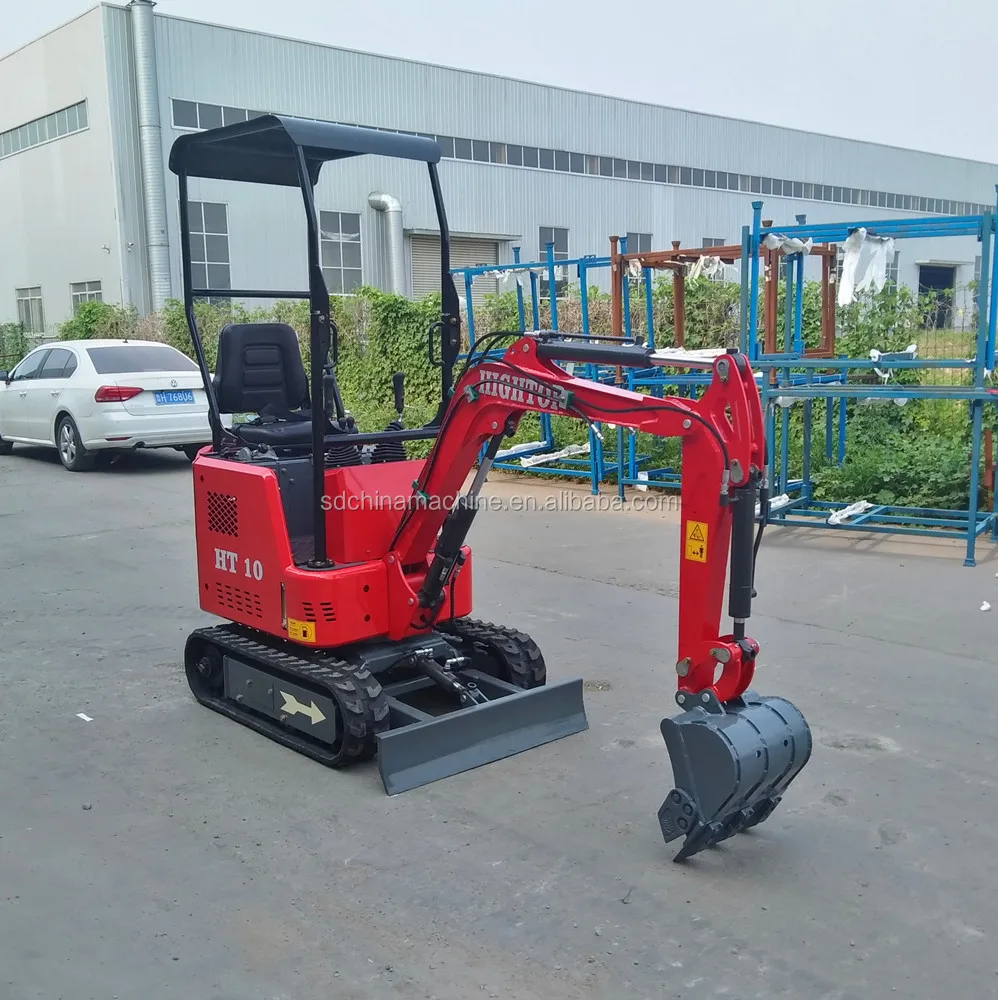

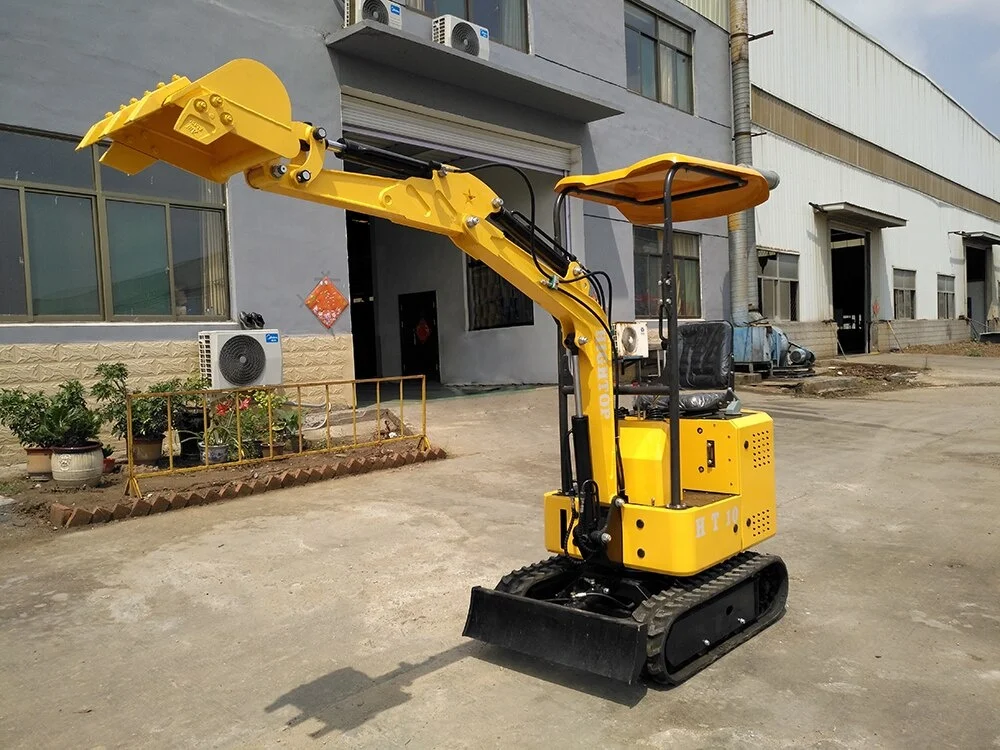

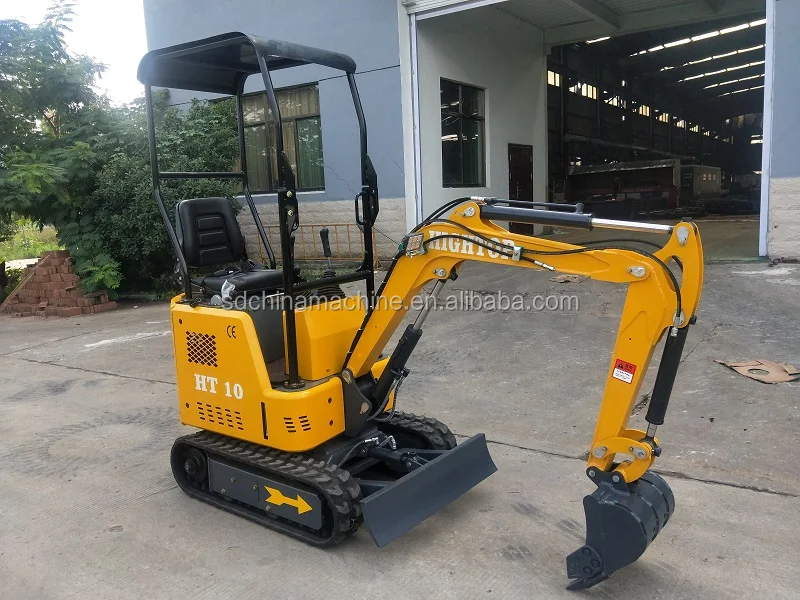

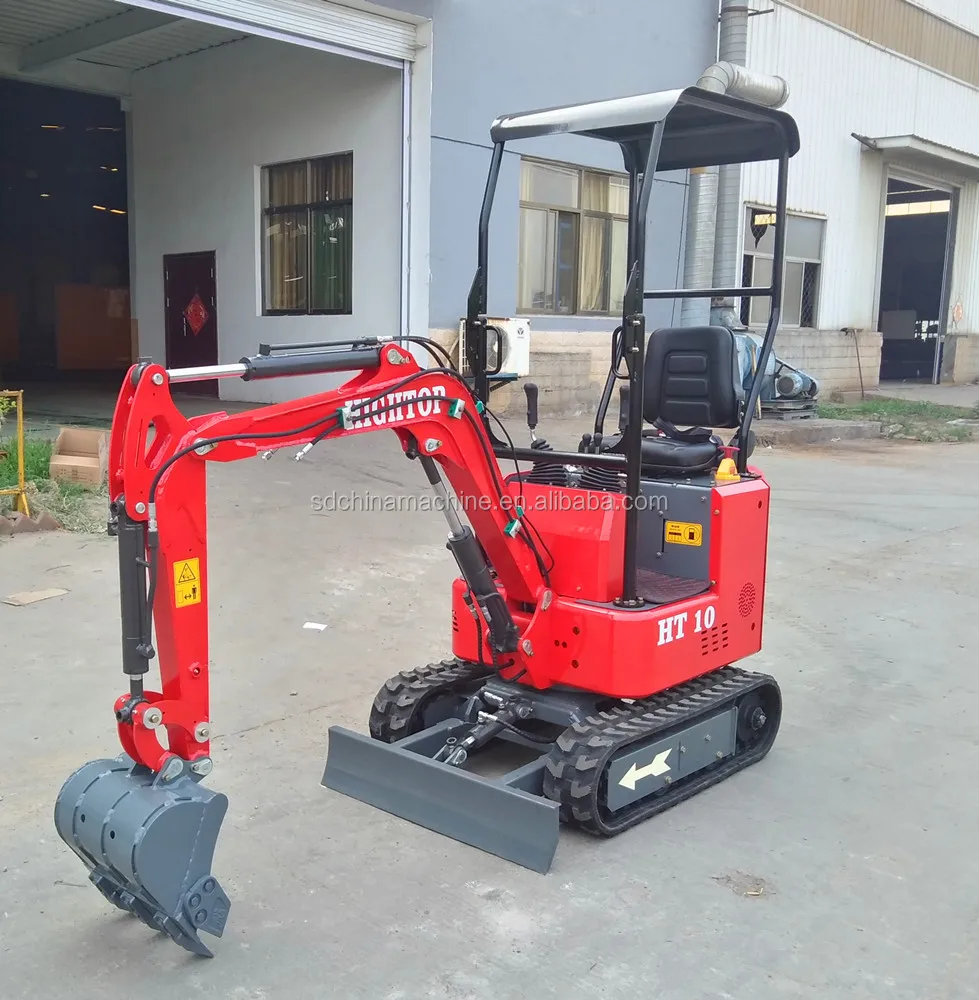

Images of mini hydraulic excavator

CE EPA Approved Popular 1T  Mini Excavator



About Us

Jining China Machinery Co. ,Ltd, established in 1980, is an important and a large construction engineering equipment joint-stock enterprise Group in China, It has several wholly-owned subsidiaries, company headquarters is located at National High-tech Zone, Shandong province.

We have CE Certificate,SGS Product Certificate, ISO9000 Quality Control Certificate and BV Supplier Certificate.Our machine had win much good reputation through its quality and nice performance.

Nowadays Our products have been exported to 127 countries and regions over the world.
