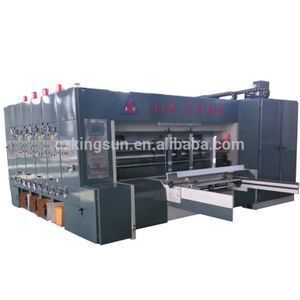

Fully automatic Corrugated box printer slotter diecutter , printing slotting machine/corrugated sheet printing machine

Supplier: Cangzhou Kingsun Imp.& Exp. Co., Ltd.
Region: Hebei, China
Contact: Ms linda liu
Price: $19000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,carton box printing and slotting die cutter machine;
Min passing paper size:	400X860MM;	Total power:	43KW;
Gear thickness:	50mm;	Work speed:	150pcs/min;
Max passing paper size:	1450 X(1800/2000/2200/2400/2600/2800MM);	Type:	carton box packing machine;
Woking power:	25KW;	Printing colour:	Multi colour;
Machine size:	WALL BOARD TO WALL BOARD SIZE 2000/2200/2400/2600/2800/3000MM;	Machine design speed:	180pcs/min;
Port:	Tianjin port;	Thickness of the plate:	3.2---7.2;
Supply Ability:	30 Set/Sets per Month Printing slotting diecutter machine;	Packaging Detail:	Machine covered with plastic sheet or wooden cases , packed in 20" and 40" container;

Fully automatic Corrugated box printer slotter diecutter , printing slotting machine

Product Description

1.Function for corrgated box printer slotter diecutter machine

This corrugated box printer slotter diecutter madhinc makes from 3ply and 5ply corrugated cardboard to falt caton box shape after printing , slotting and die cutter ,below pictures help you to understand this machine

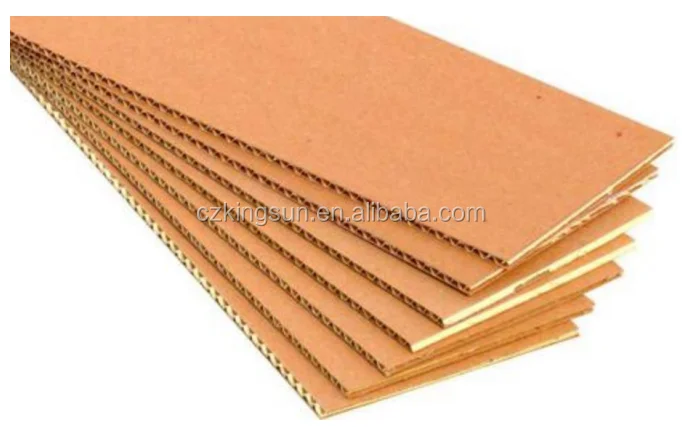

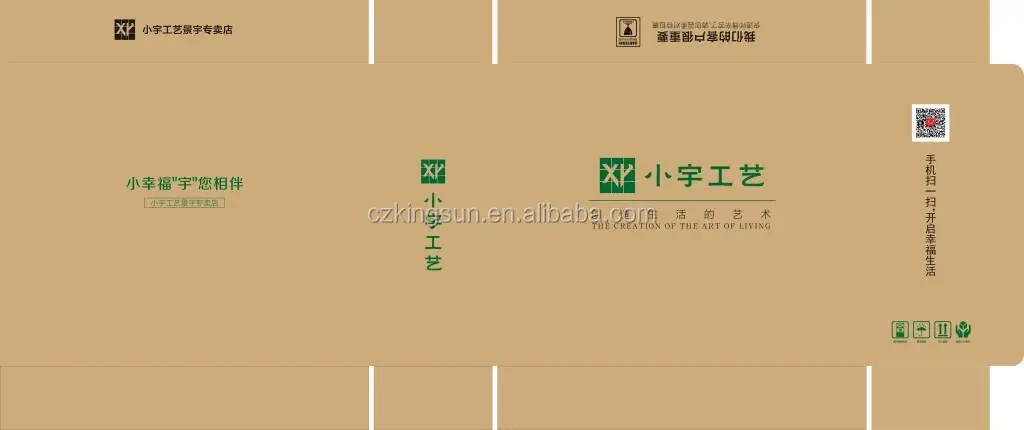

Corrugated carboard Flat carton box after printer slotter and diecutter

→

Note : Any colour and any design is ok , just tell us your request , we will offer you price accordingly

2.Corrgated box printer slotter diecutter machine main structure and its description

Name

Description

Lead Feeding part

1.electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.

2. drive shaft with friction clutch, to avoid misuse and damage to the machine.

3.pneumatic interlock device.

4.The host motor starts the protection device. (The machine is not locked, the host can not start running)

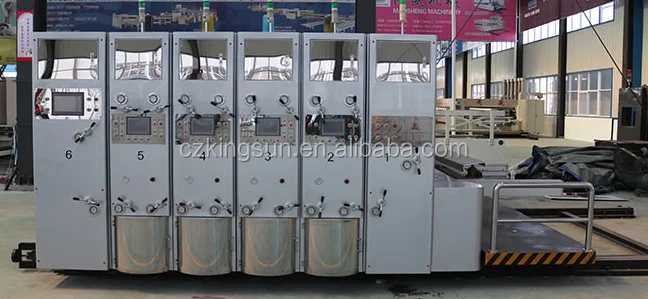

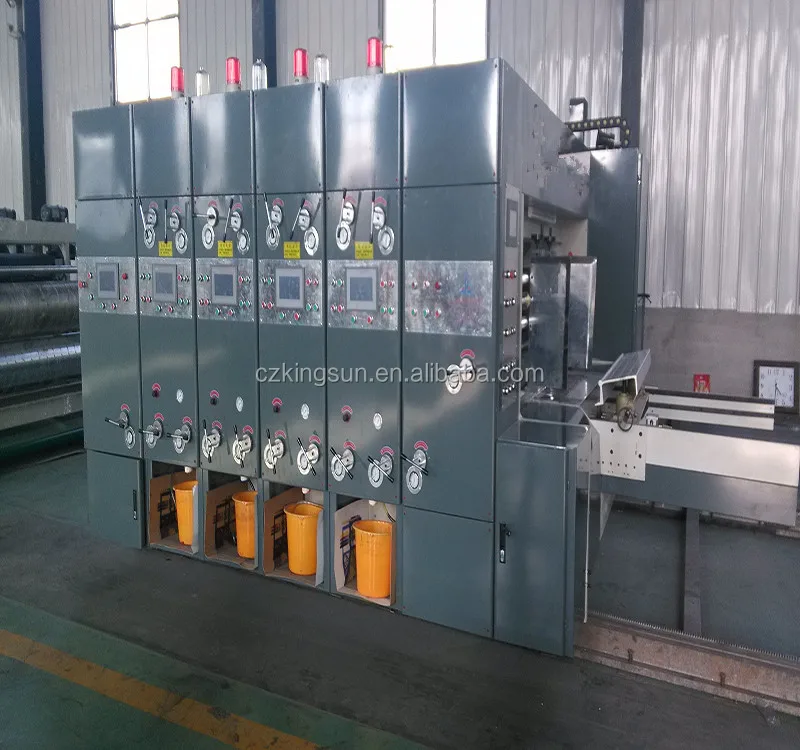

Printing part

1.printing roll (plate roll)

2.printing press roll

3.upper and lower rollers feeder

4.Steel anilox roller rubber roller set ink system

5.phase adjustment mechanism

6.ink circulation

7.printing phase fixing device

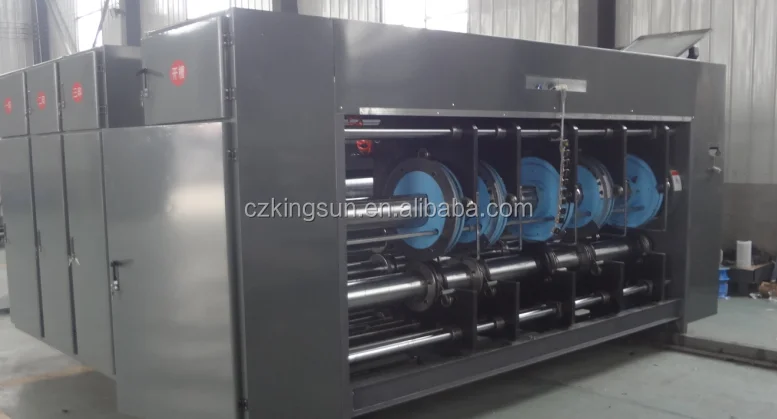

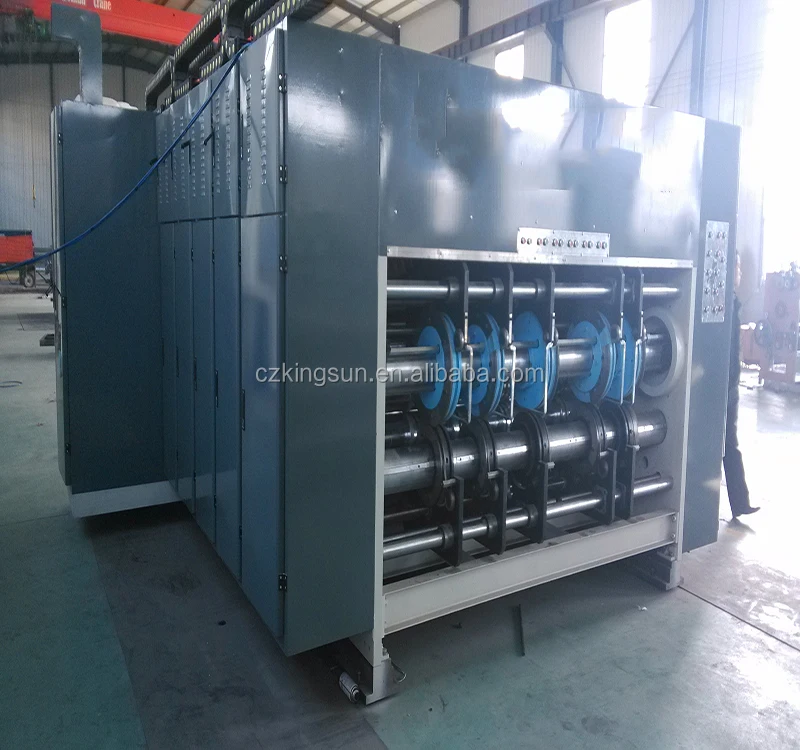

Slotting part

1.single shaft sructure

2.Slotter phase adjustable by computer control 360 degree adjust ( run stop can be adjusted ) ,machine can stock order , manual adjust horizontal 20mm

3.Up slot knive shaft diameter 176mm , knives seat diameter 465mm

4.Crease rolelr shaft diameter 110mm , crease wheel diameter 180mm

5.Bottom knives shaft diameter 156 ,knives diameter 280mm

6.The knives and crease wheel same time movement electrical control ( input the box size ,automatic adjust)

7.Slot knives 7mm use ally steel material after heattreatment ,grinding , teeth model knvies ,

8.Can make the holes as your request

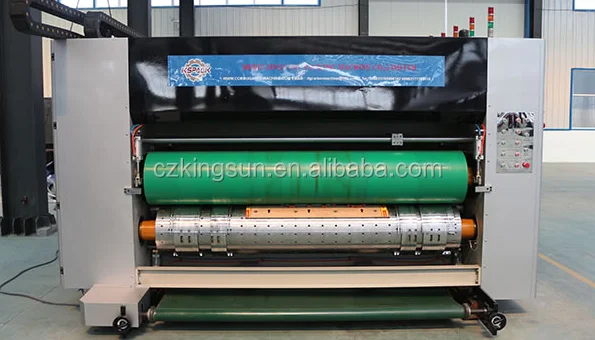

Die cutting
