Control Box Type: | Bench, Box; | Usage: | Power; |
Brand Name: | Huazheng; | Packaging Detail: | Power Frequency AC DC Test Transformer/High Voltage Electrical Testing Transformer 1.HS code is 8504210000; 2.Wooden box with foam inside, 3.No fumigation,not influence the delivery; 4.Standard of CE ISO IEC. 5.Customer OEM packing is also available 6.Can be delivered by air,ship. 5. **PCS/1*20'ft, too much models and different size.; |
Voltage Booster Type: | Insulation Oil, Dry, Inflatable; | Port: | Tianjin/Shanghai/Qingdao/Ningbo/Shenzhen/Hong Kong/Testing Transformer; |
Coil Structure: | Toroidal; | Supply Ability: | 600 Set/Sets per Month AC DC Testing Transformer; |
Oil Testing Transformer: | Oil Test Transformer; | Capacity Range: | 1.5KVA---200KVA; |
Coil Number: | Autotransformer; | Name: | AC DC Testing Transformer/Electrical Testing Transformer; |
Phase: | Three; | 10KVA Testing Transformer: | HV Test Transformer; |
High Voltage Range: | 50KV----300KV; | 300kv Testing Transformer: | SF6 Testing Transformer; |
Model Number: | HV Testing Transformer; | Place of Origin: | Hebei China; |
Power Testing Transformer: | Distribution Transformer Testing Equipments; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
AC Test Transformer: | Inflatable Test Transformer; |
Classification:

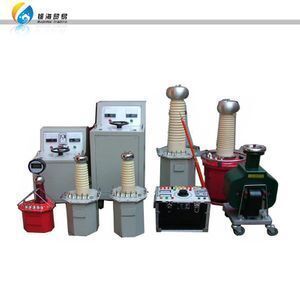

There are four kinds of high voltage testing transformer according to the medium points:
1. Oil-immersed high voltage transformer test: large capacity, cheap, convenient maintenance, mainstream products.
2. Inflatable high voltage test transformer : interrupter resistance, and light weight.
3. Dry typehigh voltage testing transformer: light weight, light volume, can run backward, price expensive.
4.Series type high voltage testing transformer: small volume, low voltage, light weight, easy to transport and install.
Feature:

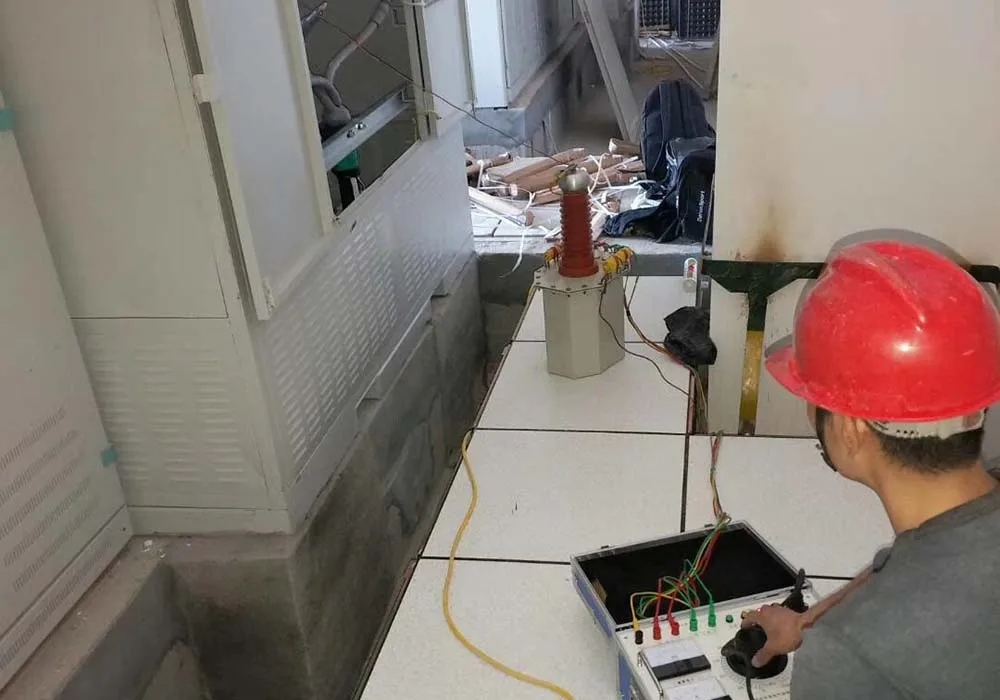

AC hipot tester series Testing Transformer is power plants, power supply bureau and research institutions and other users to do the AC voltage test basic test equipment, by the standards of the State Bureau of Quality Supervision , for a variety of electrical products, electrical components, insulation material dielectric strength test , etc. , the insulation level assessment of products under the provisions of the voltage , insulation defects were found in the sample , and measure the ability of over-voltage.
Parameter:
Technical parameters of YDJ (G) series alternating current test transformers
Model | Capacity (KVA) | Output Voltage (KV) | Output Current (mA) | Low Frequency Voltage input | Change | Tempera- ture(℃)raised/ 30 minute | |
V | A | ||||||
HZSY(G)-1.5 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
HZSY(G)-3 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
HZSY(G)-5 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
HZSY(G)-10 | 10 | 50 | 200 | 220/380 | 50/26 | 500 | 10 |
HZSY(G)-20 | 20 | 50 | 400 | 380 | 53 | 500 | 10 |
HZSY(G)-30 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
HZSY(G)-40 | 40 | 50 | 800 | 380 | 105 | 500 | 10 |
HZSY(G)-50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
HZSY(G)-5 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
HZSY(G)-10 | 10 | 100 | 100 | 200/380 | 50/26 | 1000 | 10 |
HZSY(G)-20 | 20 | 100 | 200 | 380 | 53 | 1000 | 10 |
HZSY(G)-30 | 30 | 100 | 300 | 380 | 79 | 1000 | 10 |
HZSY(G)-40 | 40 | 10 | 400 | 380 | 105 | 1000 | 10 |
HZSY(G)-50 | 50 | 100 | 500 | 380 | 132 | 1000 | 10 |
HZSY(G)-100 | 100 | 100 | 100 | 500 | 263 | 1000 | 10 |
HZSY(G)-150 | 150 | 100 | 1500 | 500 | 300 | 1000 | 10 |
HZSY(G)-200 | 200 | 100 | 2000 | 500 | 400 | 1000 | 10 |
HZSY(G)-250 | 250 | 100 | 2500 | 380 | 500 | 1000 | 10 |
HZSY(G)-20 | 20 | 150 | 133 | 380 | 53 | 1500 | 10 |
HZSY(G)-30 | 30 | 150 | 200 | 380 | 79 | 1500 | 10 |
HZSY(G)-50 | 50 | 150 | 333 | 380 | 132 | 1500 | 10 |
HZSY(G)-100 | 100 | 150 | 666 | 500 | 263 | 1500 | 10 |
HZSY(G)-150 | 150 | 150 | 1000 | 500 | 300 | 1500 | 10 |
HZSY(G)-200 | 200 | 150 | 1333 | 500 | 400 | 1500 | 10 |
HZSY(G)-250 | 250 | 150 | 1666 | 380 | 500 | 1500 | 10 |
HZSY(G)-30 | 30 | 200 | 150 | 380 | 79 | 2000 | 10 |
HZSY(G)-50 | 50 | 200 | 250 | 380 | 132 | 2000 | 10 |
HZSY(G)-100 | 100 | 200 | 500 | 380 | 263 | 2000 | 10 |
HZSY(G)-150 | 150 | 200 | 750 | 500 | 300 | 2000 | 10 |
HZSY(G)-200 | 200 | 200 | 1000 | 500 | 400 | 2000 | 10 |
HZSY(G)-250 | 250 | 200 | 1250 | 500 | 500 | 2500 | 10 |
HZSY(G)-30 | 30 | 250 | 120 | 380 | 79 | 2500 | 10 |
HZSY(G)-50 | 50 | 250 | 200 | 380 | 132 | 2500 | 10 |
HZSY(G)-100 | 100 | 250 | 400 | 380 | 263 | 2500 | 10 |
HZSY(G)-150 | 150 | 250 | 600 | 500 | 300 | 2500 | 10 |
HZSY(G)-200 | 200 | 250 | 800 | 500 | 400 | 2500 | 10 |
HZSY(G)-250 | 250 | 250 | 1000 | 500 | 500 | 2500 | 10 |
Heibei Huanhai Import & Export Trading Co.,Ltd was established in year of 2014. It is specialized in manufacturing transformer oil tester, hipot tester ,protection relay testers and other testing equipments. The company has many foreign trade sales consultants with 10 years of experience , providing customers with the best service solutions and products. Our products with ISO 9001 and CE certified are exported to many countries and regions all over the world. The company is in the same group as Huazheng electric.
We insist on customer orientation and provide you with high quality products, reasonable prices, timely delivery and efficient service. We are willing to work with global clients for joint development and create value and success for our customers continuously.
We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.
We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester, transformer test class, lightning arrester test class, comprehensive test class.
From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
