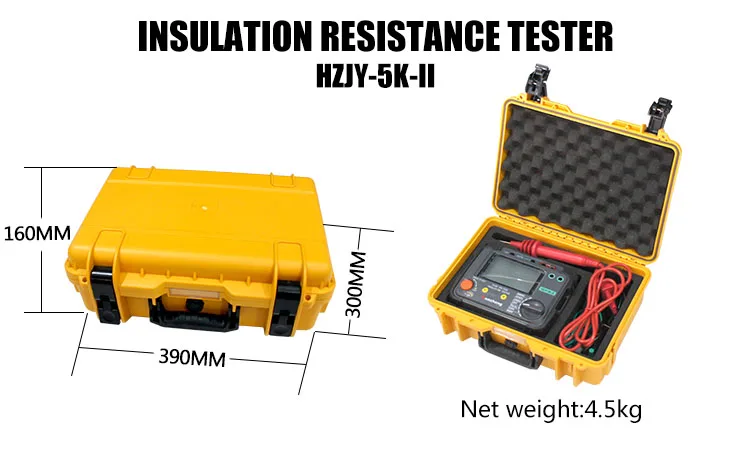

Packaging Detail: | 5000V high voltage portable Insulation Resistance Tester megohmmeter packaging: wooden box, according to customs requirement; | Dimensions: | 264mm(Width)*107mm(Height)*350mm(Depth); |
Testing Voltage: | 5KV; | Measuring Range: | 0.1M-400G; |
Port: | Any port is ok/Express; | Testing voltage range: | 0.5Kv ,1KV,2.5KV,5KV; |
testing range: | 0.1M-200GΩ; | humidity: | 20-80%.; |
Supply Ability: | 800 Unit/Units per Month 5000V High Voltage Digital Megohmmeter; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Trade Assurance; |
name: | 5000V high voltage portable Insulation Resistance Tester megohmmeter; | Power supply: | 180-270VAC ,50Hz/60Hz±1%; |
Display Type: | Digital Only; | Working temperature: | -10-40℃; |
Place of Origin: | Hebei China; | MOQ: | 1; |
Model Number: | HZJY-5kv-II; | Operating Temperature: | 0~40; |
Testing temperature: | -45℃-125℃; | after service: | yes; |
Accuracy: | ±10%; | Brand Name: | Huazheng; |
Delivery Detail: | Shipped in 7 days after payment; | Accuracy Class: | 0.05%; |

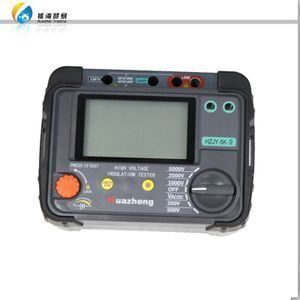

MODLEHZJY-5K-IIare high voltage insulation resistance testers with 5-range(HZJY-5K-II)for measuring insulation resistance.
Designed to meet the following safety standards:
IEC 61010-1,-2-30 (CAT III 600V/CAT IV 300V Pollution degree 2)
IEC 61010-031 (Requirements for hand-held probes)
With auto-discharge function
When an insulation resistance like a capacitive load is measured, electric charges stored in capacitive circuits are automatically discharged after the measurement. Discharge can be checked on the voltage monitor.
Backlight function to facilitate working at dimly illuminated location or at nighttime work.
Bar graph display
Audible and visible LIVE circuit warning
With Auto-power off function
The instrument automatically will turn itself off if there is no function change or button press for 10 min to conserve battery power.
Auto-measurement and display of PI (Polarization Index), DAR(Dielectric Absorption Ratio)
Rated voltage | 250V | 500V | 1000V | 2500V | 5000V |
MeasuringRange | 0.1~100.0MΩ | 0.1~99.9MΩ 80~1000MΩ | 0.1~99.9MΩ 80~999MΩ 0.80~2.00GΩ | 0.1~99.9MΩ 80~999MΩ 0.80~9.99GΩ 8.0~100.0GΩ | 0.1~99.9MΩ 80~999MΩ 0.80~9.99GΩ 8.0~99.9GΩ 80~20000GΩ |
Display range | 0.1~100.0 MΩ | 0.1~1000 MΩ | 0.1M~2.00 GΩ | 0.1M~100.0 GΩ | 0.1M~2000 GΩ |
Open circuit Voltage | DC250V +10% ,-10% | DC 500V + 20%,-10% | DC 1000V + 20%,-0% | DC 2500V +20%,-0% | DC5000V +20%,-0% |
Rated Current |
|
| 1MΩ 1mA~1.2mA | 2.5MΩ 1mA~1.2mA | 5MΩ 1mA~1.2mA |
Short-circuit Current | 5mA±0.5mA | ||||
Accuracy | ±5%±3dgt | ±5%±3dgt±20% |
We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.
We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester, transformer test class, lightning arrester test class, comprehensive test class.
From the date of purchase within one year is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
Heibei Huanhai Import & Export Trading Co.,Ltd was established in year of 2014. It is specialized in manufacturing transformer oil tester, hipot tester ,protection relay testers and other testing equipments. The company has many foreign trade sales consultants with 10 years of experience , providing customers with the best service solutions and products. Our products with ISO 9001 and CE certified are exported to many countries and regions all over the world. The company is in the same group as Huazheng electric.
We insist on customer orientation and provide you with high quality products, reasonable prices, timely delivery and efficient service. We are willing to work with global clients for joint development and create value and success for our customers continuously.
