DY4100 Digital Grounding Resistance Meter Grounding Resistance Tester 0.01-2000 Ohms

Supplier: Baoding NCEL Electrical Technology Co.,Ltd
Region: Hebei, China
Contact: Mr Xiao Zhang
Price: $45.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Packaging Details:	box with foam	Data retention:	Yes
The function symbols show:	Yes	aspect:	15010070mm
Display type:	numbers only	Working LED indicators:	Yes
product name:	DY4100 Digital Grounding Resistance Tester	Standard accessories:	Ground lead, simple ground test lead, heavy duty oxford bag
Origin:	China	payment terms:	Western Union, T/T
Low battery warning:	Yes	Measuring range:	0.01Ω-2000Ω
weight:	about 680g	Test voltage:	0-30V
Operating temperature:	-20°C to 60°C	solve:	0.01Ω
model:	DY4100	brand:	TOEIC
Energy source:	AA1.5V6(UM3) 12V1

Product Description

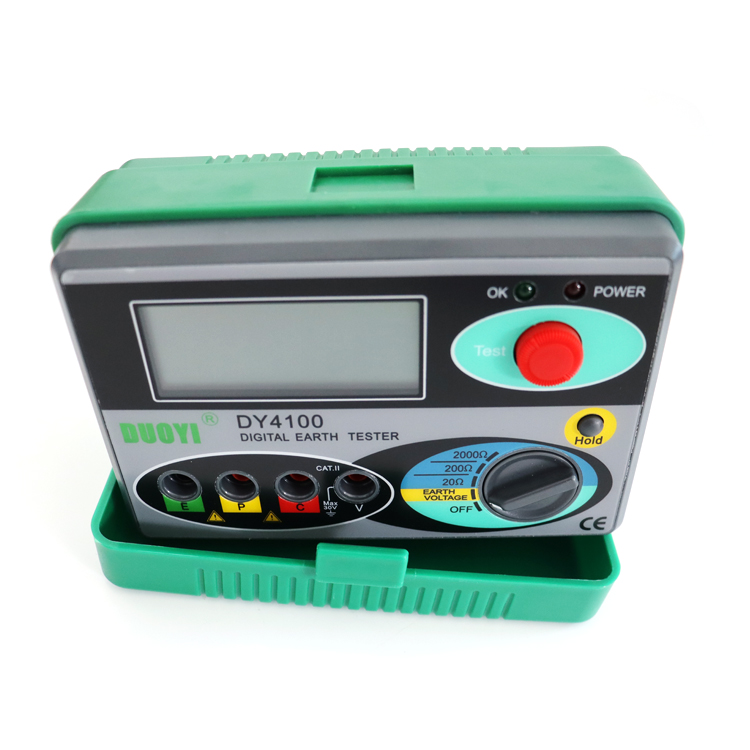

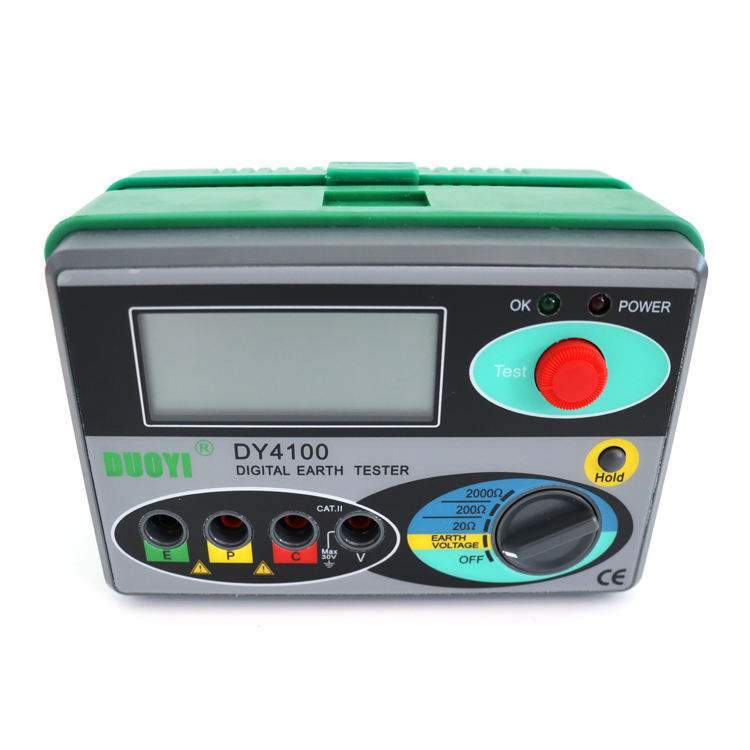

DY4100 Digital Grounding Resistance Tester
feature:
1. Ground resistance measurement from 0.01 ohm to 2000 ohm, 0.01 ohm resolution (three-level measurement 0-20 ohm, 0-200
Ω,0-2000Ω ±(2%+3)
2. Data retention, automatic shutdown, low battery warning
3. Comes complete with test leads, auxiliary ground stake, heavy duty carrying case and eight 1.5V AA batteries
usage:
Power measurement, postal measurement, railway measurement, communication base measurement

Specification

thing	value
birthplace	China
brand	TOEIC
model	DY4100
display type	numbers only
Measuring range	0.01Ω-2000Ω
Test voltage	0-30V
Operating temperature	-20°C to 60°C
aspect	15010070mm
product name	DY4100 Digital Grounding Resistance Tester
solve	0.01Ω
data retention	Yes
Working light	Yes
Function symbol display	Yes
low battery warning	Yes
energy source	AA1.5V6(UM3) 12V1
weight	about 680g
Standard accessories	Ground lead, simple ground test lead, heavy duty oxford bag
