Operating temperature: | 0°C to 40°C | Packaging Details: | 1 piece/color box, 10 pieces color box/inner box, 100 pieces/carton Carton size: 540 x 360 x 500mm or packed according to customer's requirements. |
aspect: | 225mm X 135mm X 81mm | model: | MS5202 |
Certificate: | RoHS Directive | Measuring voltage: | DC voltage |
power supply: | Eight 1.5V AA batteries | Supply capacity: | 10000 pieces per month |
Origin: | Guangdong, China | Measuring range: | 0-2000 MΩ / 1000-100000 MΩ (auto range) |
Security Level: | Class II 1000V | Accuracy class: | 0.1Ω |
Display type: | Simulation only | Test voltage: | 2500V±5% |
payment terms: | wire transfer, paypal | port: | Hongkong |
brand: | Mustek |

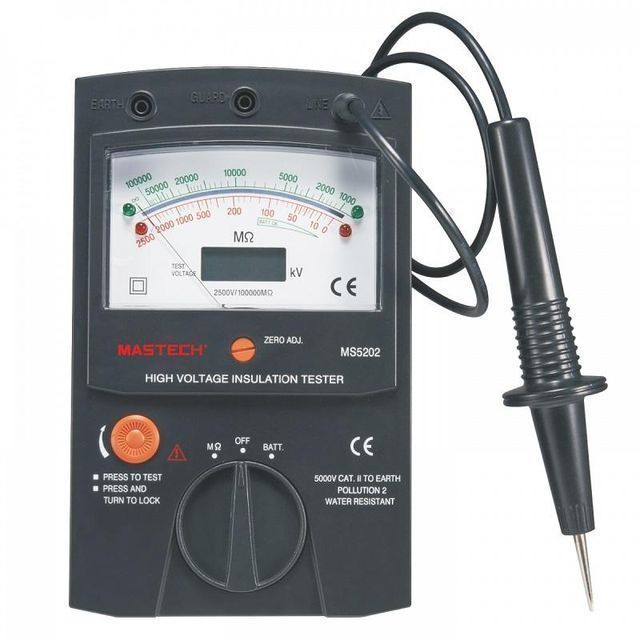

MS5202 - High Voltage Insulation Tester
This meter is a portable professional measuring instrument, which can be used for high-voltage insulation test in the maintenance and repair of cables, transformers, generators, switches and other industrial equipment. This meter has an automatic range, the meter uses a double-scale point needle, within the measurement range of 0-100GΩ, the meter can automatically switch between high and low ranges according to the resistance value. The blinking of the LED will instruct the user to take a reading from the tick marks of the same color.
Features of MS5202 High Voltage Insulation Tester
• Internal battery test
• Low battery indicator
• Constant measurement lock
General technical indicators of MS5202 high voltage insulation tester
• Power supply: 8 1.5V AA batteries/1 9V 6F22 battery
• Product Dimensions: 225mm x 138mm x 81mm / 8.86" x 5.3" x 3.19"
• Product Weight: 1200g/2.75lbs
• Certificate: RoHS
• Safety rating: CAT II 1000V
MS5202 High Voltage Insulation Tester Electrical Specifications
Ambient temperature: 23±5°C
Relative humidity: < 70%
Measuring voltage | DC voltage | |||
scope | 0-2000 MΩ / 1000-100000 MΩ (automatic range) | |||
accuracy | insulation resist | 0-100 megohms | ±3.0 % arc | Ambient temperature: 23 ± 5°C Relative humidity: < 70% |
100-50000 megohms | ±2.5 % radian | |||
50000-100000MΩ | ±3.0 % arc | |||
0-100 megohms | ±6.0 % radian | Ambient temperature: 0 ~ +40°C Relative humidity: < 85% | ||
100-50000 megohms | ±5.0 % arc | |||
50000-100000 megohms | ±6.0 % radian | |||
The output voltage | 2500V ± 10% | 100 - 100000 Megohms | ||
Insulation resistance | 1000 MΩ / 1000 V max | Between the circuit and the case | ||
withstand voltage | 5000V AC per minute | Between the circuit and the case |
