Packaging Details: | original packaging | type: | gas flow sensor |
accuracy: | ±(1.5 + 0.2 full scale)% | Repeatability: | ± 0.25% of reading |
Flow range: | 0 ~ 10, 20, 30, 40, 50 standard per minute | brand: | siago |
payment terms: | wire transfer, paypal | port: | Hongkong |
Supply capacity: | 10000pcs mass air flow sensor per month | Origin: | U.S. |
application: | Electronic flowmeter for anesthesia equipment | Turndown ratio: | >100:1 |
model: | FS4000 | Air shift: | ± 30 mV |
theory: | other | usage: | other |
Mass air flow sensor analog RS485/RS232 output 0-50SLPM

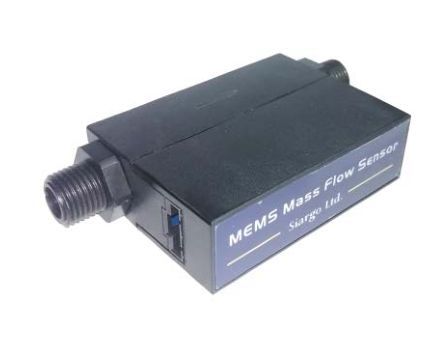

FS4008 Gas Mass Flow Sensor Description
The FS4008 mass flow sensor is designed for general purpose flow monitoring and control applications and is made with the world's leading proprietary MEMS mass flow sensor and intelligent electronic control system. The sensor directly measures the mass flow in the designed channel with very little pressure loss. These sensors can be easily applied to electronic flow meters in anesthesia equipment, clean room airflow or nitrogen flush monitoring and control, environmental equipment such as air samplers, and analytical instruments such as GC spectrometers.
The FS4008 can be configured to measure flow rates up to 50 SLPM. It can be applied to gas flow measurement and/or control equipment. Applications include electronic flow meters for anesthesia equipment, clean room gas flow monitors, air samplers and gas analyzers.
FS4008 Gas Mass Flow SensorFeatures and Applications
- Designed for 3 and 8mm packages
- Detectable mass flow from 0 ~ 2 SLPM to 0 ~ 50 SLPM
- Interchangeable connectors for easy installation
- Digital and analog outputs facilitate various communications
- Compact design allows for multi-lane assembly
- Ideal for electronic instrumentation in anesthesia equipment
- Fast response and low power consumption
- Loss of low pressure
FS4008 Gas Mass Flow SensorMechanical Dimensions
FS4008 Gas Mass Flow SensorSpecification
Model | FS4008 | unit |
flow range | 0 ~ 10, 20, 30, 40, 50 | SLPM |
turndown ratio | >100:1 | |
accuracy | ±(1.5 + 0.2 full scale) | % |
repeatability | ± 0.25 | %read |
air shift | ± 30 | millivolt |
output offset | ± 0.12 | %/℃ |
Response time | 10 (default, 50, 100, 200, 500, 1000 optional) | multiple sclerosis |
output | Linear: Analog 0.5 ~ 4.5 Vdc / Digital RS232 or RS458 | |
Pressure drop (maximum) | < 600 | Pa |
maximum. work pressure | 0.5 | MPa |
power supply | 8 ~ 24 VDC, 50 mA | |
Working current | Typical value is 16 when RS232/RS458 is not connected | Well |
The typical value is 18 when RS232/RS458 communicates with PC | ||
energy consumption | <220 | Milliwatts |
Analog output load | Purchases: 14 | Well |
Sunk: 11 | ||
Operating temperature | -5 ~ +55 | Celsius |
FS4008 Gas Mass Flow SensorProduct choice
1. About 15 working days after receiving the payment (subject to the actual quantity).
2. Tracking No. will be sent to you after delivery, and we will track the goods for you until you receive them.
Welcome to inquire!
