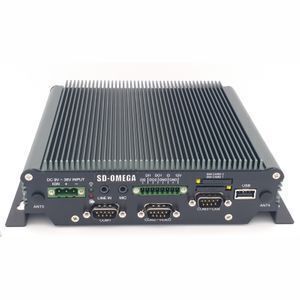

SD3140 Intel APOLLO Lake E3940 Atom CPU In-Vehicle Compauter with 9-36V DC Input Car PC / Car Computer / In Car PC

Product details
Port:Hong Kong;Supply Ability:5000 Piece/Pieces per Week;
Model Number:SD3140;Combination:Bluetooth-Enabled, Built-in GPS, DVD Player, Touch Screen;
Packaging Detail:in Box;Payment Terms:T/T;
Warranty:12 Months;
SD3140 Intel APOLLO Lake E3940 Atom CPU In-Vehicle Compauter with 9-36V DC Input Car PC / Car Computer / In Car PC




Intel Apollo Lake E3940 Atom CPU with 9~36V DC Input In-Vehicle Computer

  • Intel E3940 Atom CPU up to 1.8GHz
  • Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
  • 9V - 36V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • Support 3x RS-232 (COM1 with 232/422/485)
  • Support 2 x DI / 2 x DO (12V / 100mA)



Specification

System
CPU
Intel E3950 Quad Core Atom CPU up to 2.0GHz
Intel E3940 Quad Core Atom CPU up to 1.8GHz
Intel E3930 Dual Core Atom CPU up to 1.8GHz
Memory
1 x DDR3L-1600MHz SO-DIMM up to 8GB
Graphic
Intel HD Graphics
Resolution3840 x 2160 @30Hz max
ATA
2 x Serial ATA 2.0 ports with 6GB/s HDD Transfer Rate
LAN Chipset
2 x Intel i210-AT Gigabit Ethernet
Watchdog
1 ~ 255 Level Reset
Power Requirement
Power Input
9V -36V DC Power Input
Power Management
9V -36V DC Power Input
Power Off Control
Power off Delay Time Setting by Software, Default is 5 Mins
Backup Battery
Internal Battery Kit for 10 Mins Operating (Optional)
I/O
Serial Port
Suuport 3x RS-232 (COM1 with RS-232/422/485)
USB Port3 x USB 2.0 ports
LAN2 x RJ45 ports for GbE
Video Port1 x HDMI and 1 x DVI-I*
* Use only with Single Link DVI Cables.
GPIO PortSupport 2 In and 2 Out (12V / 100mA)
AudioMic-in/Line-out
Expansion bus3 x Mini-Card Slots
Antenna4 x SMA-type external antenna connectors for WLAN / UMTS / GSM / GPRS / GPS
SIM Card Socket2 x SIM Card sockets supported onboard with eject
Mechanical & Environmental
Dimension182 x 167.6 x 54 mm
Mounting MethodWall-mount, VESA-mount, Din Rail Mounting Kit
Weight1406 g
Relative Humidity5 ~ 90% (non-condensing)
Operating Temp.-20 ~ 70°C (SSD), ambient w/ air
Storage Temp.-40 ~ 80°C
CertificatinsCE, FCC Class A, EMark Compliance
Ordering Information
Part Number
SD3140
DescriptionIntel Apollo Lake E3940 Atom CPU with 9~36V DC Input In-Vehicle Computer
