SD3611-POEX Car PC Intel Gen 6 Core i7-6600U CPU with 4x POE Ports Mini In Car PC

Supplier: SD-Omega (HongKong) Company Limited
Region: Hong Kong S.A.R., China
Contact: Mr Andy Long
Price: $99.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	5000 Piece/Pieces per Week;	Port:	Hong Kong;
Payment Terms:	T/T;	Packaging Detail:	in Box;
Model Number:	SD3611-POEX;	Combination:	Bluetooth-Enabled, Built-in GPS, DVD Player, Touch Screen;
Warranty:	12;

Product Description

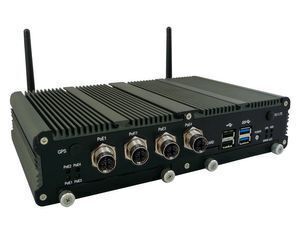

SD3611-POEX

Intel Gen 6 Core i7-6600U CPU with 4x POE Ports In-Car PC

Intel Core i7-6600
Wireless support LTE, 3.5G w/ SIM Card, WLAN, GPS Dead Reckoning, GSM/GPRS, BT
4 x Power Over Ethernet (POE)
Smarter Vehicle Power Ignition for Variety Vehicle
Dual Hot Swappable SATA Storage, RAID 0, 1, 5
1 x CAN Bus 2.0B (Optional)

SYSTEM
CPU	Intel Gen 6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen 6 Core i5-6300U 2.4GHz up to 3.0GHz Intel Gen 6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz
Memory	2 x DDR4 2133 MHz SO-DIMM up to 32GB
Chipset	Intel 6th Generation Core SoC Processor
LAN Chipset	Intel I210-AT Gb/s Ethernet Controllers Onboard Support PXE and WOL
Audio	Realtek ALC662 HD Codec Onboard
Watchdog	Watchdog Timer Support, Offer 1 – 255 Step
TPM	2.0
POWER REQUIREMENT
Power Input	9V -36V DC Power Input
Power Protection	Automatics Recovery Short Circuit Protection
Power Management	Vehicle Power Ignition for Variety Vehicle
Power Off Control	Power off Delay Time Setting by Software and BIOS
Backup Battery	Internal Battery Kit for 10 Mins Operating (Optional)
GRAPHICS
Graphics	Intel HD Graphics 520 DirectX Video Acceleration (DXVA) for Accelerating Video Processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0
Resolution	Max Resolution (HDMI 1.4) : 4096 x 2304@24Hz Max Resolution (DP) : 4096 x 2304@60Hz
STORAGE
Type	2 x 2.5" Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5 1 x mSATA
I/O
Serial Port	3 x RS-232 (2 with RS-422/485 (Auto Direction Control))
USB Port	2 x USB 3.0 Ports, 2 x USB 2.0 Ports
LAN	4 x M12 X-Code for GbE POE (IEEE802.3AF 15.4W per port)
Video Port	1 x DVI-I, 1 x VGA, 1 x DP (Support Triple Independent Display) Use only with Single Link DVI Cables.
DIO Port	4 In and 4 Out
Audio	1 x Line-out and 1 x Mic-in (Line-in optional)
SIM Card Socket	1 x SIM Card socket supported onboard with eject
MECHANICAL & ENVIRONMENTAL
Dimensions	250 x 150 x 55 mm
Weight	1980g (bare-bone)
Relative Humidity	0 ~ 95%
Operating Temp.	-40 ~ 70°C (Default CPU 17Watt)
Storage Temp.	-40 ~ 80°C
Certifications	CE, FCC Class A, E-13

ORDERING INFORMATION
Part Number	SD3611-POEX
Description	Intel Gen 6 Core i7-6600U CPU with 4x POE Ports On-Board Computer
