Huawei OceanStor 5500 V3 network attached storage

Supplier: Shenzhen Hong Telecom Equipment Service Limited
Region: Guangdong, China
Contact: Mr Charlie lee
Price: $2000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	100 Piece/Pieces per Month;	Max Power consumption:	773.90 W;
Controller enclosure:	748x447x86.1 mm;	Products Status:	Stock;
BBU capacity:	18 Wh;	2 U SAS disk enclosure:	488x447x86.1 mm;
Port:	HONGKONG port & Shenzhen Port;	Place of Origin:	Guangdong China (Mainland);
Delivery Detail:	About 3-7 days after receive the payment.;	2 U SAS disk enclosure Weight:	17.5 kg;
4 U SAS disk enclosure Weight:	26.5 kg;	Packaging Detail:	1. Original carton package 2. As customer's requirement;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	4 U SAS disk enclosure:	488x447x175 mm;
Brand Name:	HUAWEI;	Interface Type:	USB;
Controller enclosure Weight:	33 kg;	Min Power consumption:	416.90 W;
Model Number:	OceanStor 5500 V3;	Typical Power consumption:	582.50 W;

Certifications

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

Our Company

Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

Product Appearance

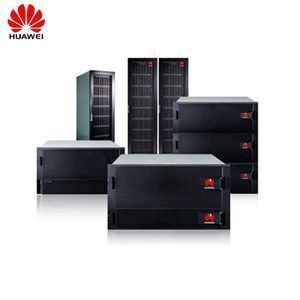

The huawei OceanStor 5300/5500/5600/5800 V3 Storage Systems

Product features

Offer a cloud architecture-oriented operating system, high-performance hardware platform, and a complete suite of smart management software.
Scalable to eight controllers, 1 TB cache, 7.5 PB storage capacity, with a variety of interfaces, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and smart I/O cards.
Perfect storage systems for large OLTP/OLAP databases, file sharing, and cloud computing.

• Enable convergence in five areas: SAN and NAS, heterogeneous devices, entry-level to high-end storage, HDD and SSD, and storage and backup

• Provide industry-leading specifications: Up to 8 controllers, 1 TB cache, 7.5 PB storage capacity, and various interface types, including 16 Gbit/s FC, 56 Gbit/s InfiniBand,PCIe 3.0, 12 Gbit/s SAS, and smart I/O card

• Simplest management platform handles multiple product models with a graphical interface and is available in Windows, iOS, and Android versions

• Protect customer initial investments and reduces TCO for multiple applications, various product models, and fast business growth

Product Specification

The huawei 2U rack server RH2288 Specifications:

Specifications	OceanStor 5500 V3
Processors per controller	1 x 6-core processor 1 x 10-core processor (enhanced)
Cache size per controller	24 GB (only applicable to the 6-core processor) 48 GB (only applicable to the 6-core processor) 64 GB
Maximum number of controllers per enclosure	2
Maximum number of IP scale-out controllers	8
Maximum number of disks	750
Controller enclosure configuration	2 U controller enclosure with twenty-five 2.5-inch disks 2 U controller enclosure with twelve 3.5-inch disks
Supported disk enclosure types	2 U SAS disk enclosure with twenty-five 2.5-inch disks 4 U SAS disk enclosure with twenty-four 3.5-inch disks 4 U SAS high-density disk enclosure with seventy-five 75 x 3.5-inch disks
Maximum number of disk enclosures	2 U SAS disk enclosure: 31 4 U SAS disk enclosure: 31 4 U SAS high-density disk enclosure: 10
Maximum number of disk enclosures connected to back-end channels (ports)	A maximum of eight SAS disk enclosures can be connected to a pair of SAS ports. Two is recommended. A maximum of eight high-density disk enclosures can be connected to every two pairs of SAS ports (a pair consists of two adjacent ports on the same card). Two is recommended. Common disk enclosures and high-density disk enclosures cannot be connected in a mixed manner in the same back-end loop of a SAS interface module.
Supported disk types	SSD, SAS, and NL-SAS
Supported hot-swappable interface module types	8 Gbit/s Fibre Channel 16 Git/s Fibre Channel GE 10GE (electrical) 10 Gbit/s FCoE 56 Gbit/s (4×14 Gbit/s) IB SmartIO
Supported hot-swappable expansion module type	12 Gbit/s SAS
Maximum number of hot-swappable I/O interface modules per controller	2
Length of expansion SAS cables	Common disk enclosure Electrical cables: 1 m, 3 m, and 5 m Optical cables: 15 m High-density disk enclosure Electrical cables: 5 m
Redundancy of main components	BBU: 1+1 Power modules: 1+1 Fans: 3+1

Test Lab

Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.We are capable to provide our business partners bestselling products.

Group Introduction

Our Sales Team

We have never stopped developing and actively participated in the training of Huawei and ZTE. We have passed many examinations and obtained Career Certification.

Our Warehouse

Our warehouses are located in Shenzhen, Shandong, Guangzhou and other places in China. The inventory value is over 5 million us dollars, occupies an area of 500㎡. Our export volumes is 1 million per month. We export products to Europe, America, the Middle East and Asia, etc.

Packing & Delivery
