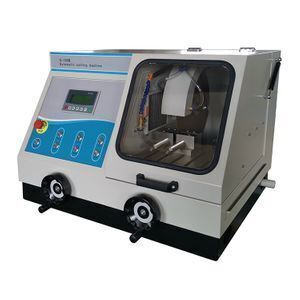

METAL CUTTING MACHINE MODEL Q-100B METALLOGRAPHIC SPECIMEN CUTTING MACHINE

Supplier: Laizhou Lyric Testing Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Qingchi Han
Price: $2560.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380V, 3-phase;	Key Selling Points:	Automatic;
Package Preview:	https://sc02.alicdn.com/kf/HLB1z3b2NpYqK1RjSZLeq6zXppXaR.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HLB1EE_3NwHqK1RjSZFPq6AwapXaF.jpg_640x640.jpg;	Brand Name:	Lyric;
Certification:	ISO9001, CE;	Place of Origin:	China;
Certificate:	ISO9001, CE;	Warranty:	1 year;
After-sales Service Provided:	Overseas third-party support available;	Condition:	New;
Motor power:	3Kw;	Selling Units:	Single item;
Weight:	210KG;	Single gross weight:	250 KG;
Rated Power:	3kw;	Type:	Specimen Cutting Machine;
Warranty:	One year;	Power supply:	380V, AC, three phase;
Applicable Industries:	test detection;	Dimension(LWH):	930 x 700 x 610mm;
After-sales Service Provided:	Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support;	Single package size:	98X90X74 cm;
Year:	2019;	Weight:	220KG;
Package Type:	strong plywood case suitable for long distance sea shipment;

Product Description

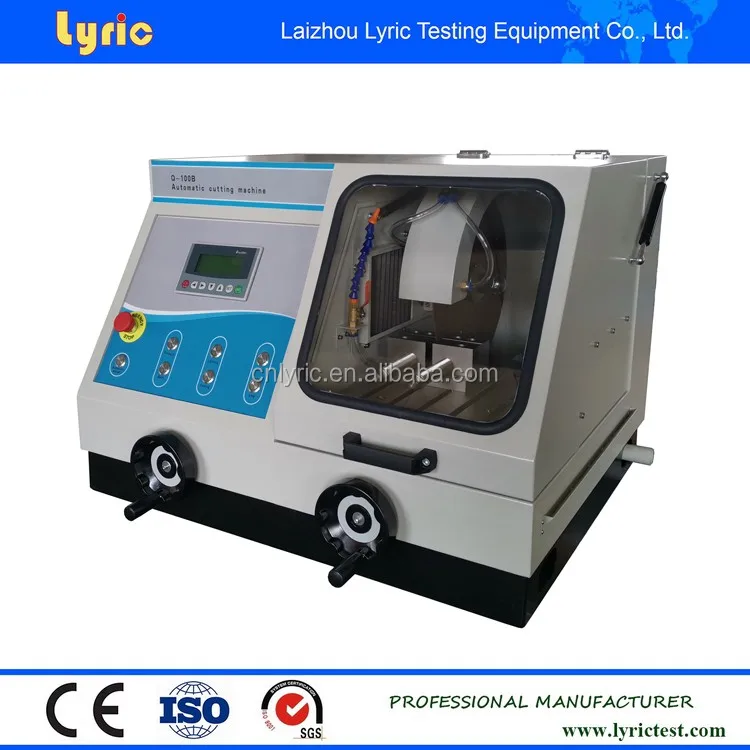

MODEL Q-100B MANUAL / AUTOMATIC
METALLOGRAPHIC SPECIMEN CUTTING MACHINE

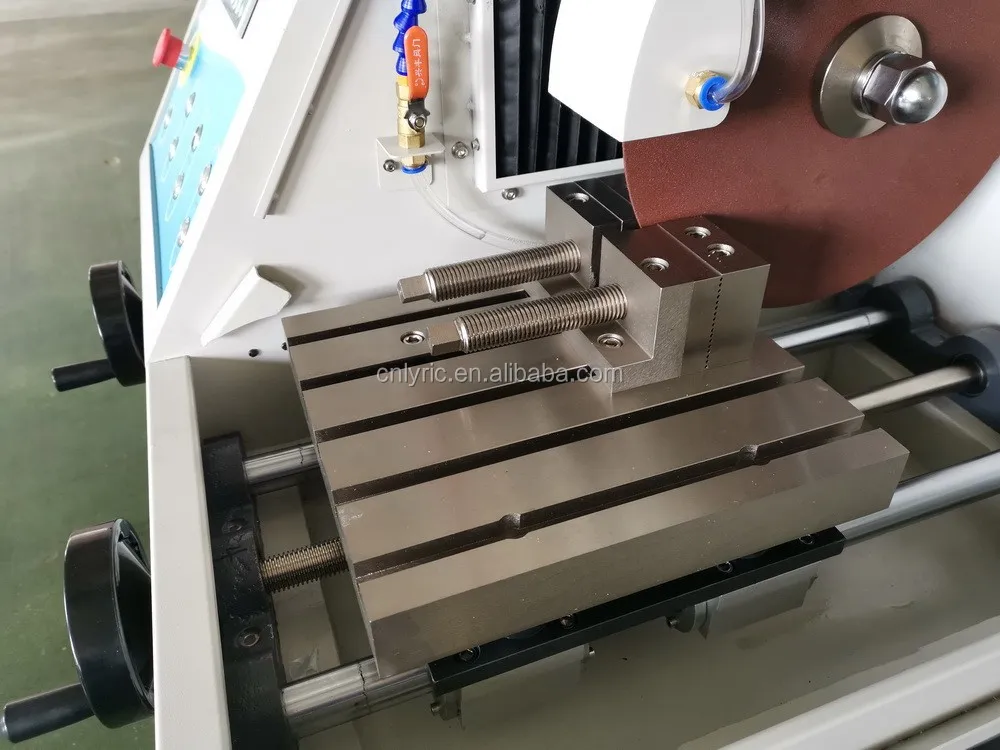

Model Q-100B manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces. It is the ideal metallographic specimen preparation equipment to be used in factories, colleges and researching institutes.

Features

* The machine can preset the cutting speed according to different specimens, this will improve the cutting performance and quality of specimen.
* Recirculating cooling system can help to cool down the specimen during cutting process so as to avoid burning damage to the organization.
* The machine can be operated in manual cutting mode or automatic cutting mode.
* Various cutting data can be displayed on high definition backlight type LCD screen.
* Delay cutting (for large and hard specimen) and continuous cutting (for small and soft specimen) can be selected.
* Automatic withdraw function after cutting is finished

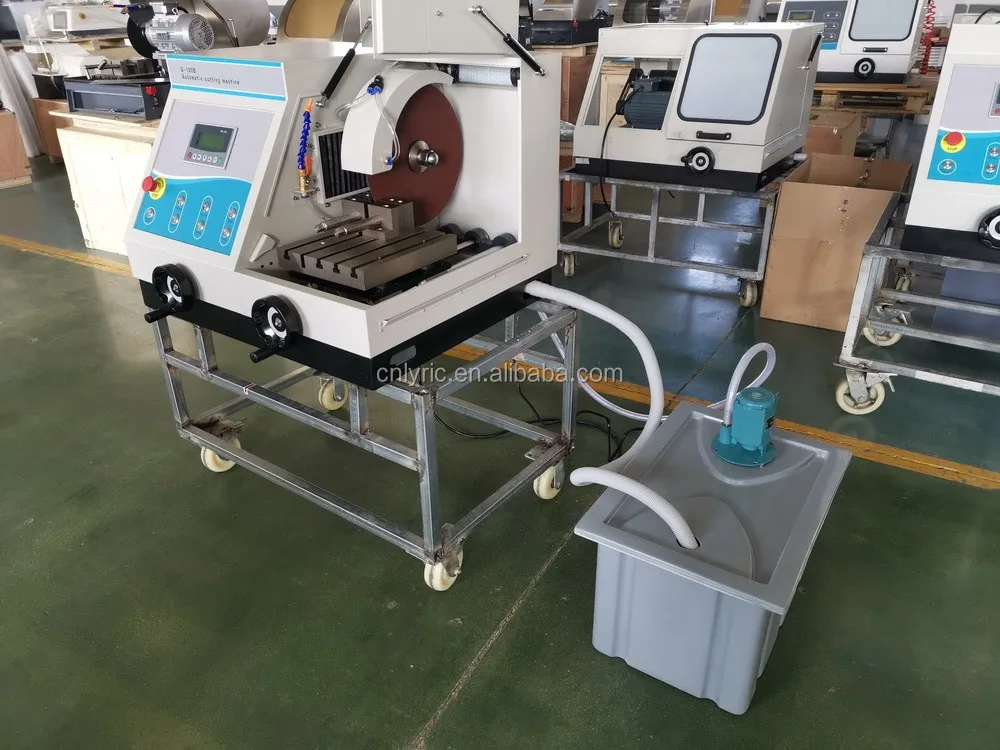

* Equipped with 60L cooling liquid water tank.

Technical specifications

Max. cutting diameter: Ø100mm
Max. Cutting volume: 100mm x 200mm
Main shaft rotating speed: 2200 rpm
Automatic cutting speed: 0.1-3.0mm/min. (0.1mm/min. increment)
Sand wheel specification: 350 x 2.5 x 32mm
Worktable size: 320mm x 300mm
Motor power: 3KW
Power supply: 380V, 50Hz, three phases
Dimensions: 930 x 700 x 610mm
Net weight: 220 KG

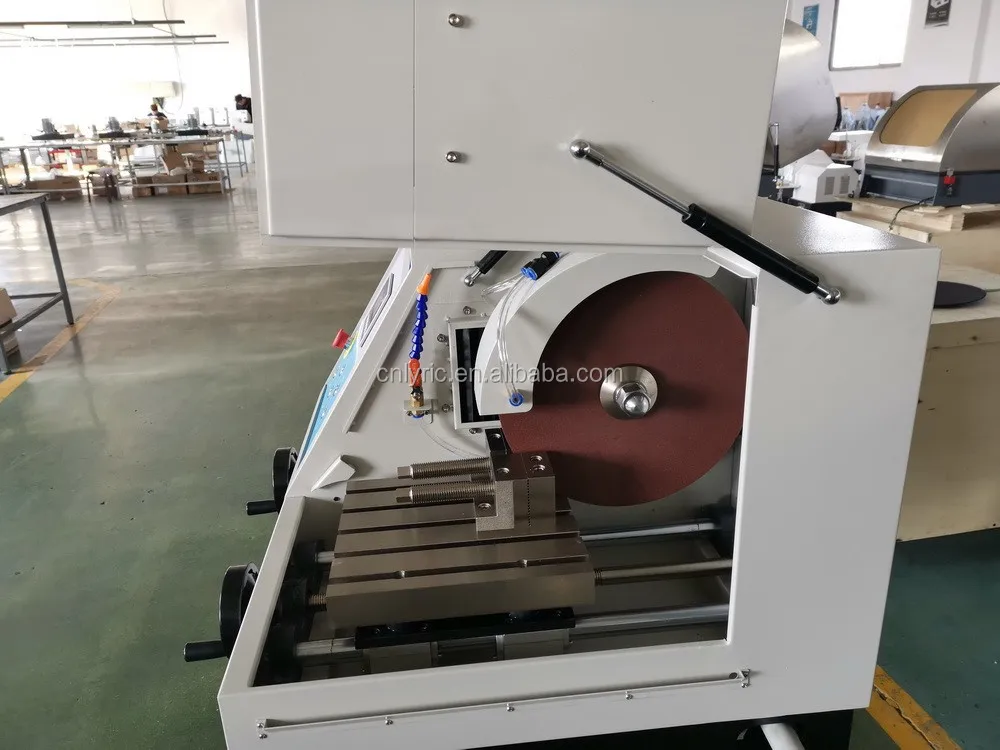

Detailed Images

Factory View
