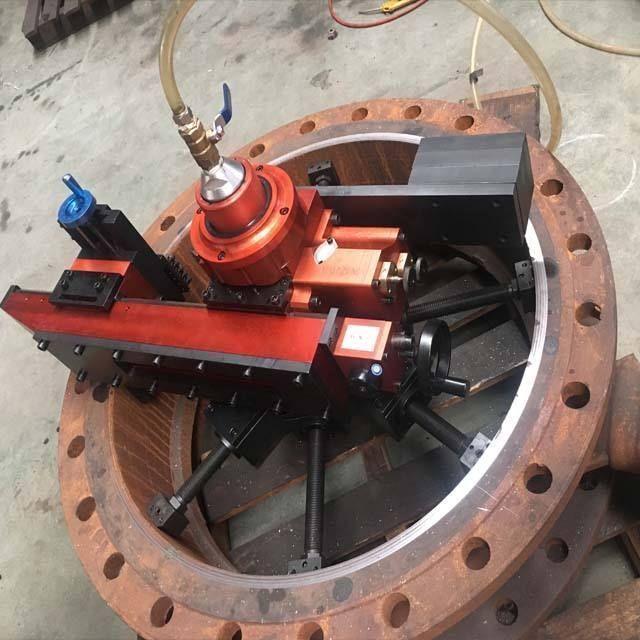

WFP1000 External Flange Facing Machine Portable

Supplier: Zhejiang Wellnit Mechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Linhua Xiang
Price: $1300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Main selling points:	high accuracy
Certification:	ISO, CE	Voltage:	220V 1PH 50/60Hz
Health status:	new	Local service location:	Vietnam, Brazil, Saudi Arabia, Indonesia, India, Russia, Malaysia, Chile, UAE, South Africa
rated power:	2.0-3.0kw	Main selling points:	competitive price
The scope of work:	150-1000mm	Package preview:
weight:	120 kg	Function:	Faces, Grooves, Chamfers
application:	Oil and gas flange	Showroom location:	Vietnam, Saudi Arabia, Indonesia, India, Russia, Thailand, Chile, UAE, South Africa, Nigeria
type:	Pipe cutting machine	Packaging Details:	Aluminum alloy shell, plywood shell
year:	2020	Applicable industries:	Building material stores, manufacturing plants, construction, energy and mining
place of origin; place of origin:	Zhejiang, China	Core component warranty:	1 year
motor:	pneumatic	strength:	2.2HP
Warranty:	1 year	brand:	All right
Tool holder travel:	102mm	Installation range:	145-813mm
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Supply capacity:	5000 sets per week
Marketing Type:	New Products 2020	After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support
Rotating speed:	0-33mm	port:	Ningbo, Shanghai
payment terms:	L/C, T/T	Name:	Portable Flange Machine
Core components:	motor	Video shipment inspection:	if

Portable Flange Facing Machine ID Install Heavy Duty Portable Flange Facing Machine

Product Description

Parameters of Portable ID Flange Face Machine Seal Groove Flange Face Machine

End diameter	150-1000mm
ID installation diameter	145-813mm
Motor Power	pneumatic
knife holder	102mm
speed	0-33rpm

technical parameter

Working diameter: 150-1000mm

Power: air motor

benefit:

• Extremely flexible

• Highly portable

• Latest linear technology

• high efficiency

• Low noise 2.0hp driver

• Storage/transport case

• CE certificate

WFP1000 Flange Face Machine Operating Dimensions:

Quick and easy installation and removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.

light

• The main machine unit weighs only 265 lbs (121 kg).

• The smallest mounting chuck weighs approximately 17 lbs (4.2 kg).

safe and quiet operation

• Fixed feed rate selector.

• Control the machine without touching any moving parts.

• Exhaust is routed through the machine body for enhanced sound attenuation.

Simplify operation

• Single selector switch for bidirectional radial infeed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolts.

Cutting chamfers and grooves

• Compound head and downfeed for cutting angles and grooves.

advantage

Rugged and versatile WFP1000 provides high torque performance to quickly recondition flanges and repair seal and bearing surfaces efficiently and economically

• Powered 360° tool post – for a wider range of machining operations

• Three-speed continuous feed gearbox for phonograph finishing

• Quick set adjustable jaws minimize setup time
