High Precision Automatic Portable Welding Line Boring Machine

Supplier: Zhejiang Wellnit Mechanical Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Linhua Xiang
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core components:	motor	port:	Ningbo, Shanghai
Drilling diameter:	55-300mm	Applicable industries:	Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Restaurants, Retail, Construction Engineering, Energy and Mining, Excavators
Marketing Type:	Hot Products of 2019	Packaging Preview:
Warranty:	1 year	Supply capacity:	3 sets per week
payment terms:	letter of credit, wire transfer	year:	2020
rated power:	2kW	Main selling point:	high accuracy
Health status:	new	Weight (kg):	30
automation:	automatic	After-sales service provided:	Online support
spinning speed:	0-118 rpm	Feeding method:	automatic
Mechanical test report:	if	Material/Metal Finishing:	Brass/Copper, Stainless Steel, Carbon Steel, Aluminum Alloy, Alloy, Aluminum
place of origin; place of origin:	China	Drill length:	can be customized
Voltage:	220V	Showroom location:	United Arab Emirates, South Africa
Dimensions (LWH):	808073	Packaging Details:	plywood
Video external inspection:	if	brand:	healthy
Core Components Warranty:	1 year

High Precision Portable Linear Boring Machine

Performance

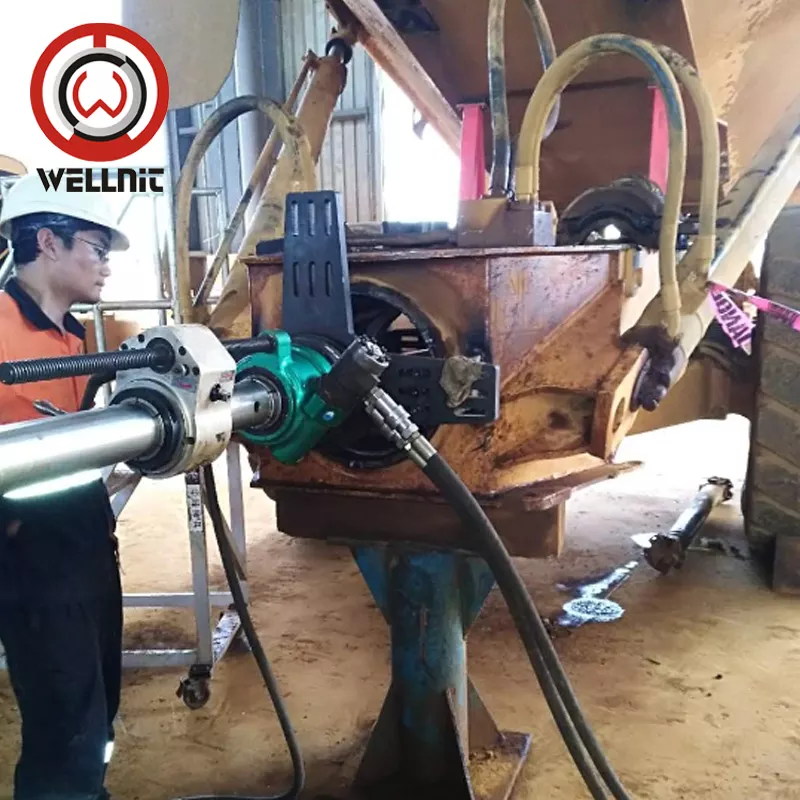

LB series linear boring machine is a portable and efficient product. The machine adopts high-strength alloy structural steel, which is more wear-resistant. Modular design of the whole machine, equipped with rotating structure and automatic feeding device, high precision. The boring parts can be replaced, and different joints can be selected to realize inner hole repair, pipe surface processing, taper hole boring, end face milling, flange end face processing, etc. Widely used in excavators, lifting machinery.

Specification

drive	Model	Boring diameter	spinning speed
electrical (LBE) hydraulic (LBH) CNC (London Business School)	50	55-400mm	0-118 rpm
	60	65-600mm	0-118 rpm
	90	100-800mm	0-78 rpm
	110	180-900mm	0-62r/min
	150	220-1000mm	0-55r/min
	200	380-1200mm	0-38 rpm
	300	460-1600mm	0-28r/min

notes:

Wire boring bar length: 2500 / 3000 / 3500 / 4000 / 4500 mm

(different lengths can be customized)

product structure

Choose different models according to workpiece size
Fix the boring bar by the support mechanism
Install the driver
The machine is equipped with a travel limit block, which can determine the processing
Stroke according to processing needs
The machine can automatically feed material, with high processing efficiency and smooth processing surface
