Automatic feeding CNC plasma pipe cutting machine Plasma pipe cutting machine

Supplier: Xuzhou HaiBo CNC Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr yong Guo
Price: $5100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Origin:	Jiangsu, China
Voltage:	380V, 220V / 380V	Dimensions (LWH):	800011001700*mm
port:	Shanghai, Qingdao, etc.	Maximum pipe weight:	≤400kg
Health status:	new	Weight (kg):	900
Applicable industries:	Building supplies store, machine repair shop, manufacturing plant, household, retail, construction, energy and mining, advertising agency	payment terms:	L/C, Western Union, T/T
brand:	KNCAM	Marketing Type:	New Products 2022
Main selling points:	multifunctional	After-sales service provided:	Online support, video technical support
Supply capacity:	30 sets per month	Cutting speed:	500-3000mm/min
Pipe length:	8000mm	Cutting diagram:	Complex drawings on pipes and tubes
rated power:	1000W	Core component warranty:	1 year
Pipe diameter:	50-250mm	Video shipment inspection:	if
Showroom location:	not any	Warranty:	12 months
Cutting method:	Plasma cutting + Flame cutting	Mechanical test report:	not available
automation:	automatic	Material/Metal Processing:	Brass/copper, stainless steel, carbon steel, aluminum alloy, ALLOY, aluminum
Packaging Details:	wooden box	Core components:	PLC, motor
Tube Wall Thickness:	0.4-12mm

Automatic feeding CNC plasma pipe cutting machine Plasma pipe cutting machine

Model: CUT 4-2

Cutting pipe diameter: 50-250mm

Pipe length: 8000mm

Product Description

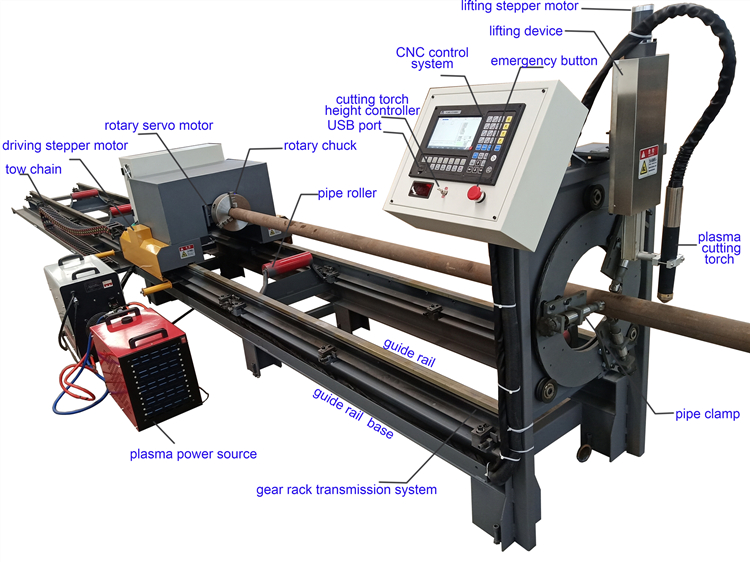

CUT 4-2 CNC Pipe Cutting Machine Structure

1. Product application

CUT 4-2 is a new CNC pipe cutting machine, which can cut round pipes and square pipes of different materials such as carbon steel and stainless steel. It is widely used in pressure vessel pipes, pipe processing, network structures, steel structures, marine engineering, and oil pipelines. and other industries.

2. Appearance of the machine

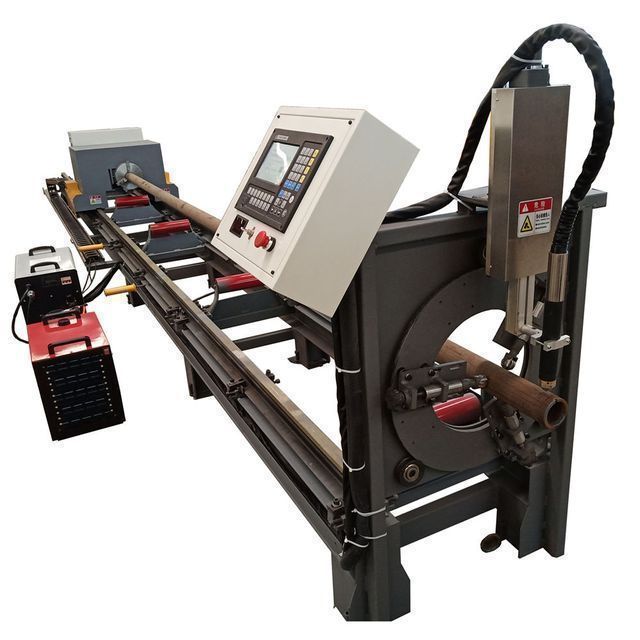

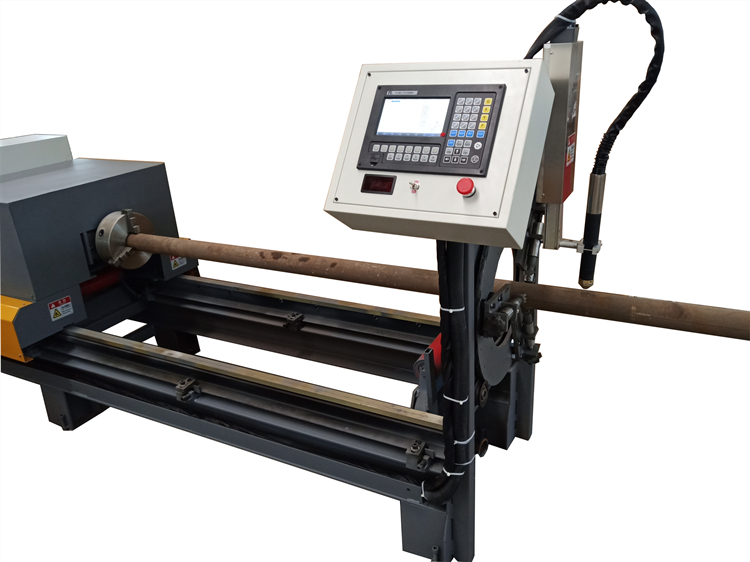

complete machine

side view

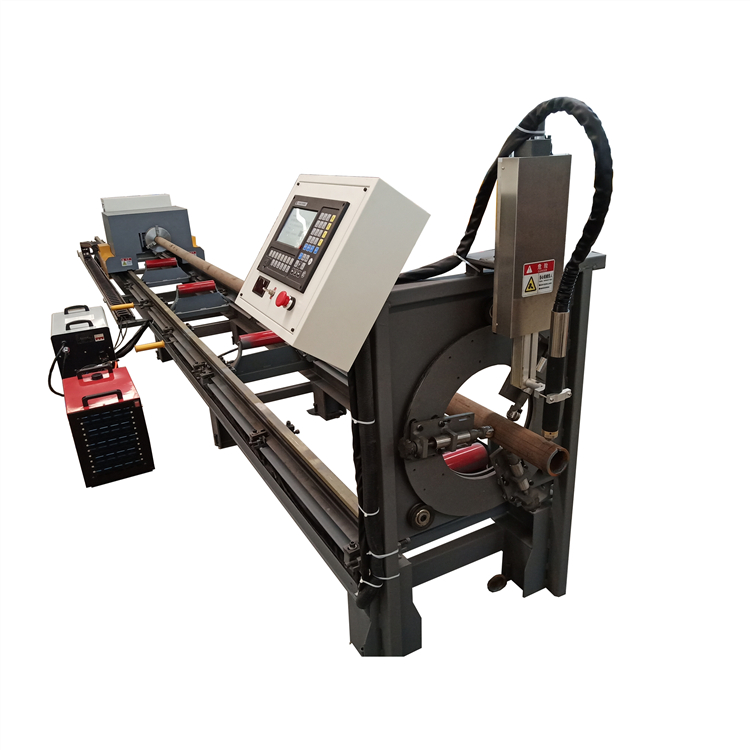

Front view

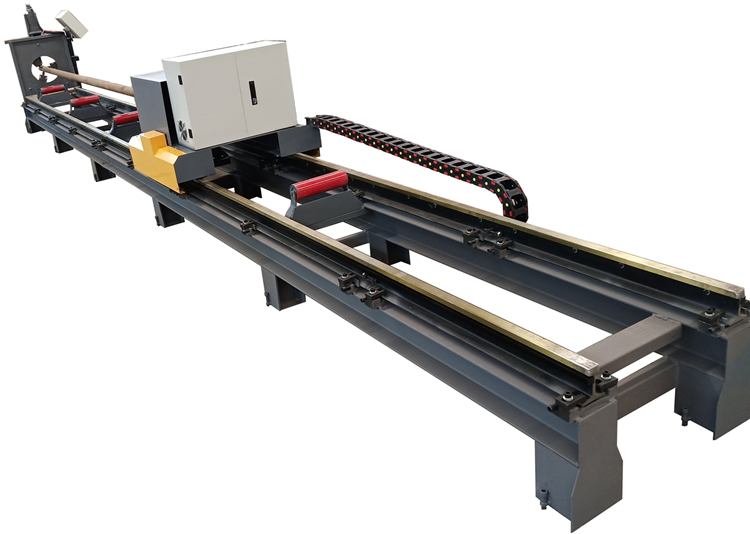

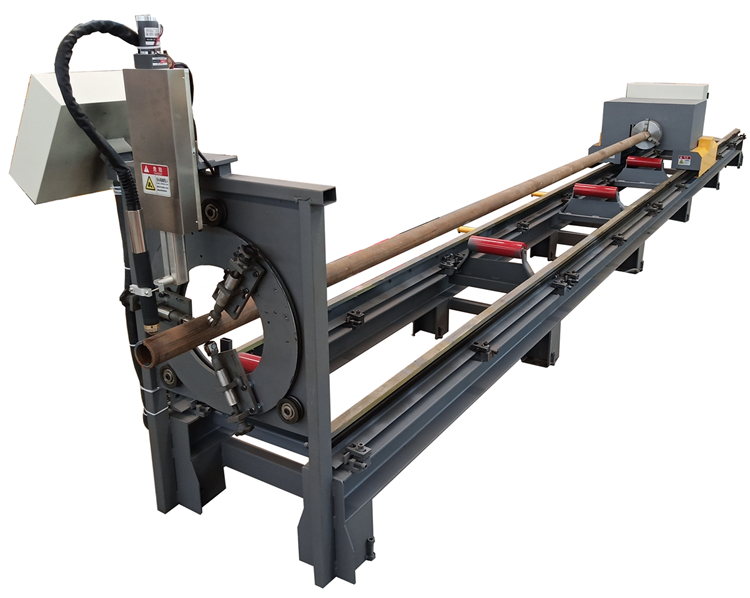

Rear view

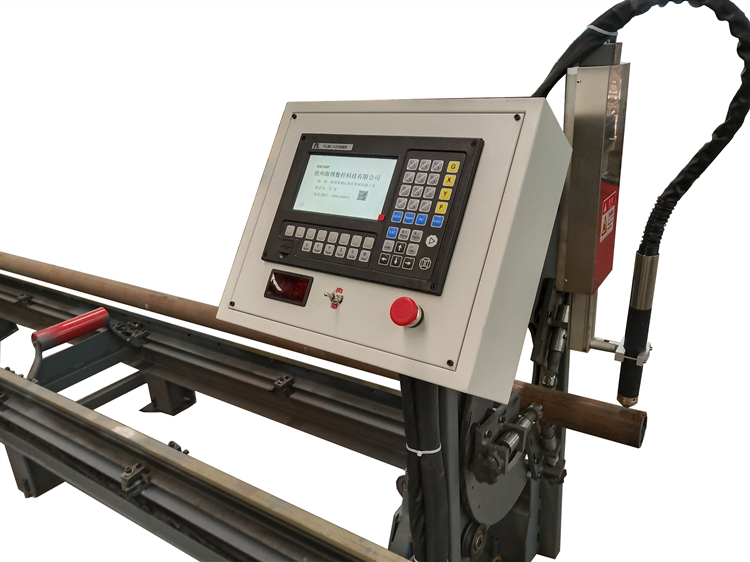

CNC system

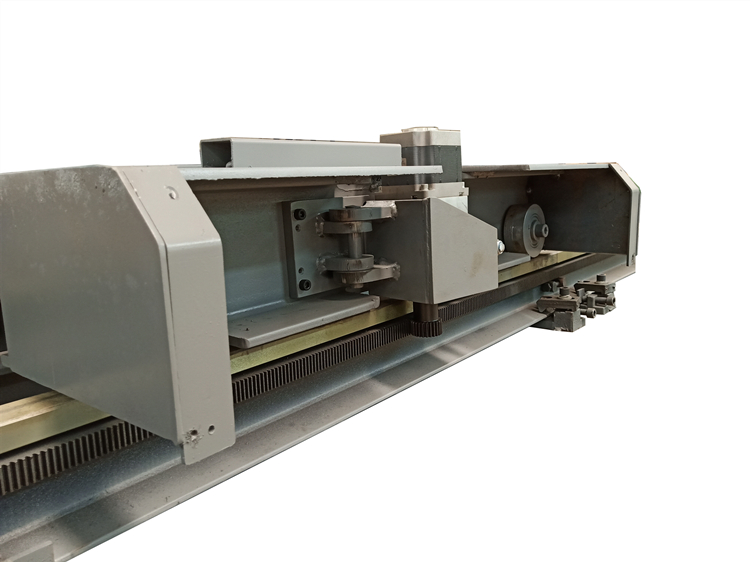

rack and pinion drive system

3.unique features

(1). Automatic feeding tube

(2). Continuous and rapid mass cutting

(3). Graphic display function

(4). English interface and other 5 languages

(5). Excellent gallery, 48 pictures

(6). Cutting can be continued during power failure

(7). Can do continuous regression

(8). Can be cut at any position

(9). Offline cutting is possible

(10). Online upgrade function

4. Technical parameters

1	model.	cut 4-2
2	energy source	AC 380±10%V AC 50/60Hz
3	cutting method	Plasma cutting + Flame cutting
4	Tube diameter	Φ50-210/Φ50-250mm
5	pipe length	6,000mm-8,000mm, can be extended
6	pipe ovality	<2%
7	maximum. Metal tube weight	400 kg
8	Cutting Thickness (Plasma)	0.4-12mm
9	Chuck size	250 type three-jaw chuck; Pipe diameter 50mm to 260mm
10	Chuck motor	1,000w Panasonic servo motor
11	cutting system	Shanghai Fangling CNC system

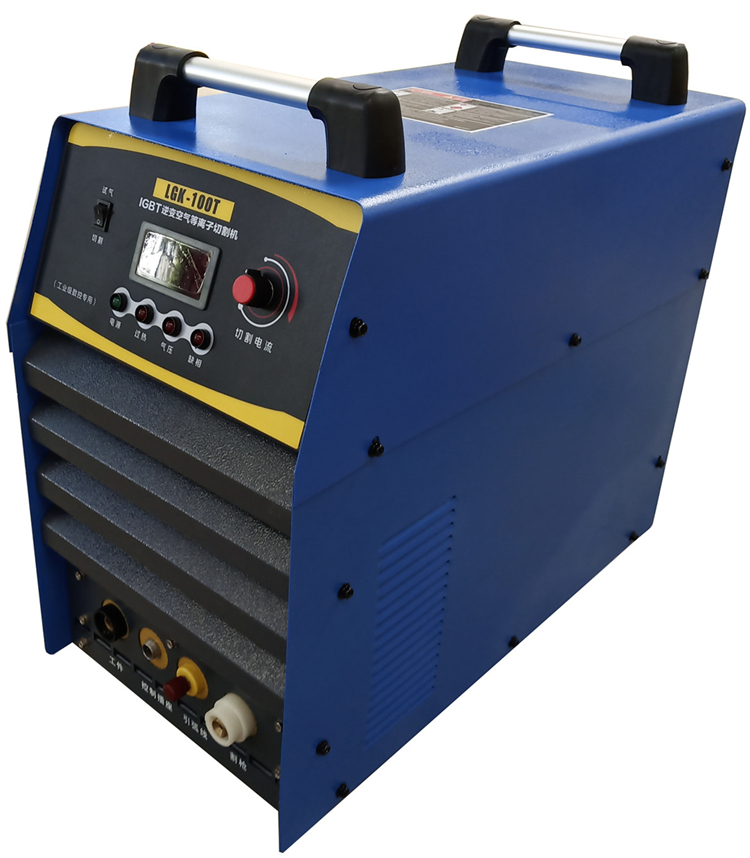

12	plasma power supply	100A or 120A
13	processing material	Iron, steel and aluminum plate, galvanized plate, titanium plate, other metals

5. Product Features

(1). Welding platform and heavy rails are adopted to increase the overall bearing weight, humanized design, more convenient and reasonable human-computer interaction, stable operation and longer life span.

(2). Self-developed and optimized CNC pipeline system, auto CAD version engineering design can directly generate standard G code, 3D operation simulation, node expansion, long pipe, pipe fitting optimization, super-large size EGES DXF SAT and STL software compatible and can be customized according to user requirements Requirement modification Lifetime free upgrade process

(3). Taiwan Edward industrial computer can be programmed directly on the machine. Use menu selections to enter cutting parameters such as diameter, wall thickness, etc.

(4). High-pressure double cranks control mold opening and closing.

(5). Linear structure is simple, easy to install and maintain

(6). High-pressure double cranks control mold opening and closing.

(7). Highly automated, intelligent operation, no pollution

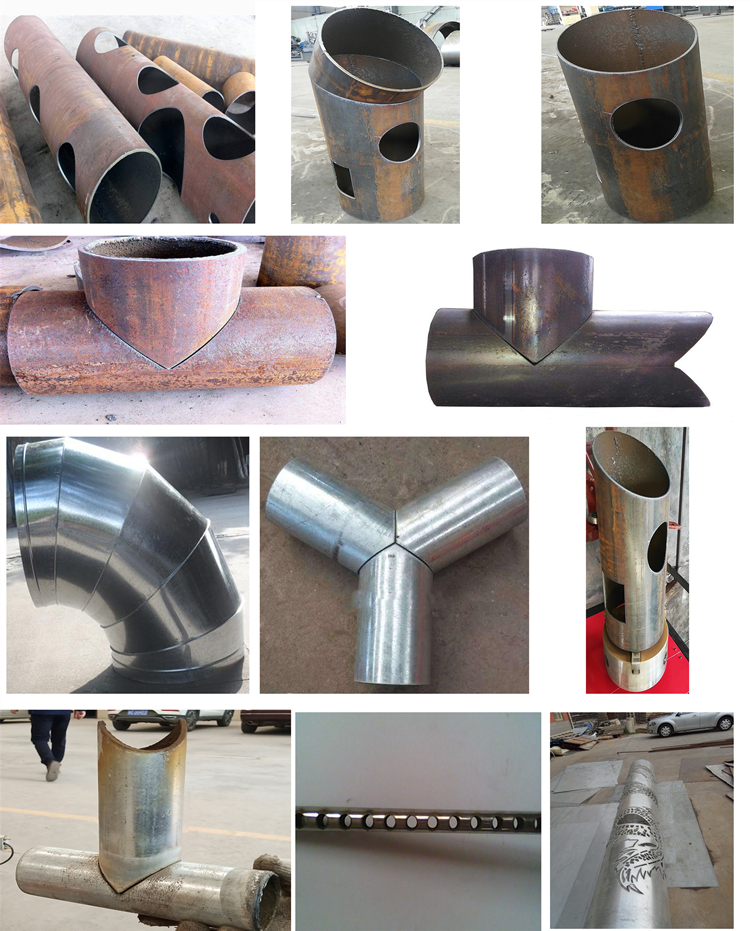

6. Cutting the sample
