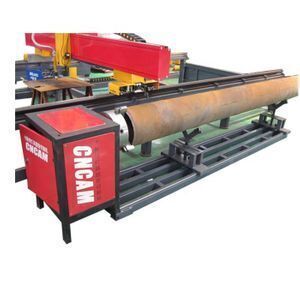

Multi-functional CNC Plasma Pipe Cutting Machine For Pipes And Metal Sheets

Product details
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Energy & Mining,Advertising Company;Showroom Location:None;
Dimension(L*W*H):750*650*1000mm;Weight:100kg;
Place of Origin:China;Year:2020;
Pipe diameter:50-300mm(can be 500mm);Supply Ability:30 Set/Sets per Month;
Port:Shanghai, Qingdao, etc;Voltage:220V / 380V,220V/380V;
Pipe length:100-6000mm;Warranty:12 months;
Cutting mode:Plasma Cutting+ Flame Cutting;Maximum pipe weight:≤300 kg;
Local Service Location:None;Cutting Thickness (mm):12;
Payment Terms:L/C,T/T,Western Union;Cutting drawing:complex drawing on pipes and tubes;
Certification:ISO;Weight (KG):100;
Key Selling Points:Multifunctional;Rated Power:1000w;
Cutting speed:500-3000mm/minute;Brand Name:KNCAM;
Packaging Detail:Wooden case;Pipe wall thickness:0.4-12mm;
Advantage:can cut both of pipe and plate;After Warranty Service:Video technical support,Online support;
Automation:Automatic;Condition:New;
Package Preview:;Material / Metal Processed:Brass / Copper,Stainless Steel,Carbon Steel,Aluminium Alloy,ALLOY,Aluminum;

Multi-functional CNC Plasma Pipe Cutting Machine For Pipes And Metal Sheets







Product Description

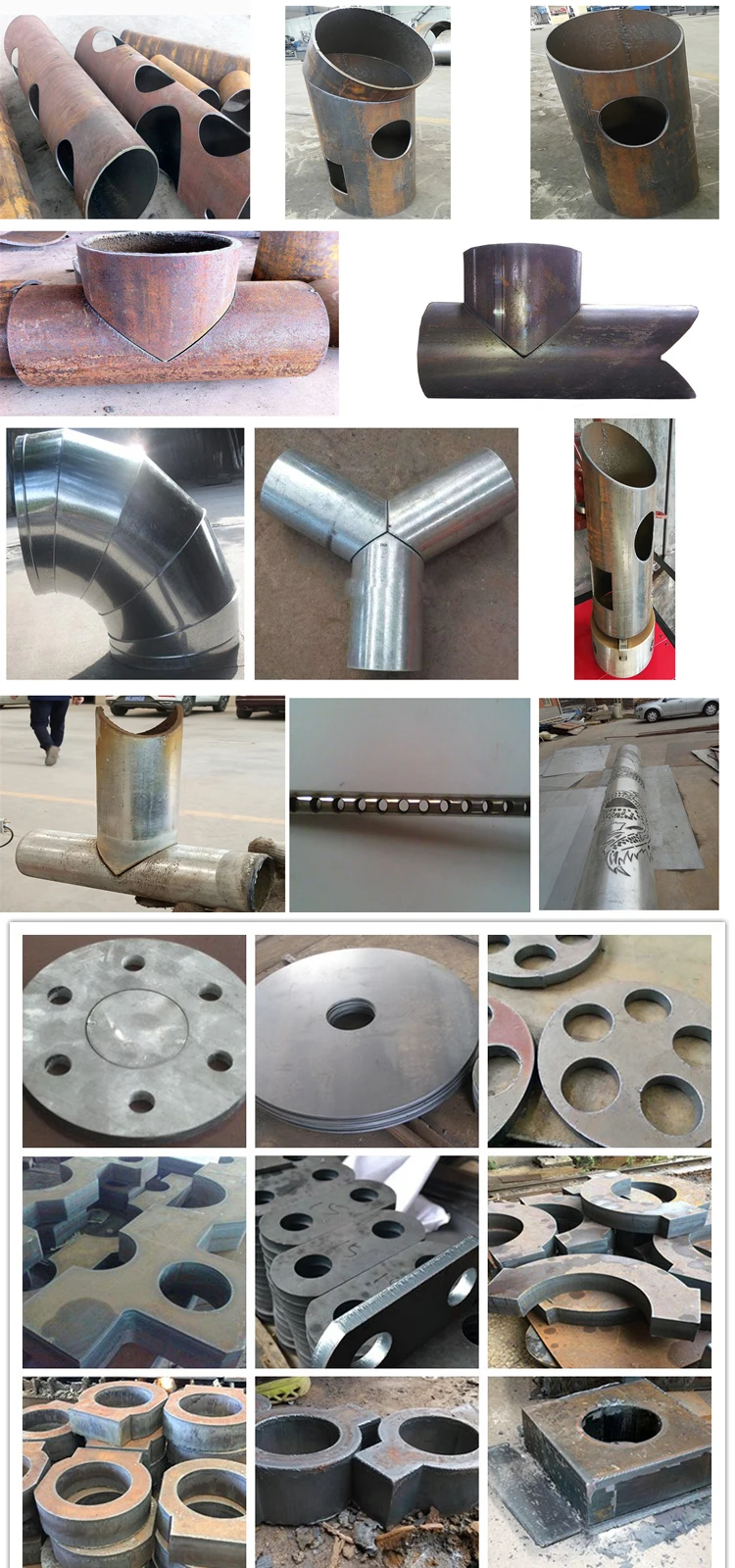

 1. Cutting samples

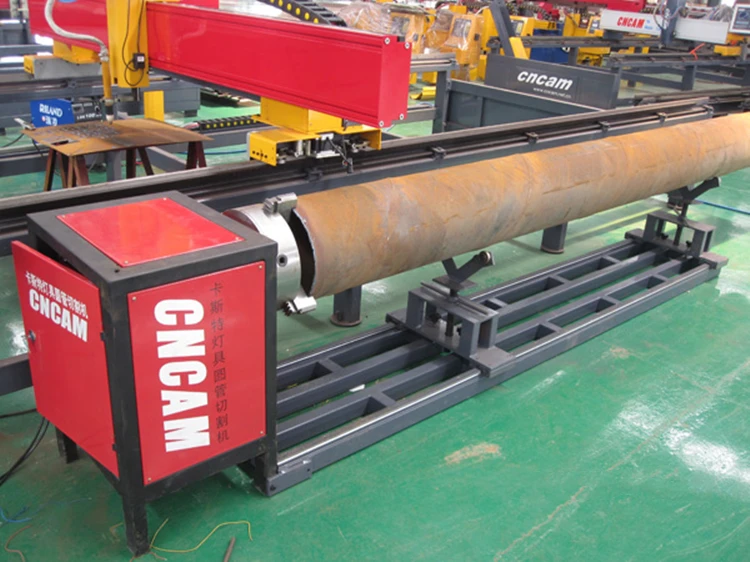

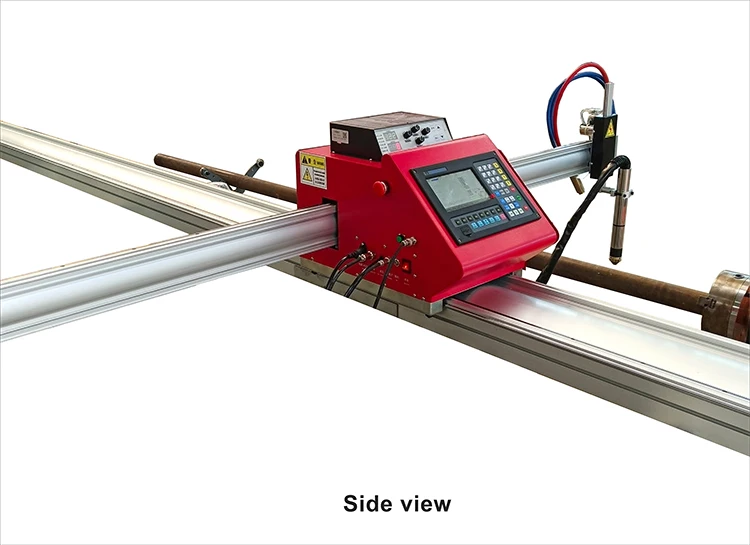

2. Machine outlook

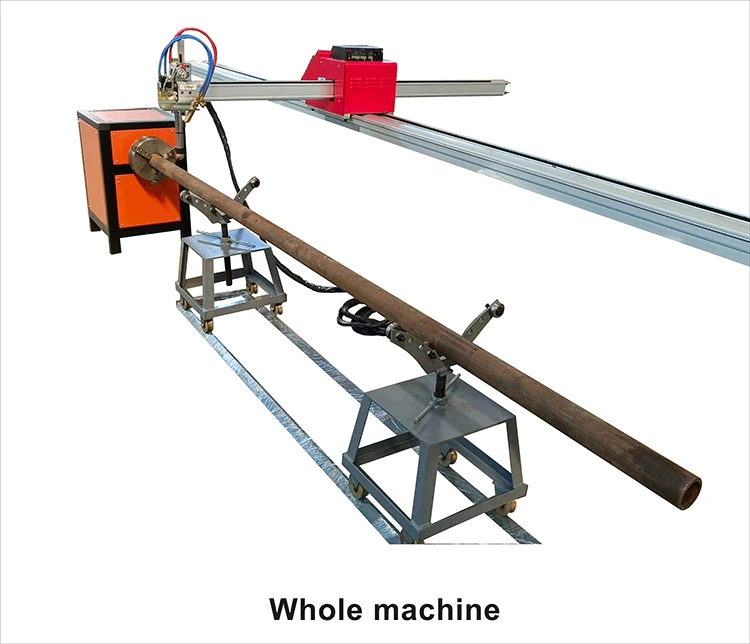

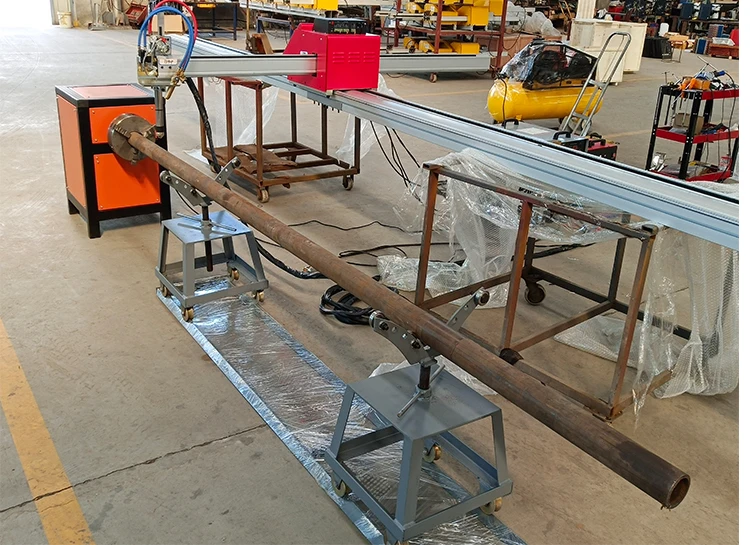

Whole machine

CUT 4 CNC pipe cutting machine



3. Technical parameters

Cutting round pipes



No.

Item

Parameter

1

Model No

CUT4

2

Input power

single Phase AC 220V

3

approximately 1000W

4

Cutting mode

plasma cutting + flame cutting

5

Transmission Style

rack and gear

6

Pipe inner diameter

≤300mm(can be 500mm)

7

Pipe length

 3000mm(standard), 6000mm(maximum)

8

Wall thickness of pipes



plasma cutting: 1-12mm based on plasma power source

flame cutting: 6-50mm

9

Cutting speed

500-3000mm/minute

10

Cutting drawing

any drawing

11

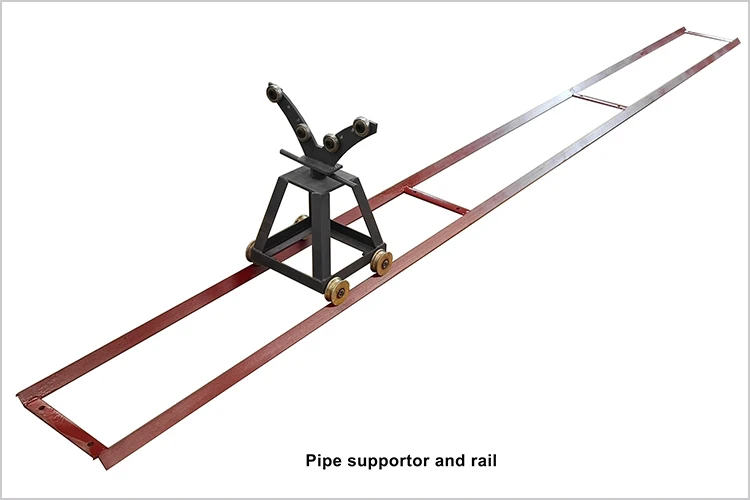

Numbers of pipe supporter

1 piece

12

Torch lifting distance (Z)

150mm



 Cutting sheet metal

Cutting mode

Flame cutting + plasma cutting

Materials to cut

Mild steel, carbon steel, stainless steel, aluminium, etc

Cutting range

1500mm×2500mm, 1500mm×3000mm, 1500mm×6000mm, etc

Maximum cutting width

1,500mm

Maximum cutting length

6,000mm

Flame cutting thickness

8-200mm

Plasma cutting thickness

≤30mm depending on plasma power source

Vertical stroke of cutting torch

≤120mm

Cutting speed

1-3500mm/minute

Control system

F2100B

Driving system

stepper motor

Working language

English, French, Spanish, Portugues, Russian, etc

Software

Fastcam, Starcam, etc

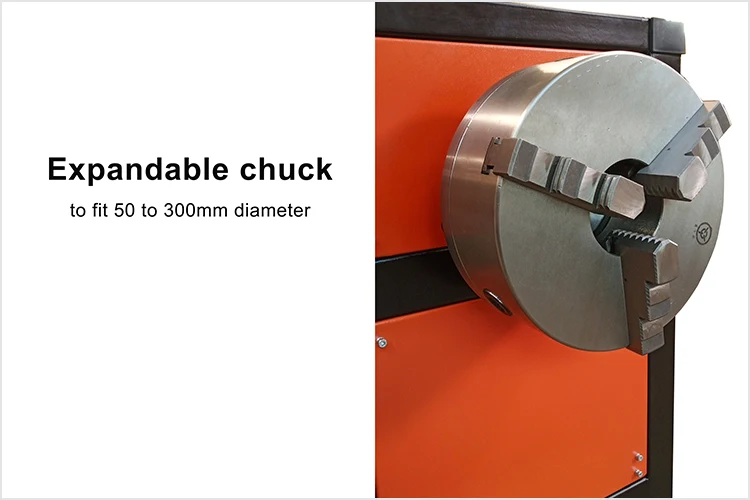

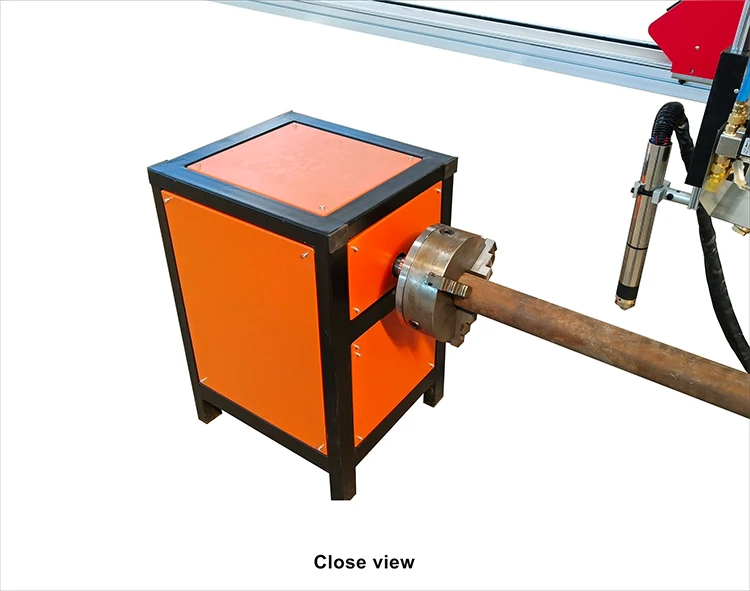

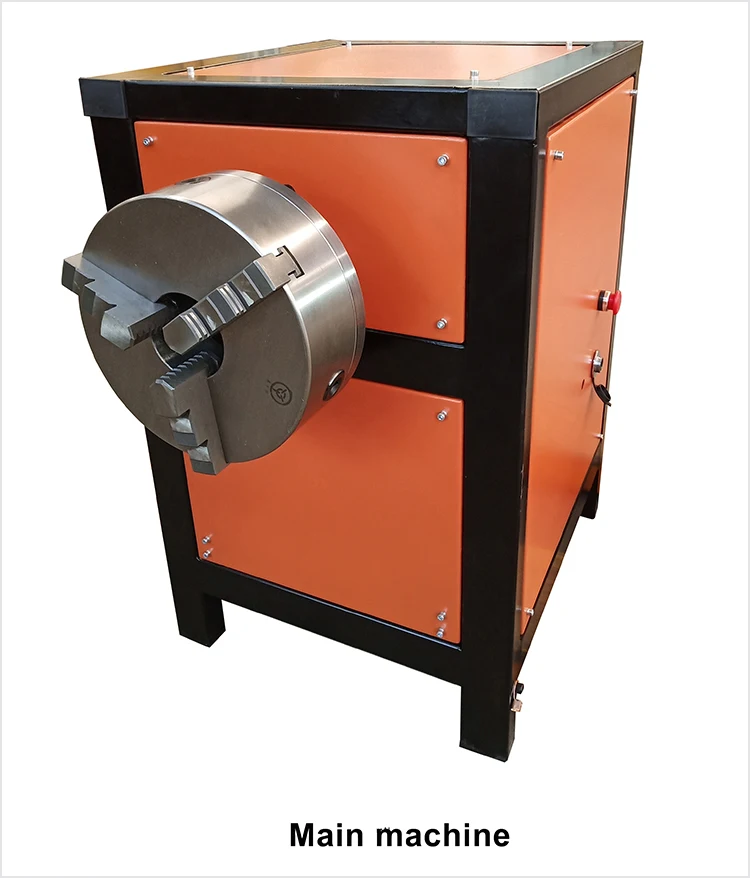

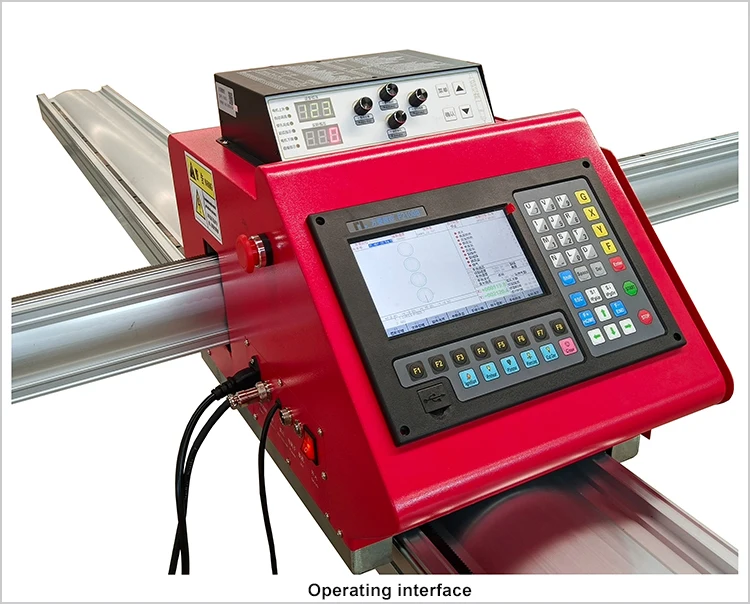

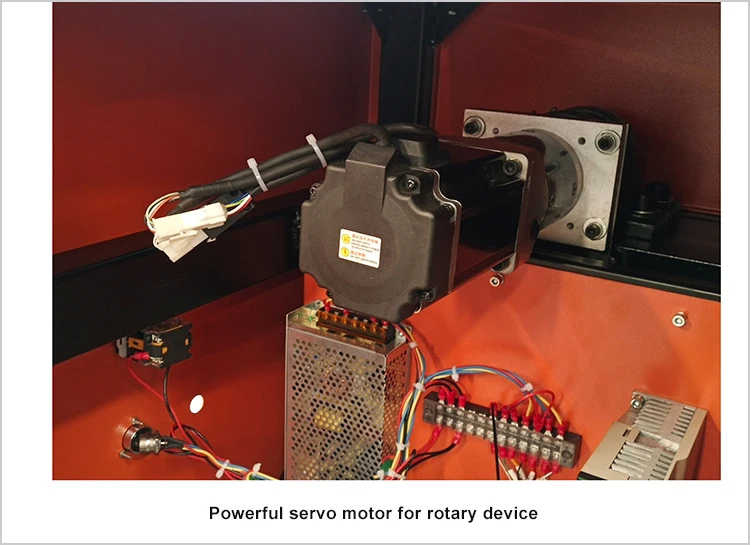

4.Machine details

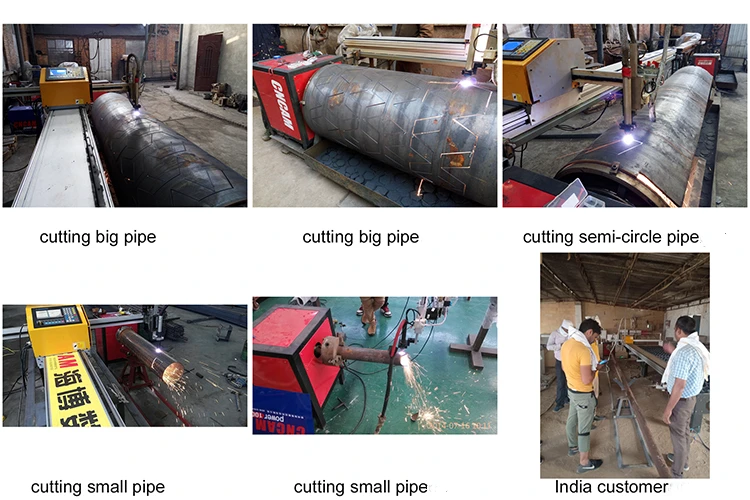

5. Cutting photos



Company Information

 Xuzhou Haibo CNC Technology Co.,Ltd is a company integrating R&D, production and sales. The company started from year 2000 when we developed software of engraving machines. The company was incorporated in 2003, producing CNC engraving machines. In 2005 we started developing software of CNC cutting machines. In 2007 we started producing CNC cutting machines. Currently our products are various CNC Plasma Cutting Machines, CNC Flame Cutting Machines, Fiber Laser Cutting Machines, etc. The company has its own patented controlling system, products have been exported to Poland, Russia, Ukraine, India, Egypt, Thailand, etc.
