HUAIGE 1 ton 2 ton 25 meter Electric Stage Chain Hoist

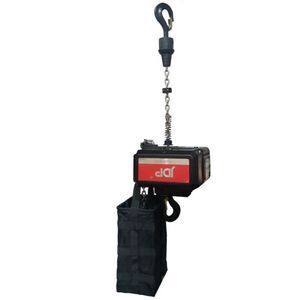

Huaige JDP brand Electric Stage Chain Hoist

The body is made in cast aluminium to be as light, yet as strong as possible. The matt black finish is corrosion resistant and non reflective.

Gear Box is manufactured with a thicker aluminum wall, comparing to the rest of the body, to respond to the very stringent mechanical requirements.

The chain bag bracket allows the hoist to be used motor up or down. The design ensures the bag is positioned correctly to accept chain without the need for any adjustment, reducing the chance of chain spills.

Fluid Bath, the dynamic fluid lubricant used for the gearbox, reduces friction and surface wear. As a direct result, noise level, reliability and durability are miximized while maintenance is minimized. The special type of dynamic fluid is high pressure resistant and keep its volume and lubrication capabilities up to 180 degree temperature.

Self climbing or standard suspension without any adjustments reqired. Swivel hooks on the chain and body reduces the risk of chain twist and allows easy positioning.

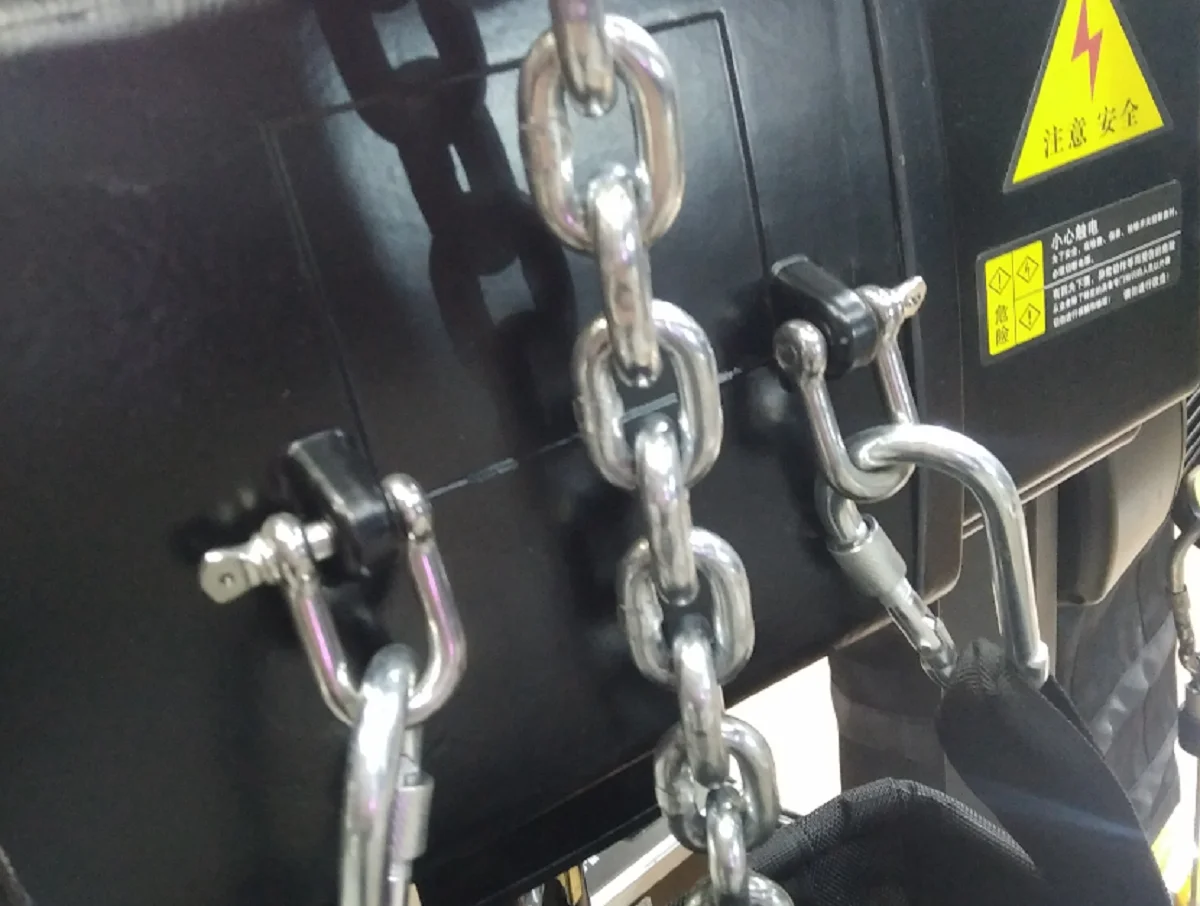

External chain guide made from a special PVC is used tp minimise the chance of chain jamming should the chain become twisted. This sacrificial plate helps protect both the chain and internal chain guides.

Iron and asbestos free brake shoes and stainless steel brake discs will not rust in the presence of moisture, preventing brake assemblies from seizing.

Cluth outside the load path positioned on the motor shaft in front of the motor assembly. With this arrangement, the brakes will hold the load in the unlikely event of a clutch failure.

Double brake. Model Su are supplied with double brake as standard. The brakes are supplied as complete units which allows for trouble free use and quick and ewasy inspection.

Model Su hoist are CE MARKED in acordance with the requirements of the MACHINERY DIRECTIVE 2006/42/EC.

Please kindly note: JDP Guangzhou Technology Co.,Ltd. is the only export office of Huaige Group.

Please never believe other fake companies.

And all the email from my company should be @huaigegroup.com

More details about the product please kindly check with us export @huaigegroup.com

Whatsapp & Mobile phone Number: 008613930229687

Thanks for your business!

Hebei Huaige Hoisting Machinery Group Co.,Ltd. was founded in 1999 in Baoding. Today, the Huaige is a global player. Its main development and production facility in China, offers future-oriented solutions with various hoists and other lifting tools for a wide range of applications.

As a famous hoisting tools manufacturer, we have assembled the most complete & professional Testing Line in hoisting field in China. Every product will be perfact both in performance and appearance.

For hoisting, moving, pulling, driving and conveying, our Huaige lifting means, Huaige Electric Hoists, Manual Hoist, Lever Hoists, Chain, Transportation trolleys also other hoisting tools are a guarantee of quality, innovation and safety. Each product we produced was inspected by our experienced technician who had over 30 years research and producing experience, and we also use strict quality control testing system to ensure the products' stability and durability.

Our Huaige family has an annual turover of 58 million USD, and currently has over 200 employees working in our production facilities, and we extended our business in over 80 countries worldwide.

In Tradition of Dynamic Innovation “that is in the tradition of a modern and dynamically growing family organization, the Huaige Group has officially been nominated as a Hidden Champion of the 21st Century because we are in our defined sectors worldwide leader in quality and technology.
