Product Name: | Permanent Magnetic Lifter; | Material: | NdFeB; |
Packaging Detail: | Wooden Case; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
After-sales Service Provided: | Field installation, commissioning and training; | Feature: | Safe Automatic Permanent-magnet Cupule; |
Warranty: | 1 Year; | Dimension(L*W*H): | 120*30*56; |
Brand Name: | JDP; | Safety Factor: | 3.5 Times; |
Application: | Industrial Magnet; | Advantage: | Easy Operation; |
Usage: | Material Handling; | Composite: | Permanent NdFeB Magnet; |
Color: | Customzied; | Port: | Tianjin port/ Guangzhou/ Shanghai; |
Capacity: | 100kg-5000kg; | Place of Origin: | Hebei China; |
Supply Ability: | 300 Piece/Pieces per Month; | Condition: | New; |
Certification: | CE ISO TUV; |

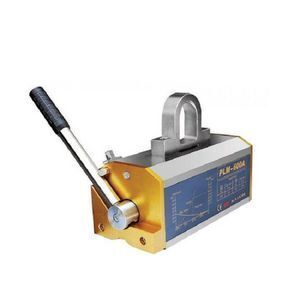

Permanent Magnetic Lifter
Product Induction
Magnet lifter has strong magnetic path produced by NdFeB magnet. On and off magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply. They are been used to lift and transport the steel and iron for factories, docks, ware houses, and so on.
Features for portable magnet lifter for steel plate:
1.Nd-Fe-B Magnet as core component,smaller size,stronger lifting force and lasting magnetic force.
2. High safety factor up to 3.5 times pulling-out force than rated lifting
3. V style design at the bottom of lifter,can lift opposite round steel or steel board
4. Easy to use and free to power
5. Optimized magnetic circuit design makes residual magnetism almost zero
6. Professional appearance design makes product more attractive
Usage
Widely use for lifting flat mechanical parts and steel,and in some mechanical manufacturing industries,such as machine-building plant,machining center,shipping building industry etc.
Using high-performance permanent magnetic materials, Strong in magnetic suction, patent circuit design, remanence almost zero.
High safety factor, maximal breakway force is 3.5 times rated lifting power.
Handle switches with safety twist, easy for Single-hand operation, more safety and convenience.
V style design at the bottom of lifter,can lift opposite round steel or steel board.
Magnet lifter without electricity, magnetic lasting popularity, more safety on using, aside may operated at open country.
We also have other lifting magnet.
Model | Rated Lifting Capacity(KG) | Dimension(mm) | Max Breakaway Force(N) | Net Weight(KG) | |||
Length | Width | Height | Handle Length | ||||
SYB-100 | 100 | 90 | 63 | 68 | 146 | 350 | 3 |
SYB-400 | 400 | 160 | 95 | 180 | 160 | 1400 | 11 |
SYB-600 | 600 | 220 | 115 | 125 | 230 | 2100 | 22 |
SYB-1000 | 1000 | 260 | 145 | 145 | 280 | 3500 | 40 |
SYB-2000 | 2000 | 340 | 160 | 165 | 410 | 7000 | 60 |
SYB-3000 | 3000 | 420 | 185 | 185 | 510 | 10500 | 90 |
SYB-5000 | 5000 | 580 | 300 | 300 | 650 | 17500 | 400 |
This is the information for standard 3times safety factor magnet lifter.
