Mechanical test report: | if | Core components: | Bearings, gearboxes, motors, gears |
weight: | 3kg - 300kg | brand: | VOHOBOO |
Warranty: | 1 year | Weight (kg): | 50 kg |
Core component warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Health status: | new | Dimensions (L*W*H): | models of different sizes |
Package preview: | product name: | Permanent Magnetic Lifter | |
port: | Shanghai, Tianjin, Qingdao, Shenzhen and other Chinese ports | Marketing Type: | 2019 Hot Products |
brand: | VOHOBOO | Packaging Details: | Portable Crane Magnetic Lifter 500kg 1 Ton 2 Ton Lifting Permanent Magnet From CE Approved Supplier Standard Composite Wooden Box With Styrofoam |
Showroom location: | not any | Material: | NDFEB magnet + steel body |
shape: | square | Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies |
Safety elements: | 2.5, 3.5 times | application: | Lifting steel plate |
Video shipment inspection: | if | color: | yellow or customized |
Origin: | Hubei, China | Supply capacity: | 10000 sets per month |
Rated lifting capacity: | 100kg-6000kg |

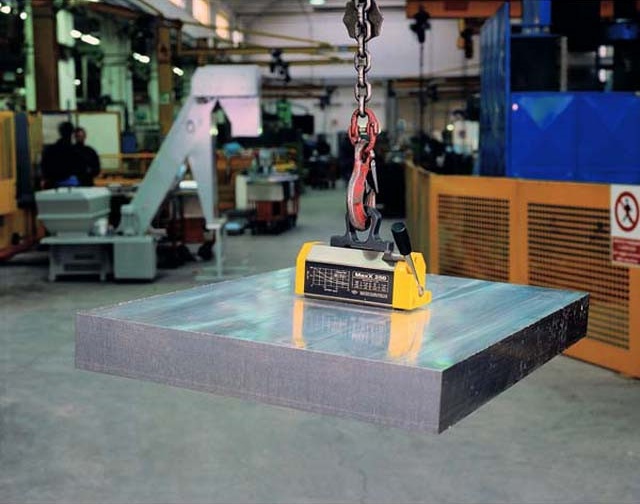

The permanent magnet lifter can greatly improve the clamping efficiency of magnetic steel materials. The permanent magnet lifter is based on the high-performance rare earth material NdFeB, and is rotated by pulling the suction cup handle, thereby changing the NdFeB magnetic system in the inner chimney, and will be sucked or released by the workpiece. The permanent magnet lifter is an important tool in the mechanical processing fields such as machinery factories and mold factories.
Widely used magnetic clamps.

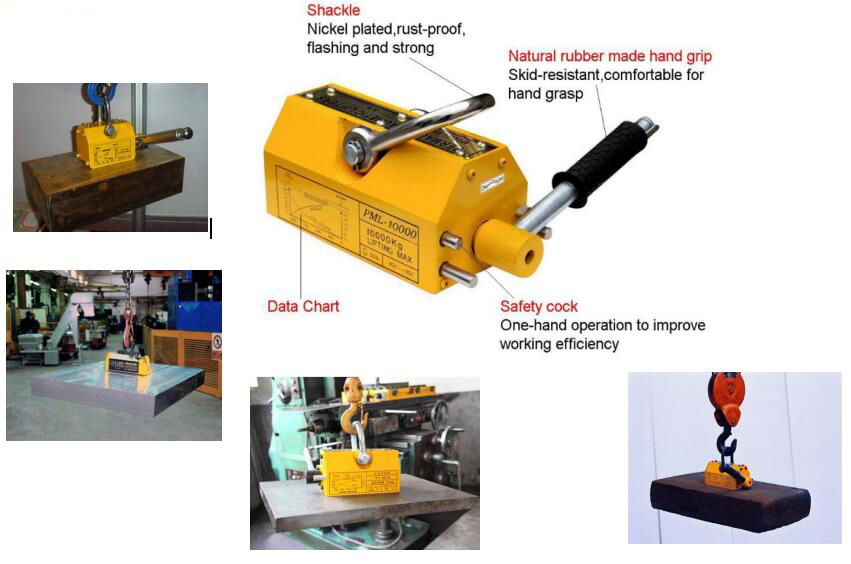

1.With NdFeB magnets as the core components, the volume is smaller, the lifting force is stronger, and the magnetic force is durable.
2.The safety factor is high, and the pulling force is 3.5 times of the rated lifting capacity.
3.The V-shaped design at the bottom of the lifter can lift the opposite round steel or steel plate.
4.Easy to use and requires no power.
5.The optimized magnetic circuit design makes the residual magnetism almost zero.
6.Professional appearance design makes the product more attractive.
More cases of pPermanent Magnetic Liftertrade...
Model | Lifting capacity (kg) | aspect | net weight/kg) | ||||
iron plate | Cylindrical | length | width | high | deal with | ||
PML-100 | 100 | 50 | 92 | 62 | 69 | 155 | 3.2 |
PML-200 | 200 | 100 | 130 | 65 | 69 | 155 | 5.4 |
PML-400 | 400 | 200 | 160 | 95 | 95 | 200 | 11 |
PML-600 | 600 | 300 | 210 | 120 | 120 | 230 | 20 |
PML-1000 | 1000 | 500 | 260 | 150 | 140 | 255 | 40 |
PML-1500 | 1500 | 750 | 340 | 150 | 140 | 255 | 48 years old |
PML-2000 | 2000 | 1000 | 400 | 170 | 170 | 320 | 74 |
PML-3000 | 3000 | 1500 | 440 | 170 | 170 | 380 | 105 |
PML-5000 | 5000 | 2500 | 600 | 230 | 215 | 600 | 248 |
