2.5 ton manual manual high lift truck

Supplier: Wuhan Vohoboo Import & Export Trade Co., Ltd.
Region: Hubei, China
Contact: Ms Anny Chen
Price: $68.00 / >=30 sets
Min. Order: 30 sets

Click here to contact

Product details

R:	2000kg/2500kg/3000kg/5000kg	brand:	VOHOBOO
model:	alternating current	Model:	AC/DF 2000/2500/3000/5000
Wheel Material:	PU/Nylon/Rubber	Capacity (load):	1-10T
Name:	Manual pallet truck	Fork length:	900mm/1150mm/1220mm
Supply capacity:	1000 pieces per month	port:	Shanghai, Qingdao, Ningbo, etc.
Warranty:	1 year	wheel:	rubber wheel
Packaging Details:	Standard export packaging for hydraulic manual pallet trucks in China.	Packaging Preview:
Custom Support:	OEM, ODM	place of origin; place of origin:	Hubei, China
Overall fork width:	450mm/550mm/685mm	Lift drive/drive:	hand, hand
color:	red/yellow/orange/blue	payment terms:	L/C,Western Union,D/P,D/A,T/T,Paypal
maximum. Lifting height:	200mm

Follow and contact us now to enjoy 10% discount! ＞＞＞

Product Description

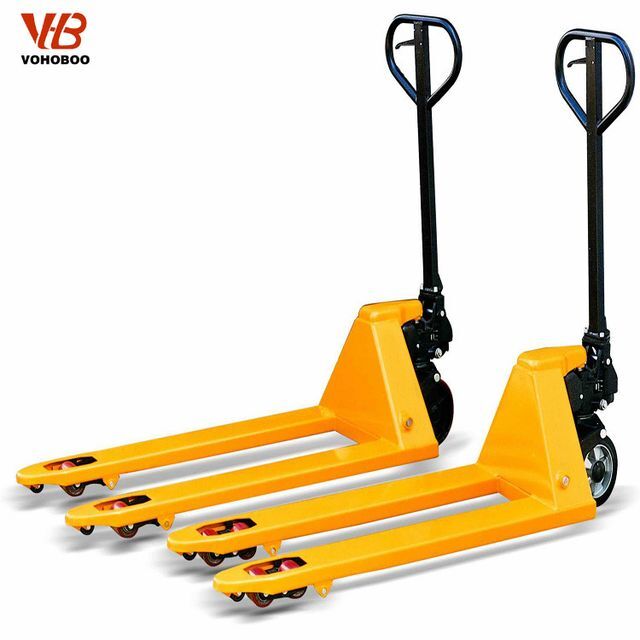

High Quality Manual Pallet Truck Pallet Truck for Transporting Goods

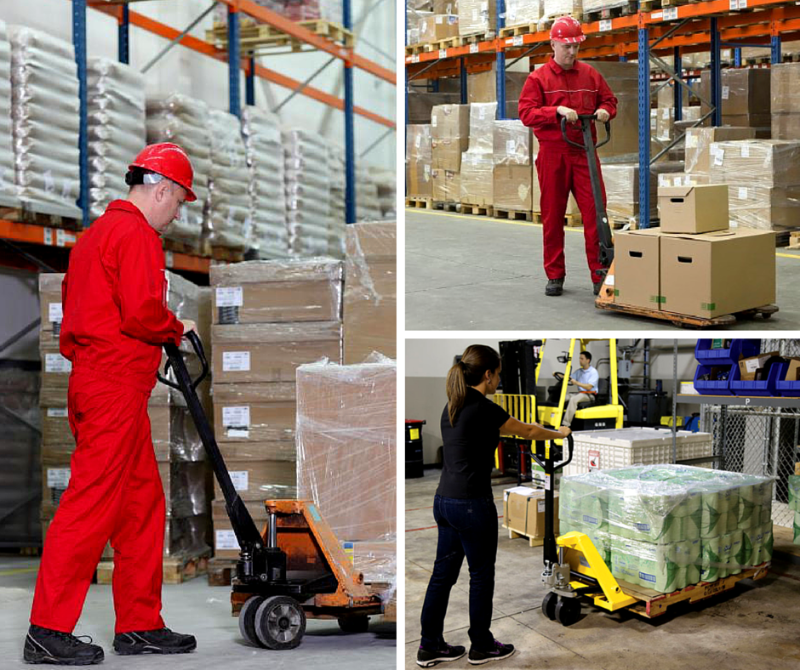

Manual pallet jackIt is composed of small volume hydraulic device, handle, fork and wheel. It is used for manpower mobile machinery and equipment, and the internal relief valve provides overload protection to avoid overload use and reduce maintenance costs. Widely used in logistics, warehouses, factories, hospitals, schools, shopping malls, airports, stadiums, station airports, etc.

Description: The fork is transported into the pallet hole, the hydraulic system is driven to realize the lifting and lowering of the pallet goods, and the handling operation is completed by manpower. It is the simplest, most efficient and most commonly used handling and handling tool for pallet conveyors.

Manual pallet truck

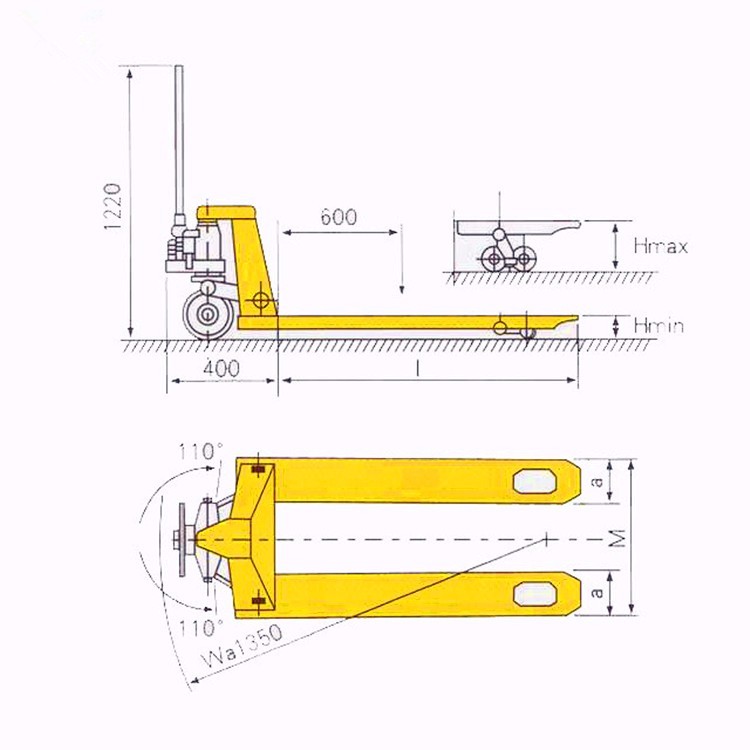

Model	VHB-2	VHB-2.5	VHB-3	VHB-5
Capacity (kg)	2000	2500	3000	5000
Minimum fork height (mm)	75
Maximum fork height (mm)	195
Maximum lifting height (mm)	>=110
Overall width(mm)	550			685
Fork length (mm)	1200
Fork size (mm)	150*55			160*60
Loading wheel(mm)	80*70
Steering wheel(mm)	180*50
Net weight/kg)	68	73	80	130

2018 China Manual Manual Pallet Truck Pallet Jack 2500kg Weighing

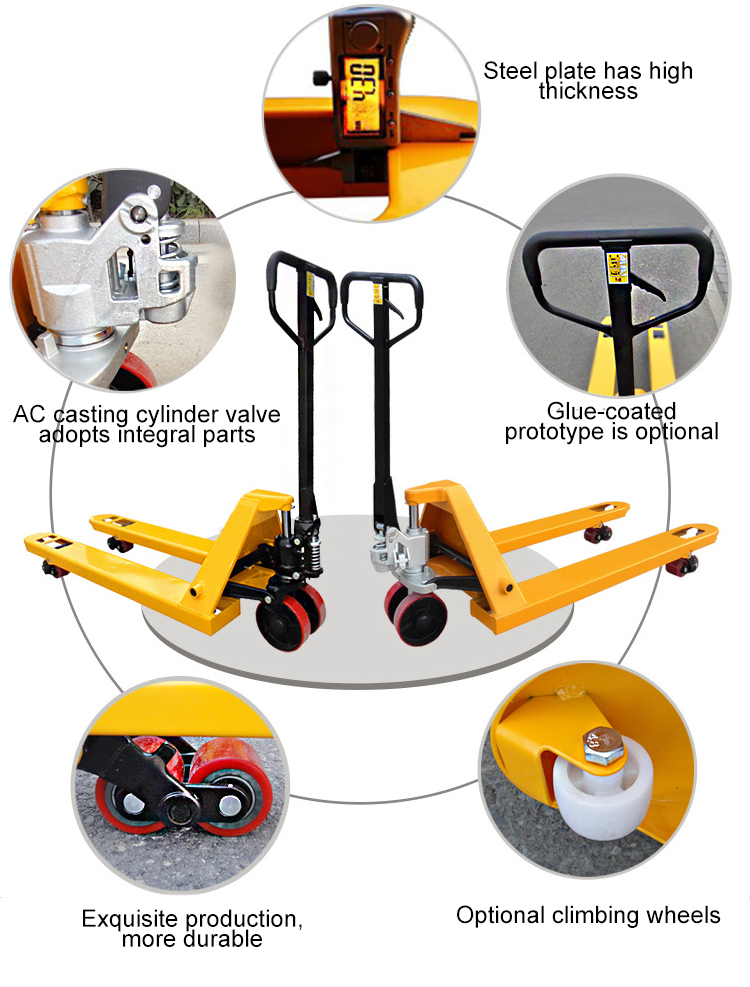

1. No oil leakage.

2. Easy to carry and hoist.

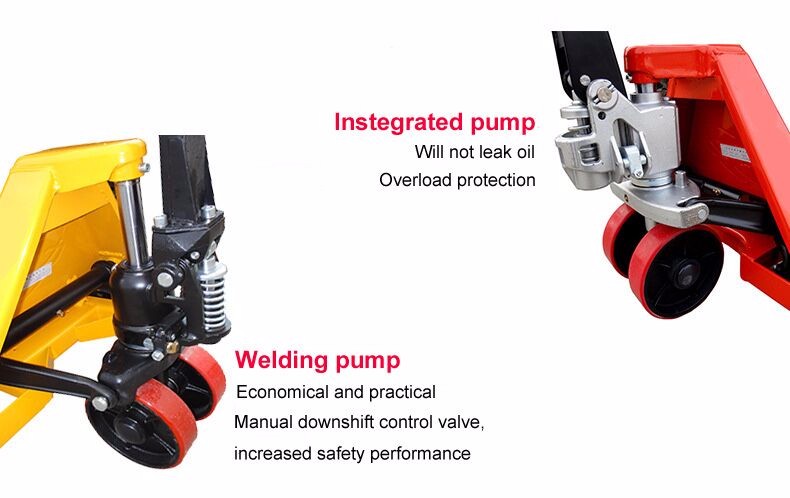

3. Welded pump body, hard chrome-plated piston rod, wear-resistant and corrosion-resistant.

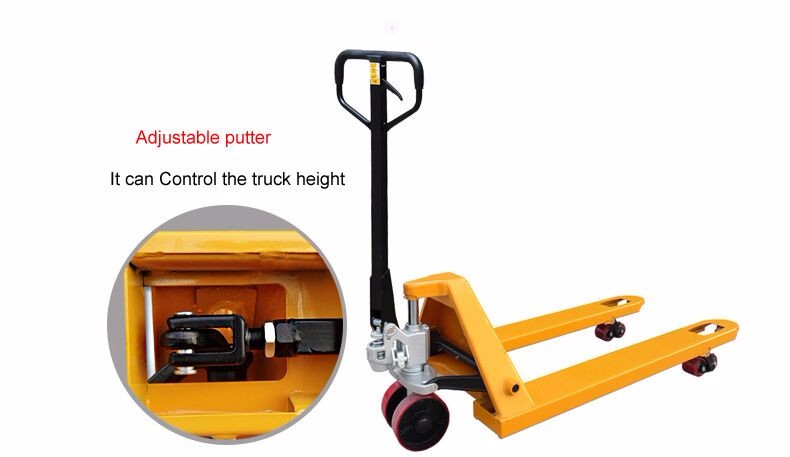

4. With adjustable push rod to ensure the stability of the fork.

5. Special specifications can be produced according to the special requirements of customers.

6. Handbrake/drive trolley.

7. Simple 3-position control handle.

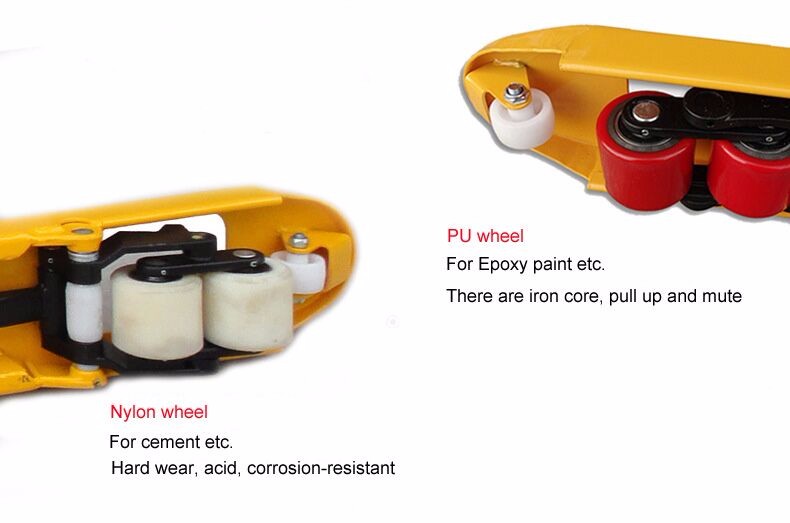

8. Options: Nylon Wheels, Rubber Wheels, Single Fork Load Wheels or Double Fork Load Wheels.

Manual pallet truck features:
Safely designed ring handle including intermediate position and fingertip release.
1. Spring-o-matic handles self-return.
2. Motorized 215° swivel action in a compact area.
3. One-piece steel "C" groove tapered reinforced fork.
4. Leak-proof pump ensures maintenance-free service.
* Hard chrome plated plunger and piston
* Polyurethane seals and wipers
*Large steering wheels with "ball thrust" steering
* Entirely sealed ball bearing
* Bearings at all pivot points can be easily lubricated
* Tapered fork ends and nylon rollers facilitate pallet in and out
* Available with nylon or polyurethane wheels and load rollers
* Only 1 snap ring and 4 pins are needed to remove the hydraulic unit
* Painted in a quality safe color after anti-rust treatment
