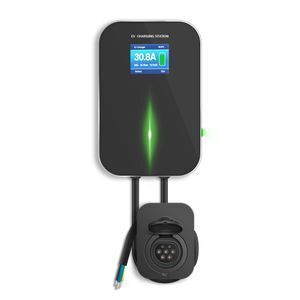

BESEN BS-B10 7.2KW Wall-Mounted EV Charging Station

Packing Details: Item No: BS-B10

                                       Packages: 1 carton inner box

                                       Size: 43*26*26(cm)/16.9*10.2*10.2(in)

                                       Weight: 5kg

Delivery Time:    2-5 days

BESEN 16A/32A (3.6kw/7.2kw) EV Charging Station

Product Specification

Model: BS-B10

Mode: A (with type2 socket)

Certificate: TUV, CE

Current: 16A/32A single phase/three phase

Power: 3.6kw/7.2kw

Size: 295mm*195mm*70mm

Weight: 5kg

Rated supply voltage: 220VAC

Rated operating frequency: 50Hz/60Hz

Charging control pattern: Auto/Button/Key/Card

Protection level: IP67

Key features

-High compatibility

It can charge all EVs manufactured in Europe and USA, correctly and effectively.

-Easy to install

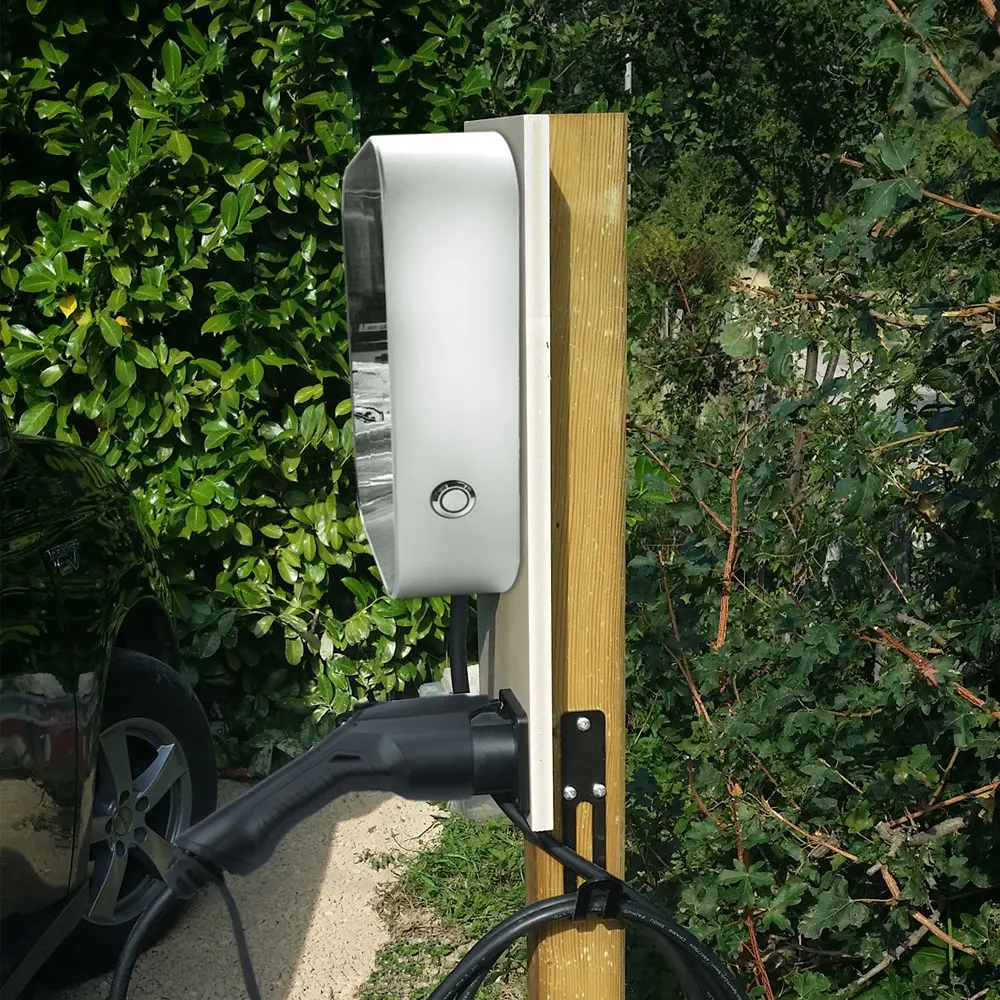

Products are sent to you with associated installation tools. You are able to install the charger indoor or outdoor. Firmly locking the charger on the installation backplane can prevent theft.

-Small size

This product is small and exquisite, and thus it is very easy to transport, store and install.

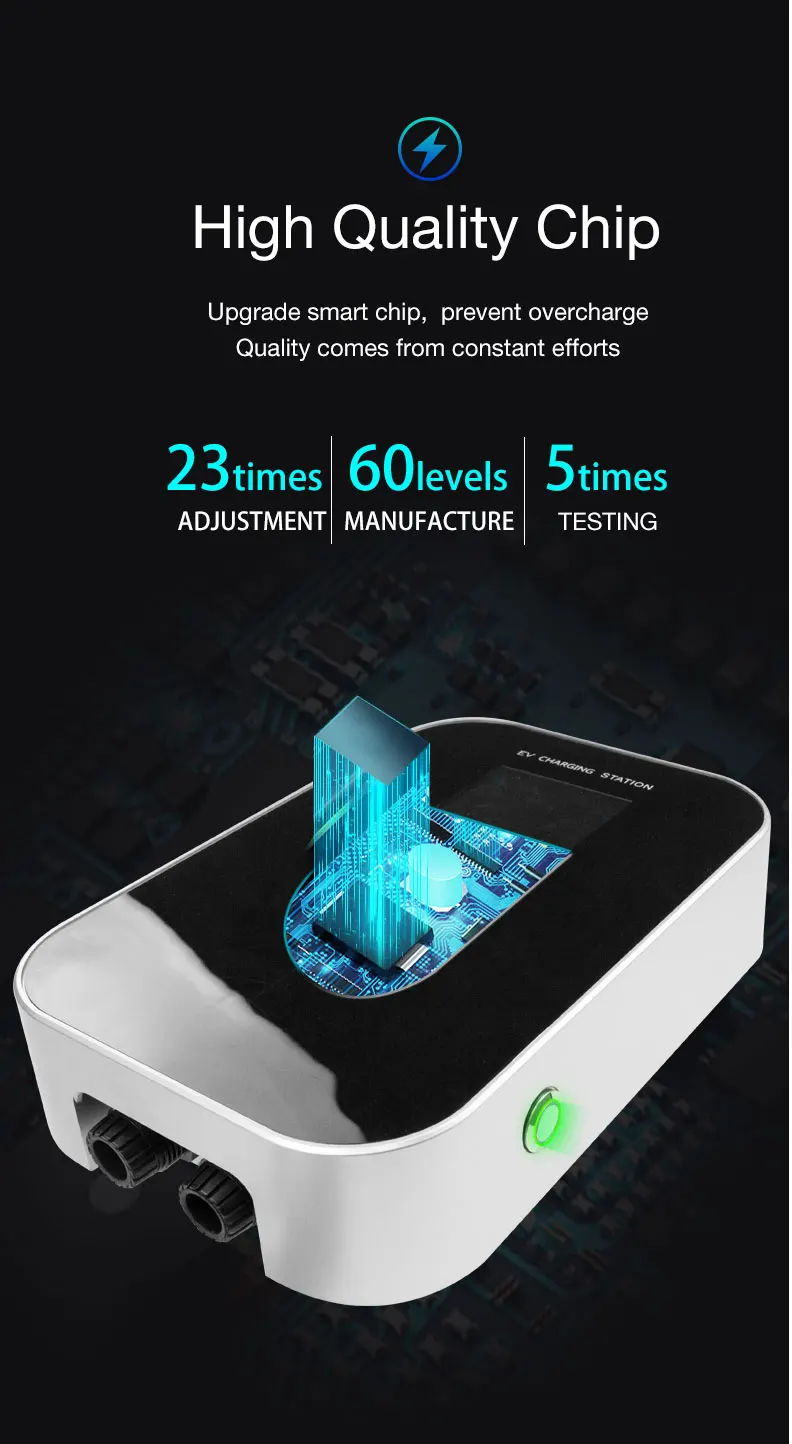

-Containing the intelligent chip

It can automatically repair minor charging problems while charging. When a fault occurs, the lights will blink in different ways to indicate different problems.

-LED Display

shows charging status via screen

How to use

Four options:

A. Automatic start charging

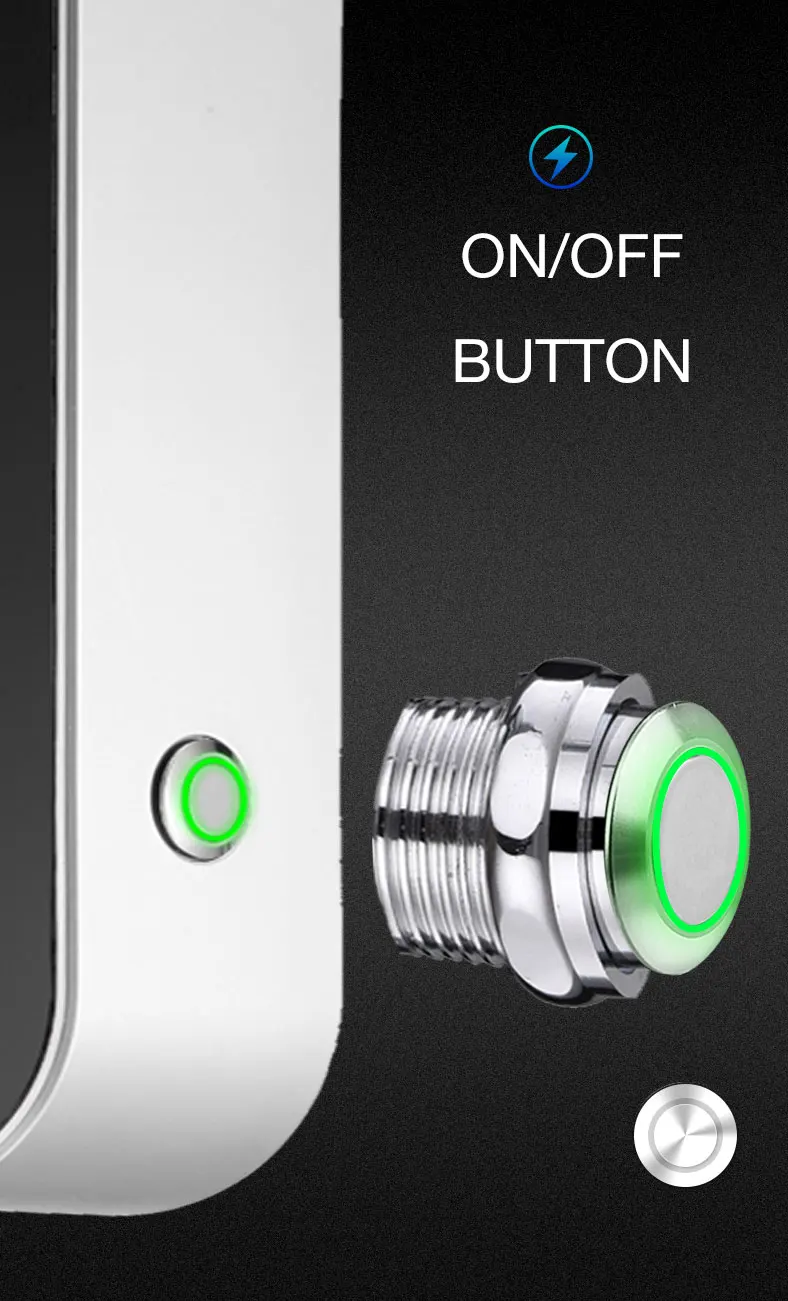

1. Turn on the power switch, the display shows the standby state, then starting completed;

2. As shown, plug in the charging plug, the charging station indicator shows green, when the charging lamp flashes, it means that the charging has started;

3.after charging is completed, pull out the cable and insert the cable into the socket or on the cable hook.

B. Button start charging

1. Turn on the power switch, the display shows standby, start complete;

2. As shown, plug in the charging plug, the charging station indicator shows green, press the right button of the charging station, when the button lights up as shown, the charging lamp flashes and flashes, indicating that charging has started;

3. After charging is completed, please press the button, pull out the charging cable, insert the cable into the socket or store it on the cable hook.

C. Key start charging

1. Turn on the power switch, the display shows the standby state, start the completion;

2. As shown, plug in the charging plug, the charging station indicator light is green, and there is a keyhole on the right side of the charging station. Insert the unlocking key and twist it 45 degrees to the right. When the charging lamp flashes, It means that charging has been completed;

3. After charging is completed, please pull out the key and insert the cable into the socket or on the cable hook.

D. Swiping start charging

1. Turn on the power switch, the display shows the standby state, start the completion;

2. As shown, plug in the charging plug, the charging station indicator shows green, use the charging card to start charging, when the charging lamp flashes, it means that charging has started.

3. Please re-swipe the card again and the charging is completed, then put the cable back into the socket or on the cable hook.

E. How to know the charging status

Good to know

-Persons who install and use charging poles must observe the principles and regulations to ensure the personal safety and equipment safety of the personnel concerned.

-Before powering on the device, please confirm that the device is properly grounded to avoid unnecessary accidents

-All tools used do not need exposed metal parts should be insulated to prevent exposed metal parts from touching the metal frame, causing a short circuit.

-Do not modify, retrofit, or change any part by yourself under any circumstances.

-Ensure the service life and operation of the charging pile are stable, and the environment for use of the equipment should be kept as clean, constant temperature and humidity as possible. The charging pile must not be used in the presence of volatile gas or flammable atmosphere.

-Be sure to confirm that the input voltage, frequency, circuit breakers and other conditions of the device have already met the specifications before the device is powered on.

Package including

Charging equipment assembly × 1

Wall mounting plate × 1

Fixed pegboard bolts and screws × 4

Contactless IC card (Optional) × 2

Instruction × 1

Charging station installation board × 1

Backplane locking screw × 2

Parts can be customized

Color, logo, design

Details Images

We have abundant experience of EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each of our customers.

We pay more attention to handle the detailed part of our products, hope to provide with our customers’ safety, difficult to damage and convenient operation in use.

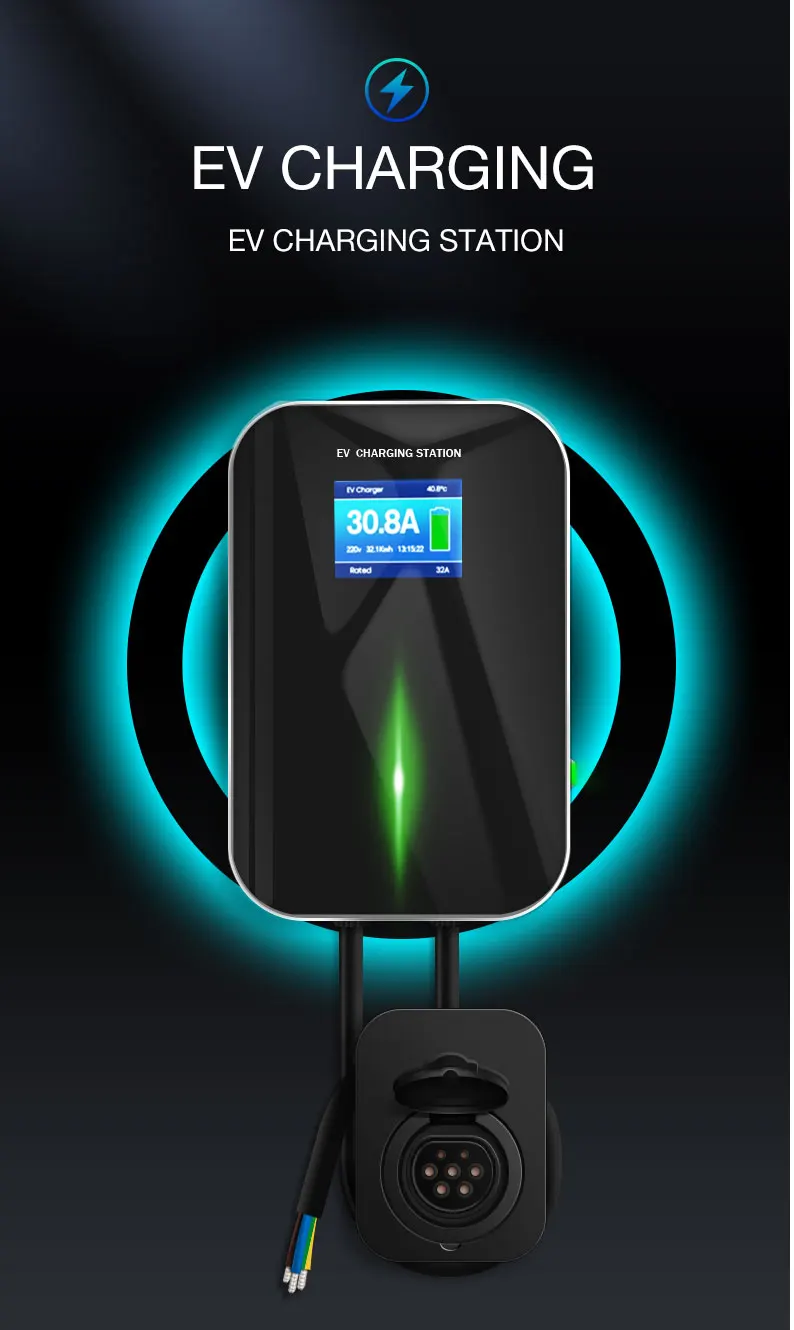

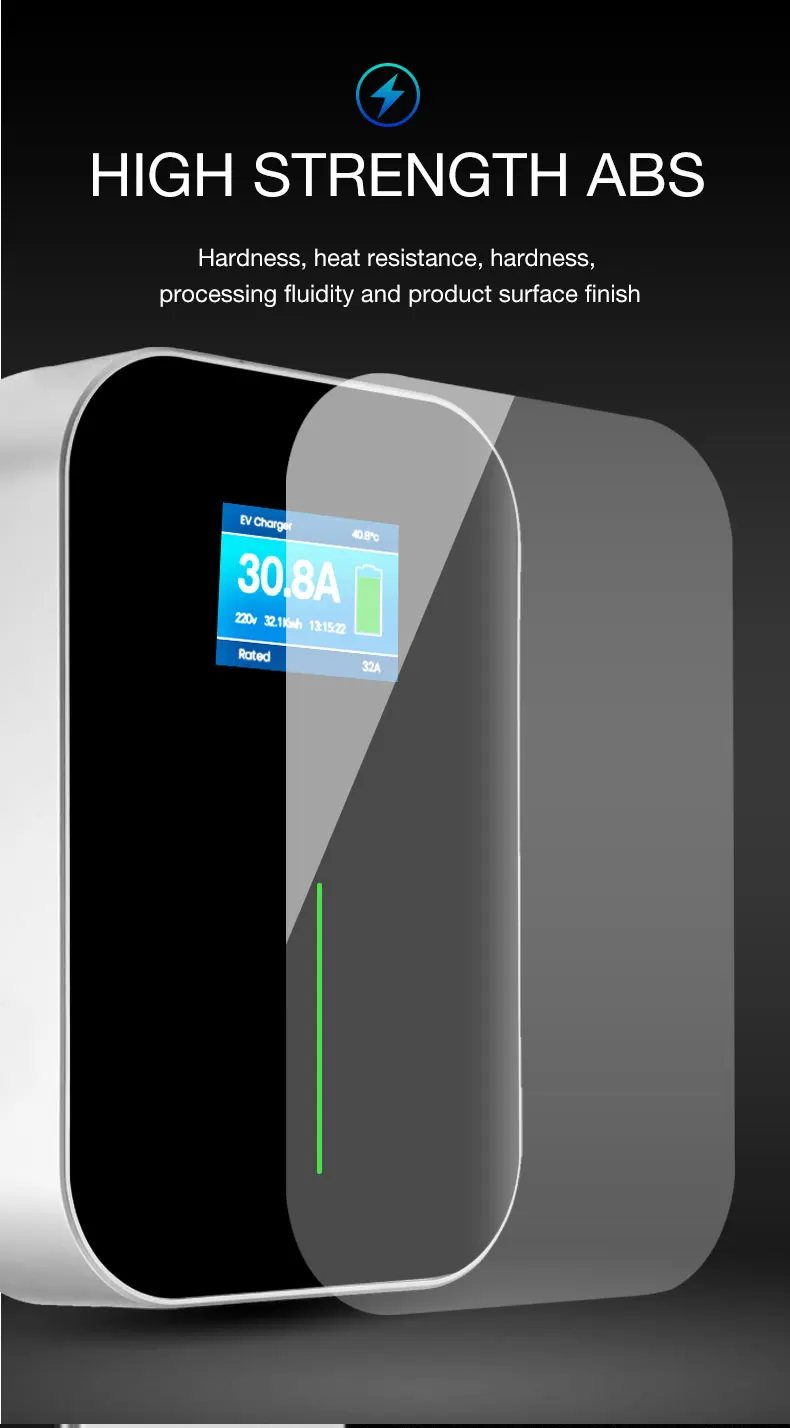

Here are some detailed pics about our BS-B10 ev charging station:

More information about our products, please contact us or visit our homepage:  https://besen-group.en.alibaba.com/

--CERTIFICATE--

Our EV products all have CE, TUV, UL certifications.  All our products have to pass strict inspections and repeated texts before they leave factory. Please contact us for detailed certificates.

Here are some customer’s common questions about our products :

1. What is your terms of payment?

We will recommend our customer to use different terms of payment based on difference in quantity of order.

Less than 1000 USD, generally choose the PayPal

More than 1000 USD, generally choose telegraphic transfer or Alibaba

If you need the detailed terms of payment, pls contact us.

2. I want to know more infos about your reputation.

d. We are Amazon Vendor.

b We are the Good Supplier recommended by Alibaba.

c. We have 3 stars in Transaction Level, which is already the highest level in this industry.

d. In the past year we have exported the most ev cables in China, which you can find some data on Alibaba.

3. I think T/T payment is not very safe for me, and L/C is a little trouble. Any advices?

You can have a try with Alibaba Trade Assurance. This is a new service released by the Alibaba.com, that means the account of payment is guaranteed by Alibaba !

It is very easy and safe:

a. You just need to confirm the order on Alibaba, and arrange the payment to Alibaba (not to us).

b. Alibaba notice us to send the goods to you after received your payment.

c. If you received the right goods in agreed time, Alibaba will send the money to us

d. If you didn't receive the right goods, Alibaba will return the money to you.

More and more customers on Alibaba are using this payment method to ensure the safty of their fund. What do you think?

More information about Trade Assurance, pls contact us or look up

http://tradeassurance.alibaba.com/bao/buyer_advertise.htm?tracelog=from_home_service : )

4. Do your products have quality certification? How long is the warranty time?

All of our EV charging products posses with CE, TUV certifications, J1772 products posses with UL certification. Generally speaking, the warranty time is 1 year.

5. How do you deliver your goods to me? How long will it take?

We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3days to 10 days due to the quantity of order, the level of busyness in production line.

6. Can we require you to print our trademark into your products? Do the color of plug and cable can be customized made according to our requirements?

We support OEM production, but the order quantity must be more than 100pcs.

The color of plug and cable can be customized made any colors on the basis of your requirements, the order quantity must be more than 200pcs.

7.  We need to connect the industry plug to J1772 plug with 7m length of cable, however, we don’t find the similar products in your website.

The products displayed in our website are mainstream products, we can connect any two kinds of plug, but some of which need certain quantity to be customized connection. If more detailed requirements, pls contact us.

8. How is your product quality? In case of problem occurs, what should I do?

Firstly, we sell our products for many years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will take place the new one for free.

If any problems not in the above-mentioned answers, you can contact us directly, we will help you to solve the problem with carefulness and patience.
