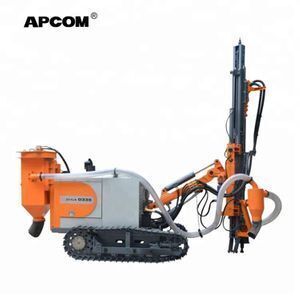

APCOM factory wholesale crawler dth borehole portable drilling rig price mobile china small mine drilling rig machine

Supplier: Shanghai APCOM Compressor Machine Co., Ltd.
Region: Shanghai, China
Contact: Mr Xu Jingqian
Price: $10900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Type:	Parts Standard export wooden box,machine is nude .;	Climbing angles (°):	30°;
Usage:	Ore;	Drilling Rig Model:	ZAYX-410B-3;
After-sales Service Provided:	Overseas third-party support available;	Drill pipe diameter (mm):	60;
Selling Units:	Single item;	Place of Origin:	Shanghai China (Mainland);
Package Preview:	https://sc01.alicdn.com/kf/HTB1szTdKf5TBuNjSspcq6znGFXab.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1rgccKbGYBuNjy0Foq6AiBFXay.jpg_640x640.jpg;	Max Drilling Depth:	50m;
The hole diameter (mm):	90-110;	Voltage:	No need;
Condition:	New;	Walking speed (km/h):	2.5;
Air consumption (m3/min):	7-13;	Warranty:	1 YEARS;
One-time advance length (m):	3.4m;	Single gross weight:	3,500 KG;
Dimension(LWH):	465190260cm;	Weight:	3180kg;
Power Type:	Diesel;	Delivery Detail:	0 days after payment;
Certification:	ISO9000;	Type:	Rotary Drilling Rig;
Using air pressure (bar):	7-15;	Power(W):	37KW;
Drilling depth:	20m;	Brand Name:	APCOM;
Single package size:	420X155X260 cm;

Drill Rig Intro

APCOM factory wholesale crawler dth borehole portable drilling rig price mobile china small mine drilling rig machine

Surface Drilling Rig
Surface drilling rig are used for blast hole drilling in construction, quarrying, and open-pit mining, covering a hole range between 45-305 mm. A total of 56 products.

1 ) Click ON -> Automated hydraulic drilling rig , 7 products found:

2 ) Click ON -> Anchor surface drilling rig , 3 products found:

3 ) Click ON -> Water well surface drilling rig , 8 products found:

4 ) Dowm-the-hole drilling rig, 28 products found:
    ( 16 products Click ON -> Separate DTH Rig );
    ( 4 products   Click ON -> Integrated DTH rig no cabin );
    ( 8 products Click ON -> Fully automatic DTH drilling rigs.)

Face drilling rig (Jubmos)
Face drilling rig (jubmos), Underground tunneling, 7 products found:
Click ON -> UP-45 / UJ-18 / UJ-19 / UJ-21 / UJ-33

Related Products

Separate Down-the-hole Drilling Rig

Integrated Drilling Rig

Separate Rig Parm

Drilling Rig,At Work, 1 additional air compressors must be added.

1 Separate Down-the-hole Drilling Rig

Drill Rig Model Click On	Rig Diesel Power	+ Air Compressor		Hole Diameter Range	Drill Hole Depth
Drill Rig Model Click On	Rig Diesel Power	F.A.D	Pressure	Hole Diameter Range	Drill Hole Depth
ZAYX-410B-3	37KW	7-13 m³/min	8-15 bar	90-110 (mm)	20 (m)
ZAYX-415	50KW	10-12 m³/min	8-15 bar	90-115 (mm)	25 (m)
ZAYX-420	58KW	8-20 m³/min	8-20 bar	90-140 (mm)	30 (m)
ZAYX-420D	Moter 30kw	8-20 m³/min	8-20 bar	90-140 (mm)	30 (m)
ZAYX-425	56KW	10-20 m³/min	8-20 bar	105-152 (mm)	30 (m)
ZAYX-430E	70KW	10-20 m³/min	8-20 bar	90-152 (mm)	30 (m)

Integrated Rig Parm

An integrated drilling rig, which means that the air compressor has been installed in the rig and is driven by the same diesel engine.

Model	Power	Compressor	Diameter	Depth	Cabin	Automatic Change Of Pipe
ZAYX-452	YUCAI 191 KW	15m³/min 17bar	108-127mm	20m	No	Yes
ZAYX-421T	YUCAI 140KW	10m³/min 15bar	80-100mm	25m	No	Yes
ZAYX-T422	Commins 93KW	3.4m³/min 7bar	42- 89mm	15m	Yes	No
ZAYX-T423	Commins 119KW	4.7m³/min 9bar	64-102mm	17m	Yes	Yes
ZAYX-T424	Commins 179KW	8.0m³/min 10bar	76-115mm	25m	Yes	Yes
ZAYX-T425	Caterpiller 168KW	8.0m³/min 10bar	76-115mm	25m	Yes	Yes
ZAYX-423	YUCAI 162KW	11m³/min 15bar	90-115mm	25m	Yes	Yes
ZAYX-453	YUCAI 230KW	16m³/min 17bar	90-138mm	25m	Yes	Yes
ZAYX-454	Commins 266KW	20m³/min 18bar	110-152mm	28m	Yes	Yes
ZAYX-455	Commins 287KW	20m³/min 24bar	138-165mm	35m	Yes	Yes
ZAGA-470	YUCAI 294KW	20m³/min 24bar	138-178mm	40m	Yes	Yes
