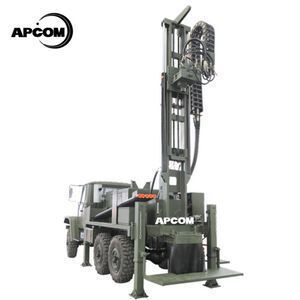

Wholesale APCOM trailer mounted water well drilling rig truck mounted water well drill rig truck-mounted water well drilling rig

Supplier: Shanghai APCOM Compressor Machine Co., Ltd.
Region: Shanghai, China
Contact: Mr Xu Jingqian
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 YEARS;	Engine:	diesel 140kw;
Brand Name:	APCOM;	Drilling depth:	700m;
Dimension(LWH):	610220290cm;	After-sales Service Provided:	Overseas third-party support available;
Single gross weight:	3,500 KG;	After-sales Service Provided:	Video technical support,Online support;
Max Drilling Depth:	800m;	Applicable Industries:	Construction works ,Energy & Mining;
Power Type:	Diesel;	Type:	Rotary Drilling Rig;
Air consumption (m3/min):	17-35;	Delivery Detail:	0 days after payment;
Package Preview:	https://sc02.alicdn.com/kf/HTB1bNWEV7voK1RjSZFN763xMVXa2.png_640x640.png;	Single package size:	420X155X260 cm;
One-time advance length (m):	6.6m;	Weight:	13000kg;
Selling Units:	Single item;	Drill pipe diameter (mm):	102 / 108 / 114;
Place of Origin:	Shanghai China (Mainland);	The hole diameter (mm):	140-400;
Condition:	New;	Package Type:	Parts Standard export wooden box,machine is nude .;
Walking speed (km/h):	2.5;	Voltage:	/;
Usage:	Water Well;	Using air pressure (bar):	17-30;
Certification:	ISO9000;

water drilling rig

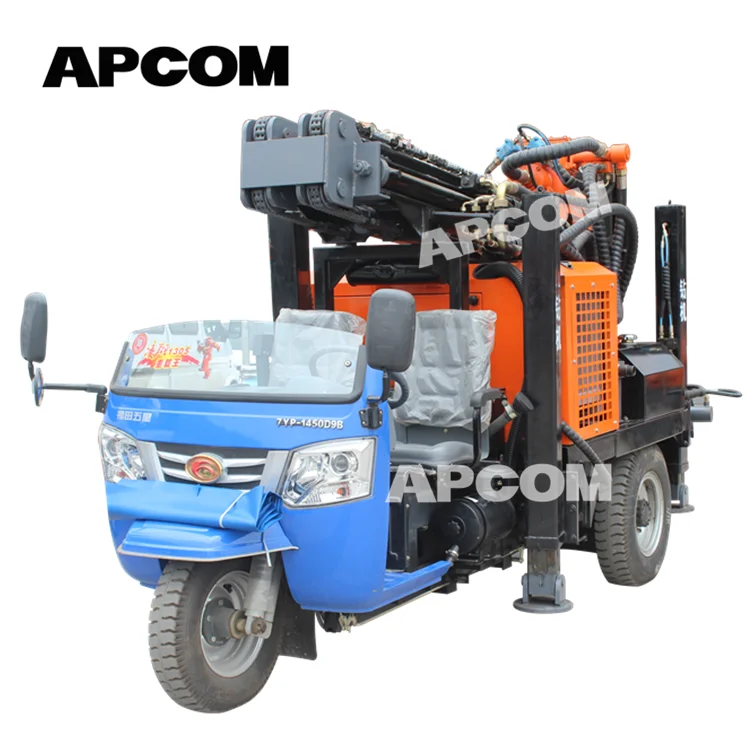

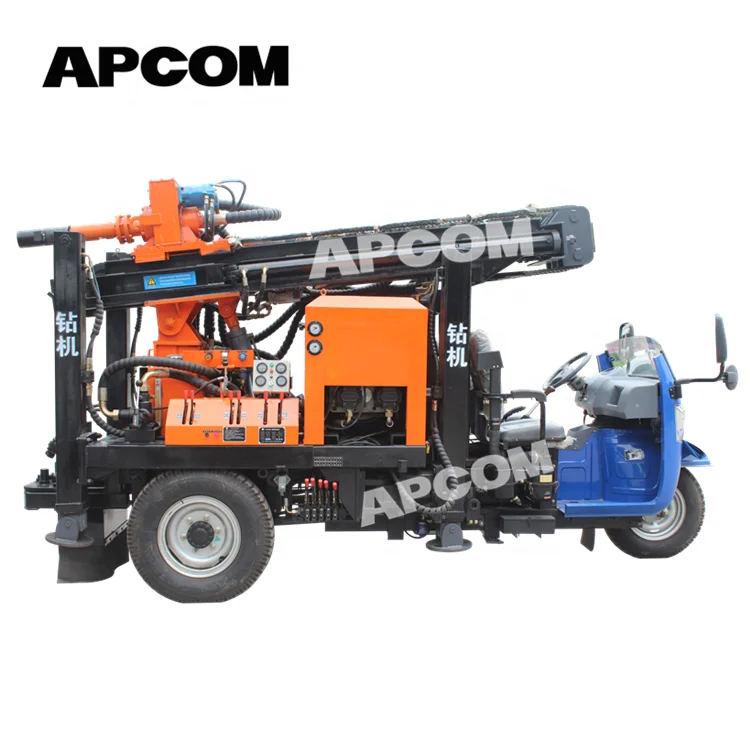

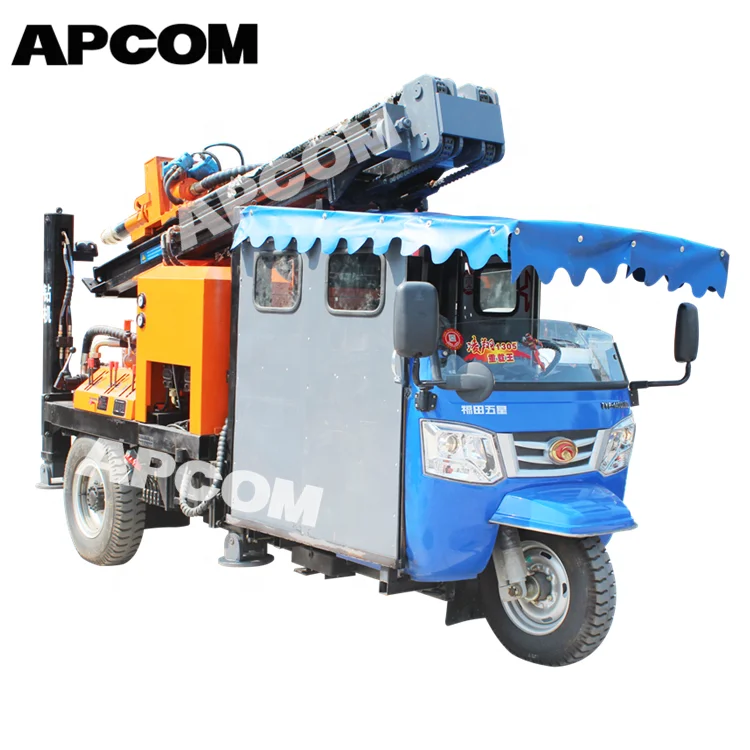

Tractor Drilling Rigs

Crawler-type water well drilling rigs

Specifications

	SJ200	SJ300	SJ450	SJ600	SJ800
Drilling depth (m)	200	300	450	600	700
The hole diameter (mm)	Ф140-305	Ф140-325	Ф140-350	Ф140-350	Ф140-400
Equipped capacitor (kw)	65KW	75.8KW	92KW	115KW	140KW
One-time advance length (m)	3.4	3.4	6.6	6.6	6.6
Walking speed (km/h)	2.5	2.5	2.5	2.5	2.5
Climbing angles (°)	30°	30°	30°	30°	30°
Using air pressure (bar)	17-30	17-30	17-35	17-35	17-35
Air consumption (m3/min)	17-30	17-30	17-35	17-35	17-42
Drill pipe diameter (mm)	Ф76 Ф89	Ф89 Ф102 Ф76	Ф102 Ф108 Ф89	Ф108 Ф114 Ф102	Ф108 Ф114 Ф102
Drill pipe length (m)	1.5/2.0/3.0	1.5/2.0/3.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0	1.5/2.0/3.0/6.0
Rig lifting force (T)	12	16	24	28	30
Swing torque (N.m)	3500-4800	5700-7500	7000-10000	8500-11000	8850-13500
Weight (kg)	58000	70000	11000	12000	13000
Dimension LWH (cm)	400175245	410195260	590215285	600220285	610220290

Other 3 additional well drilling rigs

	SJ180	SJ350	SJ450
Drilling depth (m)	180	350	450
The hole diameter (mm)	Ф140-254	Ф140-325	Ф140-350
Equipped capacitor (kw)	55 KW	84 KW	92 KW

down-hole drill rig

Electric motor drive small water well drilling rigs

Model	Moter power	The hole diameter	Drilling depth
KT70	3 KW	Φ76 mm	25 m
KT100	4 KW	Φ90 mm	35 m
KT120	5.5 KW	Φ90 - 115 mm	55 m
KF180D	7.5 KW	Φ100 - 219 mm	180 m
KF200D	11 KW	Φ100 - 219 mm	200 m

Product Video

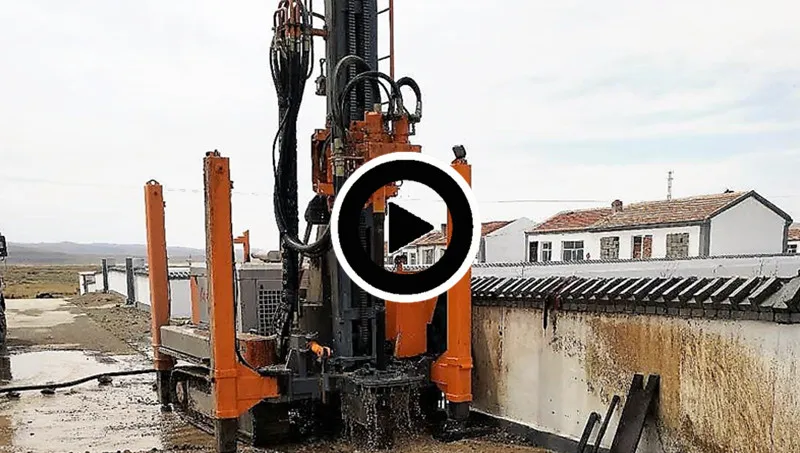

SJ450 Water Well Drilling Video

Drilling Rigs Product Line

Drill Oipe And Casing

How To Install Drill Pipe And Casing

Drill bits are installed below the drill pipe, and the second drill pipe and casing are installed after the first drill pipe is pushed underground.

Now! working!

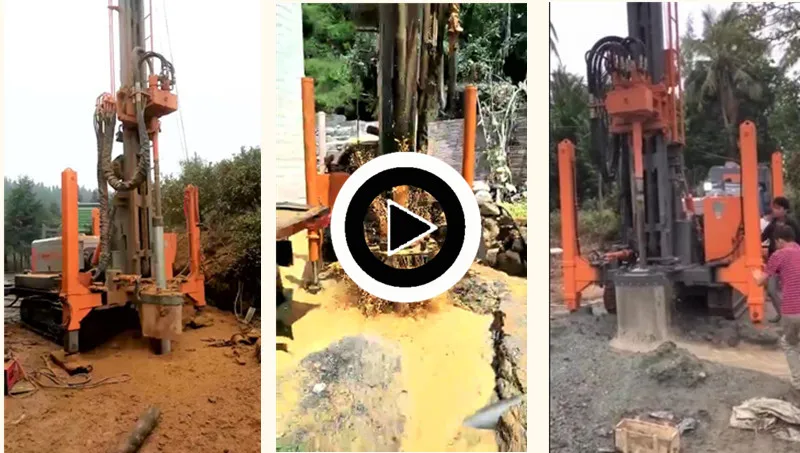

Actual working water drilling rig

Actual work of well drillers & drilled out of water
