old tyre recycling machine /tyre recycling equipment/waste tire recycling plant

Supplier: Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Region: Shandong, China
Contact: Mr daguang qiu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

model:	semi-auto xkp400 450 560, Auto LPS800,LPS1200;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Condition:	New;	condition:	new;
Power(W):	2.2kw;	Brand Name:	Guangyue;

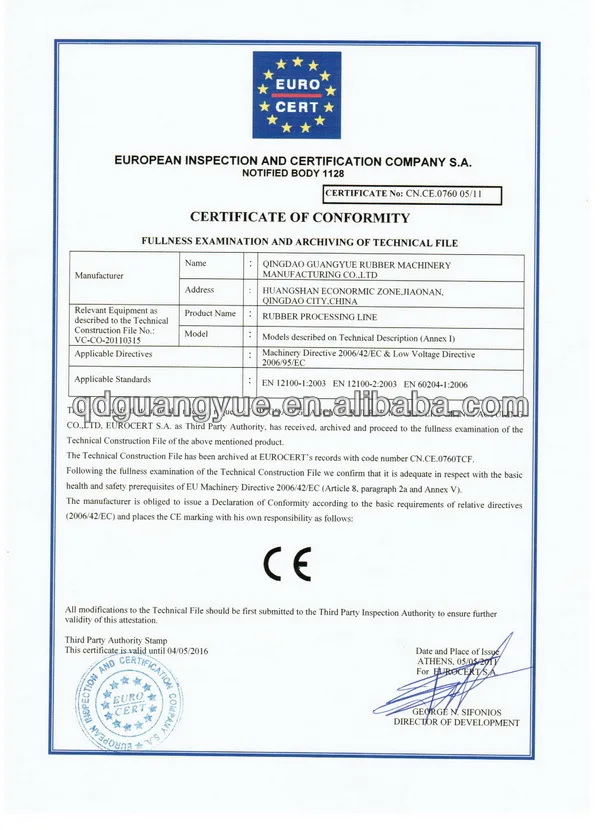

Certification:	CE/ISO/SGS;	Supply Ability:	100 Set/Sets per Month;
Place of Origin:	Shandong China;	Voltage:	380V/50HZ;
Warranty:	2 Years;	Dimension(LWH):	1880x780x1660mm;
Weight:	2500/3100kg;	Application:	Recycle waste tyre;
Certificates:	ISO CE SGS;	Type:	Vulcanizer;
After-sales Service Provided:	Engineers available to service machinery overseas;	power:	40-90kw;

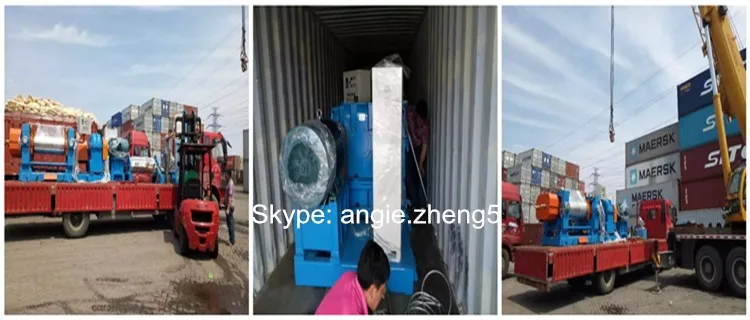

Port:	Qingdao Port;	Packaging Detail:	wooden cases or as your requirement;
delivery:	within 25-30 days;	skype:	angie.zheng5;
Warranty:	2 years;	Fuel:	Electricity Etc;
color:	as customers' demand;

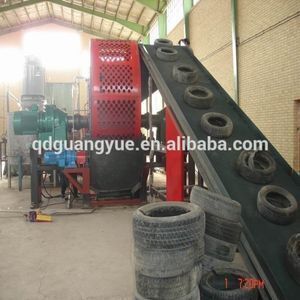

tyre recycling machine

1. General:

This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.

2.Process flow:

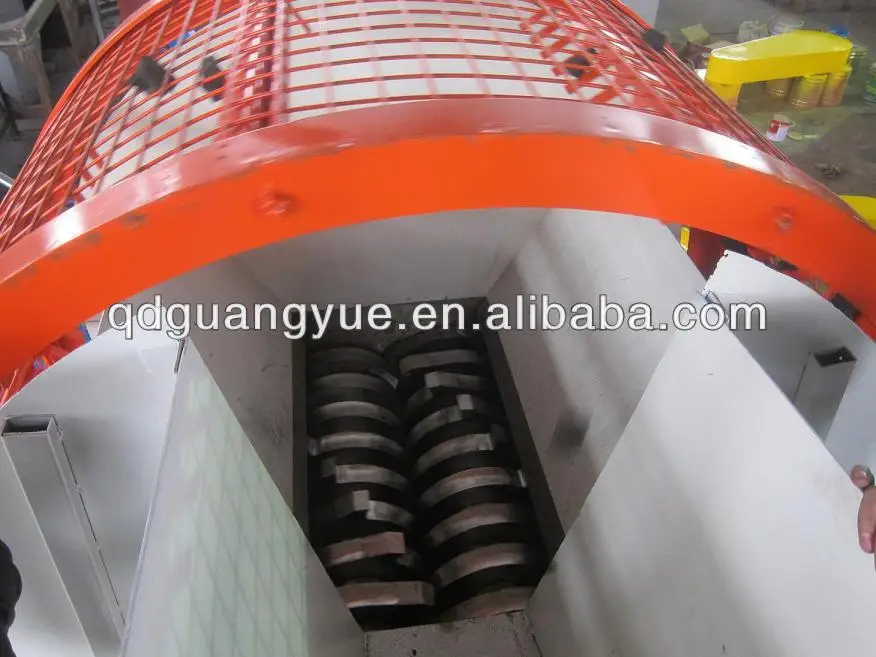

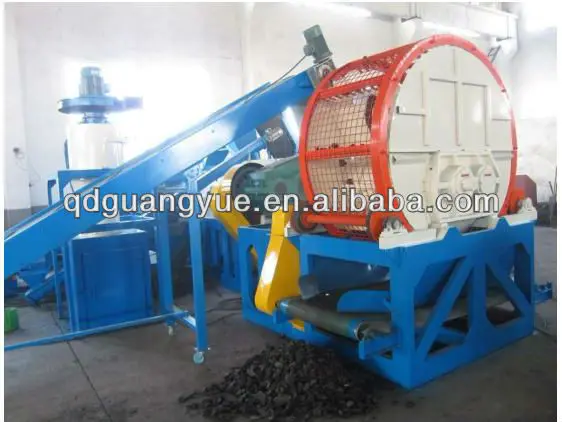

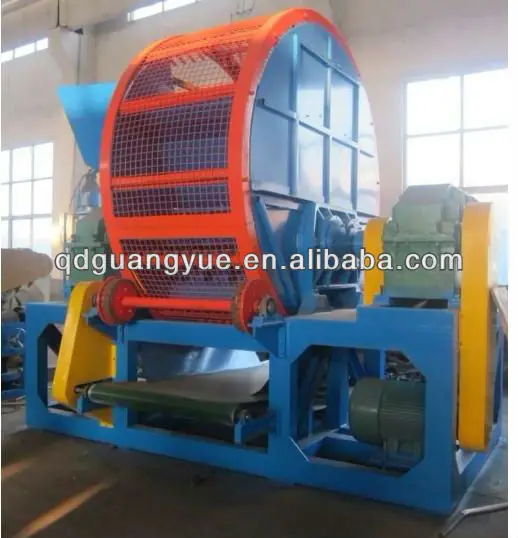

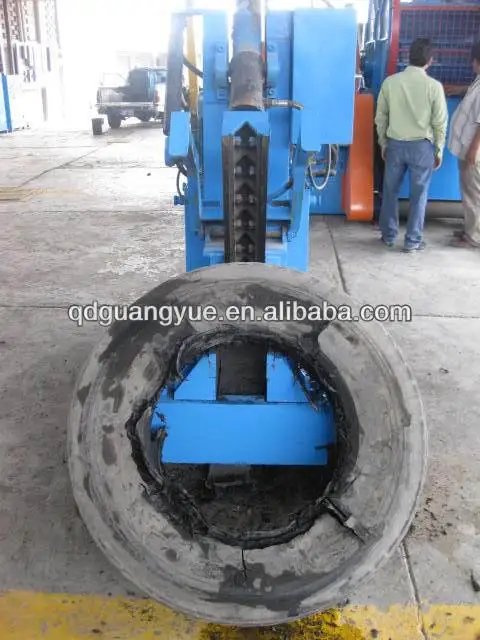

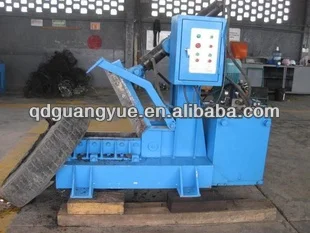

tire ring cutter → steel wire extractor→ tire shredder→ rubber coarse crusher→ magnetic separator→ vibrating screen1→ fine rubber crusher→ vibrating screen2 → cyclone classifier→ storage bin→ rubber grinder →vibrating screen3→package.

the whole line has the following features:

1), iron/steel removing ratio>99.5%, fiber removing ratio>98%

2),compact structure ensure running safety, easy maintenance;

3),low energy consumption;

4),adopt automatic control system for whole line, reduce labor cost;

5),no sewage and waste gas discharge, environment protection.

6), available capacity range of our tire recycling lines at present: 400~3000kg/h

7), available finial rubber powder size: 30~120mesh.

8), adopts SIEMENS and Chinese famous brand electrical elements.

3.Processing method:

Physic mechanical crushing method at normal temperature of waste tyre:nochemical raw material is required,no waste gas,washte water and soot are discharged, and the cooling water of the equipment is reused,no emission,equipment noise is within the range specified by the country(GB20055-2006),fineness of rubber powder produced by it is adjustable(10 meshes to 30 meshes),take waste tyre as example,the process is as follows:breaking down,crushing,filtering,magnetic separating,grin-ding,then the finished products are produced.

4.Main Parameters

Model	ZPS-900	ZPS-1200
Feeding tire size	≤ 900mm	≤ 1200mm
discharge size	*5050mm**	*5050mm**
Waste rubber processing	1-1.5T/h	2-3.8T/h
Motor power	*222 kw**	*552 kw**
