Lubrication Style: | Lubricated; | Mute: | Yes; |
Type: | SCREW; | Brand Name: | ATLAS COPCO; |
Showroom Location: | Egypt,United States,Philippines,Pakistan,Thailand,Chile,Romania,Kyrgyzstan,Malaysia; | Weight: | 1800KGS; |
Certification: | CE,ISO; | Local Service Location: | Egypt,United States,Philippines,Pakistan,Thailand,Kenya,Colombia,South Africa,Uzbekistan; |
After-sales Service Provided: | Free spare parts; | Configuration: | Portable; |
Power Source: | Diesel; | Configuration: | Portable; |
Type: | Screw; | Certification: | ISO 9001 OHSAS 18001; |
Condition: | New; | Payment Terms: | L/C,T/T; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Lubrication Style: | Lubricated; |
Weight: | 890kg; | After Warranty Service: | Video technical support,Online support,Spare parts; |
Voltage: | 24V; | Mute: | Yes; |
Place of Origin: | Shanghai China; | Supply Ability: | 100 Set/Sets per Month; |
Port: | shanghai; | Packaging Detail: | wooden pallet; |
Warranty: | One Year; | Condition: | New; |
Power Source: | Diesel; | Applicable Industries: | Hotels,Manufacturing Plant,Farms,Retail,Construction works ,Advertising Company; |
Dimension(L*W*H): | 3016x1410x1258mm; | Voltage: | 24V; |
Condition: | New; |
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations

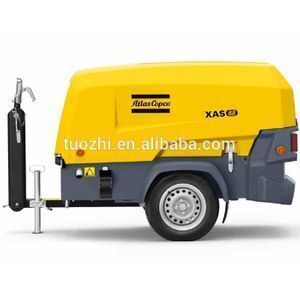

ATLAS COPCO portable air compressor technical data
Compressor Data | XAS88KD |
Free Air Delivery @ Normal Working Pressure | (5m³/min ) 178cfm |
Normal Working Pressure | 7 bar 102psi |
Minimum / Maximum Unloading Pressure | 4 / 8.5 bar |
Compression Stages | 1 |
Compressor Oil Capacity | 7.7L |
Approximate Air Outlet Temperature | 90°C (Standard) |
Typical oil content of compressed air | <5 mg/m³ |
Fuel Tank Capacity | 60L |
Outlet Valve Configuration | 3 x 3/4” G, 1 x 1.5” G |
Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
Sound Pressure Level (ISO2125) | 70dB(A) +/- 3 |
Maximum Ambient Temperature at sea level | 45 °C |
Maximum Altitude | 5000 m |
Minimum Starting Temperature | -10 °C / -20 °C (with assist) |
Diesel Engine Data | Kubota |
Horsepower Developed @ Rated Speed | 32.5kW |
Cylinders | 4 |
Cooling System | Oil |
Engine Coolant Capacity | -- |
Engine Oil Capacity | 5.5 Liter |
Unloaded Speed / Maximum Loaded Speed | 1850 / 2750RPM |
Fuel Consumption @ 0% Load / 100% Load | 3.6 / 7 kg/h |
Dimensions | Standard Towing Speed20 km/h |
Length | 2290 mm ( within towbar ) |
Width | 1350mm |
Height | 1400mm |
Weight ( filled with oil & coolant , Initial fuel ) | 750 kg |

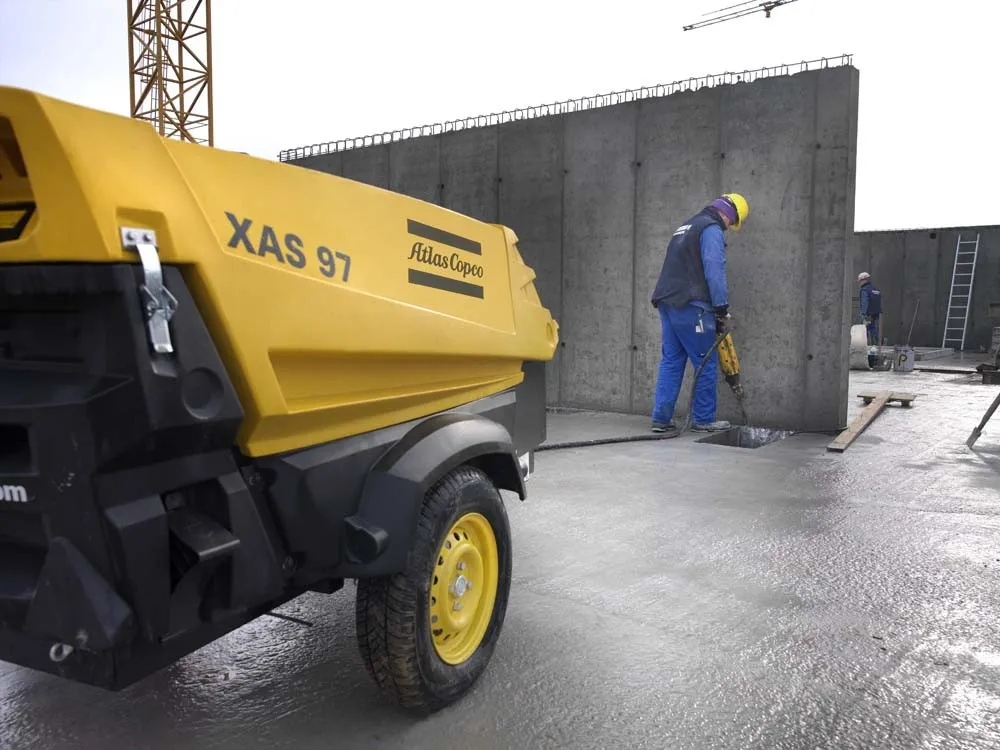

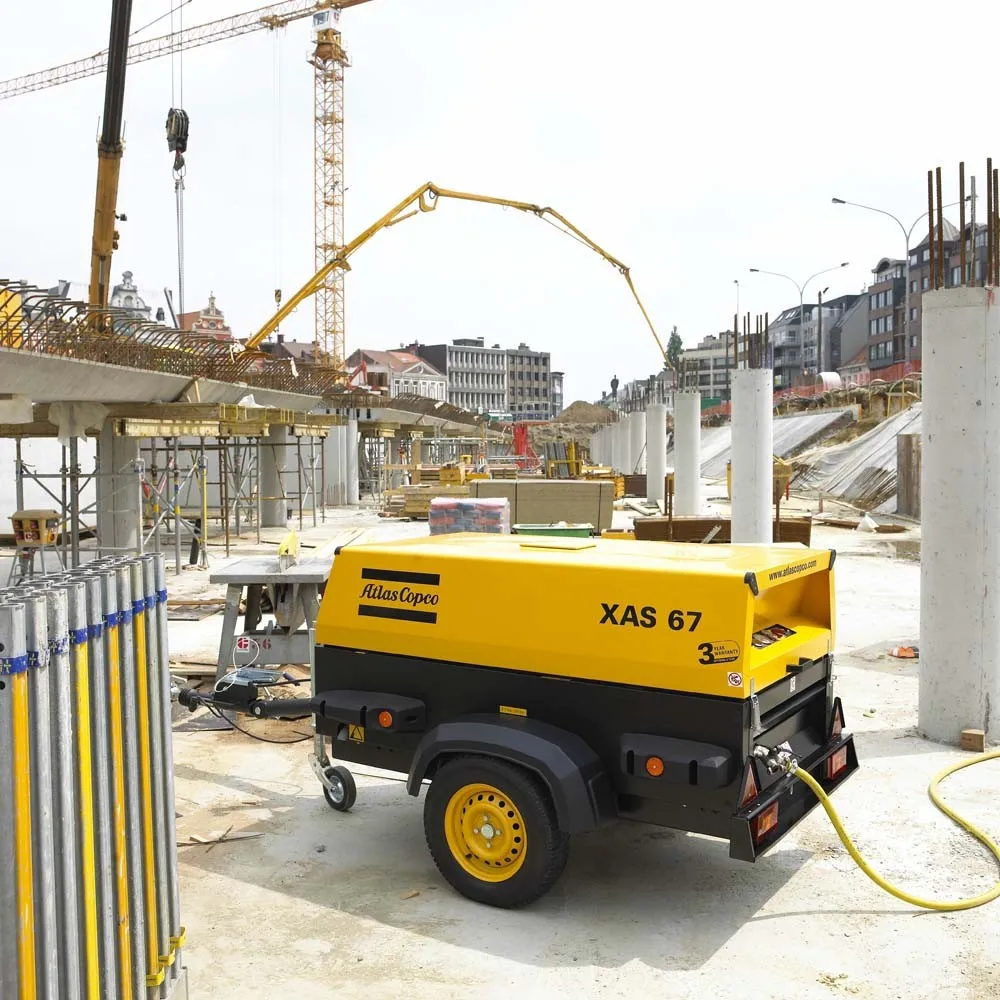

Working show:
