Tractor 300m Water Drilling Well
-
Supplier: Liuzhou Tuozhi Mine Tech Co., Ltd. -
Region: Guangxi, China -
Contact: Mr K en -
Price: $20000.00 /set -
Min. Order: 1 set
Product details
| port: | any port in China | place of origin; place of origin: | Guangxi, China |
| Video external inspection: | if | Core Components Warranty: | 1 year |
| Local service location: | Thailand | Main selling point: | high productivity |
| brand: | Tai Chi | Showroom location: | Pakistan, Thailand |
| Health status: | new | fluidity: | tractor |
| usage: | well | Core components: | Motors, Pressure Vessels, Pumps, PLCs, Others, Gears, Bearings, Engines, Gearboxes |
| strength: | diesel engine | Warranty: | 1 year |
| weight: | 11000 kg | payment terms: | letter of credit, wire transfer |
| Drilling diameter: | 450mm | Mechanical test report: | if |
| Power Type: | diesel engine | Applicable industries: | Home Use, Construction Engineering, Energy & Mining |
| Marketing Type: | New Products 2020 | Dimensions (L*W*H): | 6500x2150x2700mm |
| Voltage: | 24V | type: | Rotary drilling rig |
| Packaging Details: | According to customer requirements | Certification: | ISO,CE |
| Drilling depth: | up to 300m | Supply capacity: | 200 sets per month |
| After-sales service provided: | Engineers can repair machinery overseas, video technical support, free spare parts, online support |

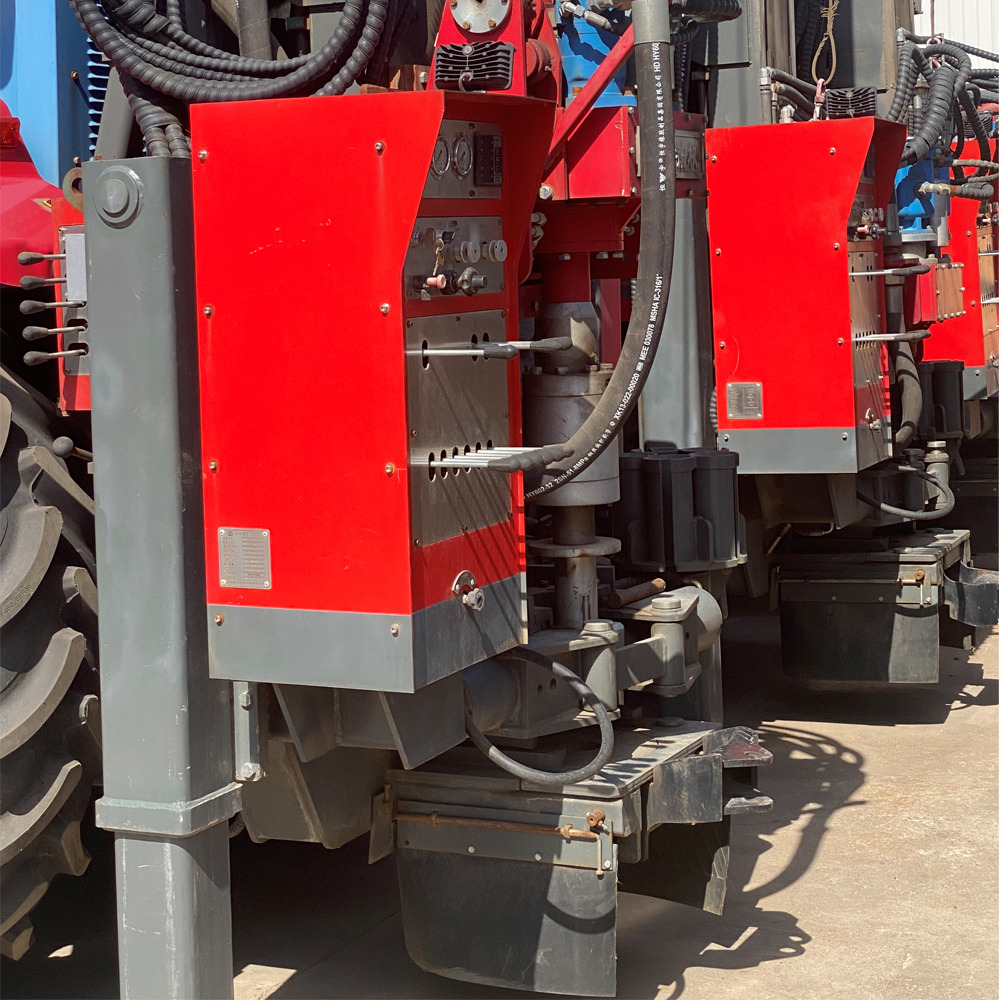

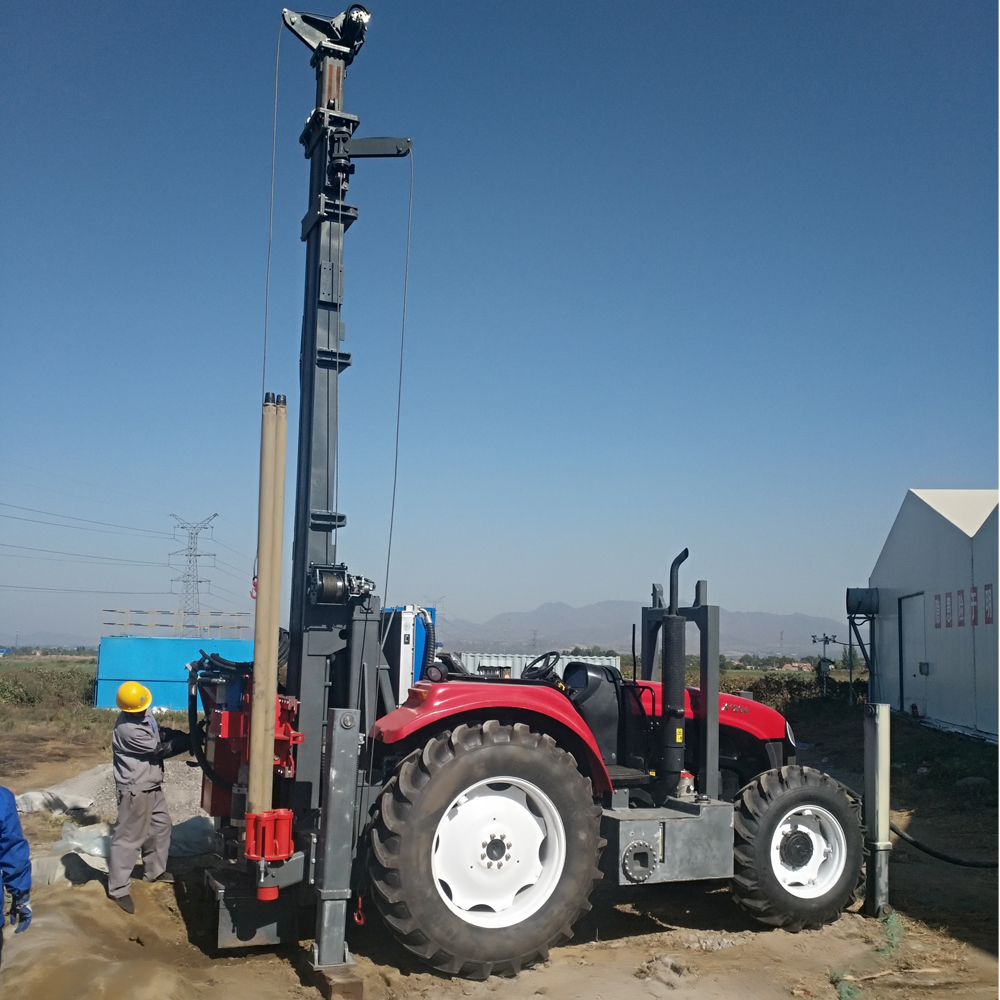

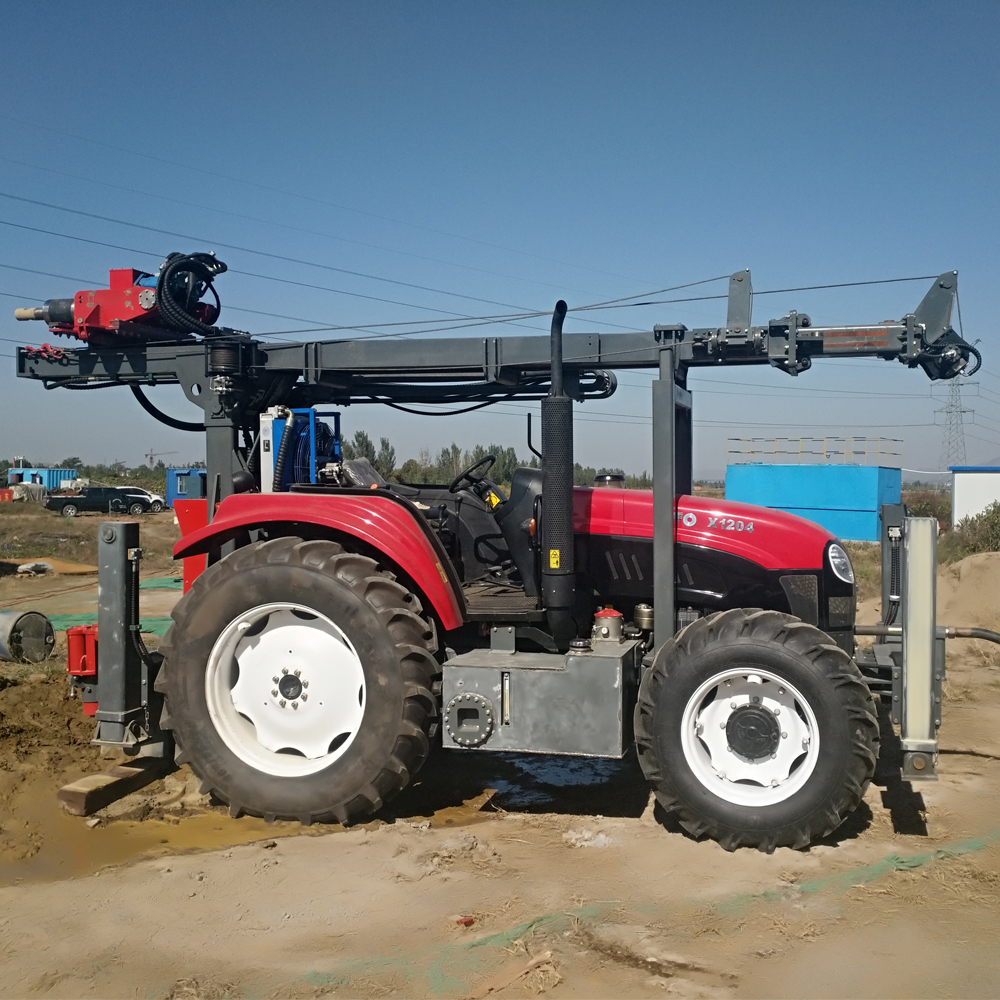

The 300 tractor series water well drilling rig adopts a full hydraulic control system. The drilling tool is driven by the power head to rotate. The design is reasonable, the structure is stable, and the maneuverability is good. It is suitable for operations under various harsh road conditions. It is widely used in drilling, geothermal energy, engineering survey, foundation treatment and other projects. It is suitable for mud drilling and air drilling, and can meet the needs of drilling in different formations. It has applied for six national patents.
| Model | TZ-300 |
| Maximum drilling depth | 350m |
| Drilling diameter | 105-350mm |
| acclimatization | F=6-20 |
| Recommended work pressure | 1.2-3.5MPa |
| Drill pipe length | 3m |
| Drill pipe diameter | 89/102mm |
| maximum lift | 16T |
| Lifting speed is fast | 30m/min |
| maximum speed | 40-400 rpm |
| maximum rotational torque | 7500-5200Nm |
| winch lifting force | 1.5T |
| Speed of work | 40 km/h |
| aspect | 6500x2150x2700mm |
| Drilling method | Air drilling or mud pump drilling |
| engine | 120HP |
| gross weight | 11T |
