40dB 100W attenuator

Product details
Port:Shanghai/Shenzhen/Ningbo;VSWR:≤1.20;
Attenuation (dB):40;Impedance:50 ohm;
Frequency Band(GHz):DC-3GHz;Temp(deg):-35~+65;
Average Power(W):100;Packaging Detail:Standard Export Cartons: 450mm*350mm*340mm;
Accuracy(dB):±2.0;Place of Origin:Anhui China (Mainland);
Weight(KG):0.8;Connector:N-Male to N-female;
Color:Black;Supply Ability:1000 Piece/Pieces per Day;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Model Number:MA-100-3G-40-NM/F;
Brand Name:Maniron;
Product Description

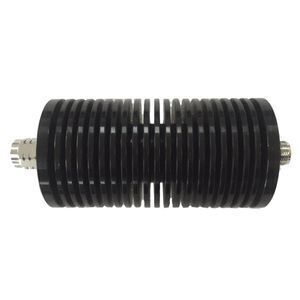

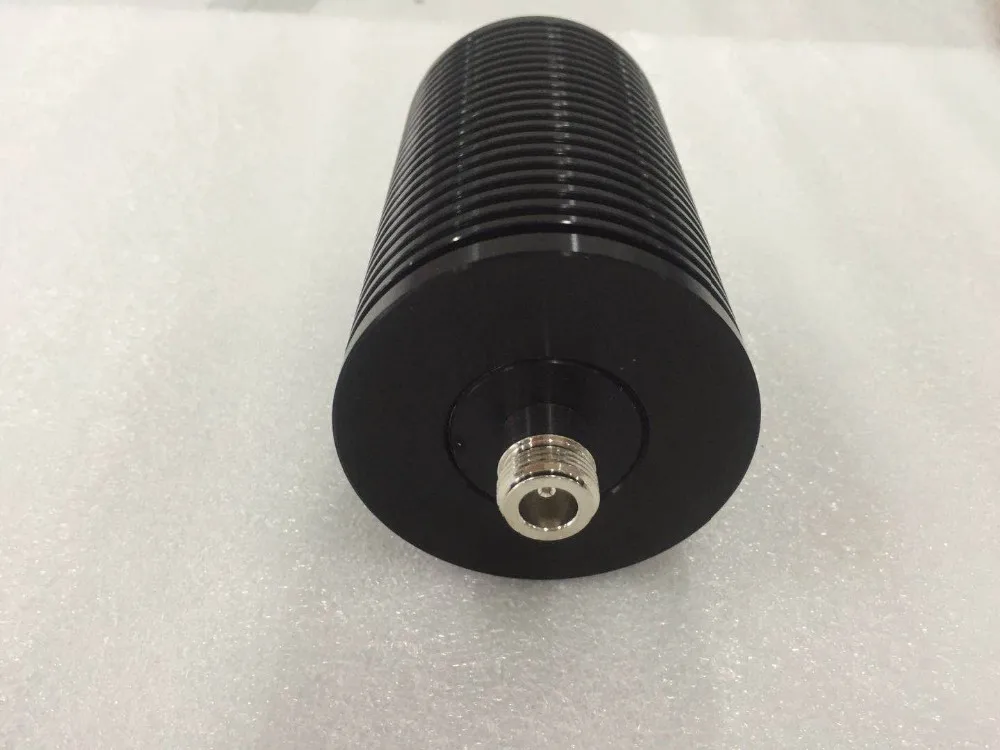

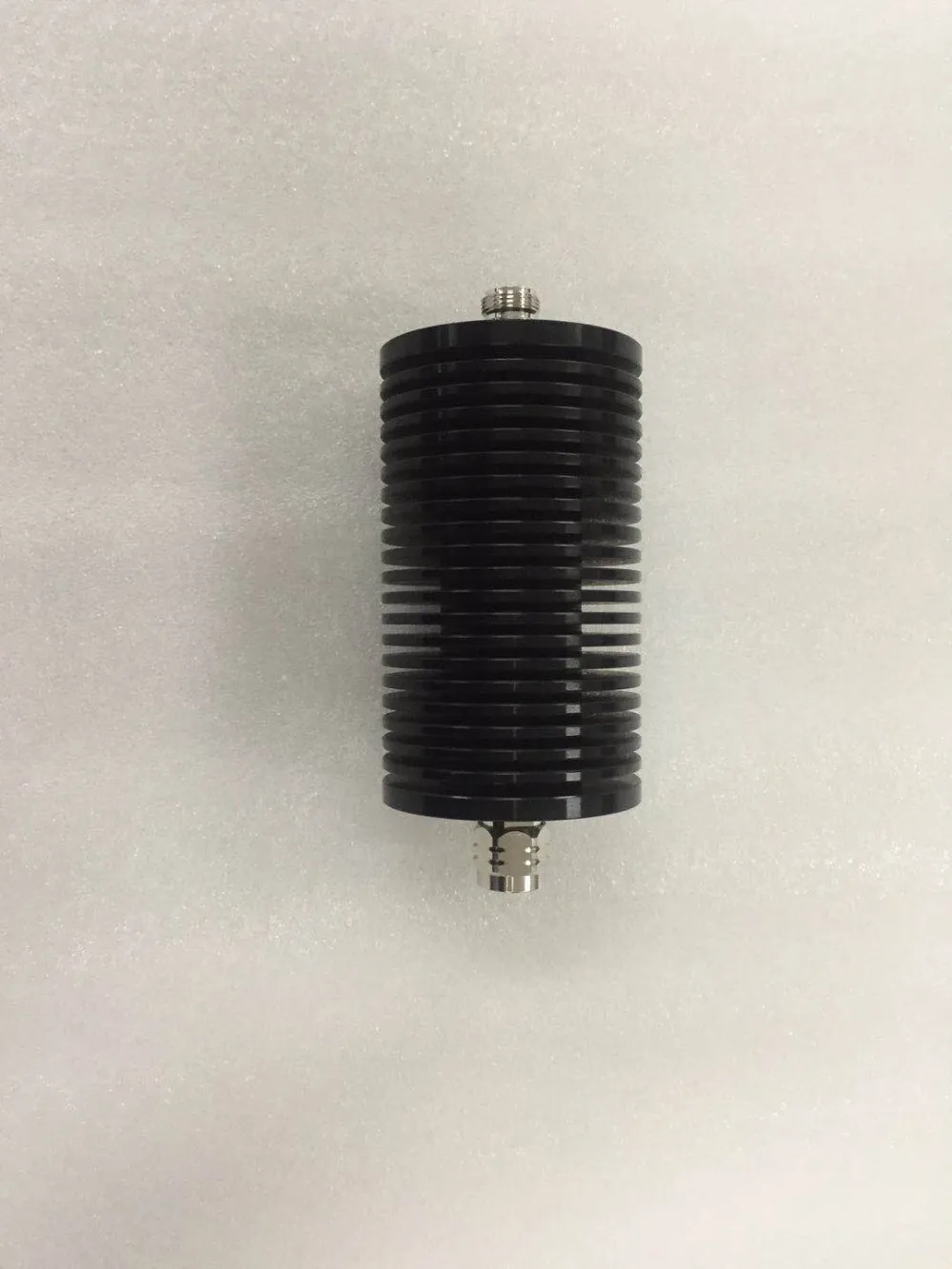

100W Attenuator (100W,DC-3GHz,N-M to N-F)


Product Features

◆ Wide Frequency Band DC-3GHz

◆ Low VSWR

◆Low Attenuation Accuracy

◆ Widely used for In-building Solutions


Specifications
Model No.
MA-100-3G-XX-NM/F(XX refers to attenuation)
Freq(GHz)
DC-3GHz
Attenuation(dB)
1/3/6/10/15/20/30/40/50/60
Accuracy(dB)
±0.5 (1/3/6); ±0.8 (10); ±1.0 (15/20/30); ±2.0 (40); ±2.5 (50); ±3.0 (60)
VSWR
≤1.20
Average Power(W)
100
Impedance
50 ohm
Connector
N-M to N-F
Color
Black
Temp(deg)
-45~+125
Dimensions(mm)
 Ø70*120 (Connectors excluded)
Net Weight(kg)
0.80

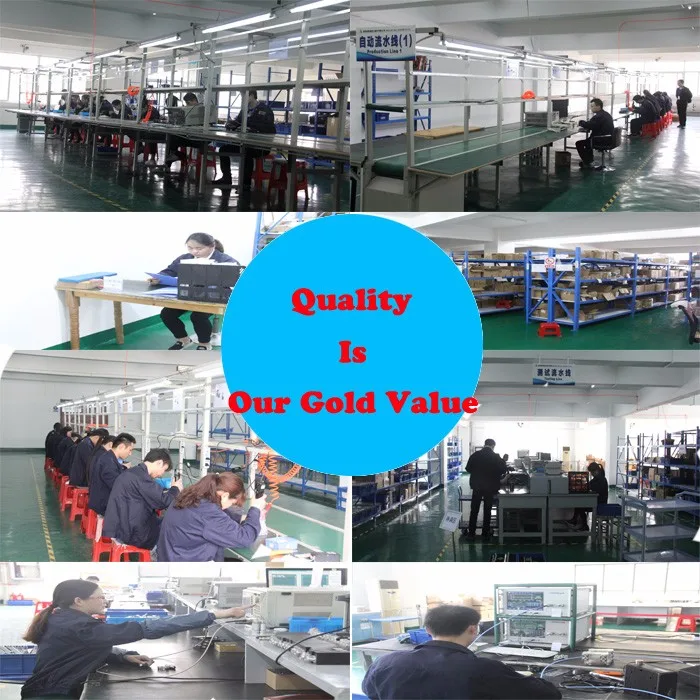

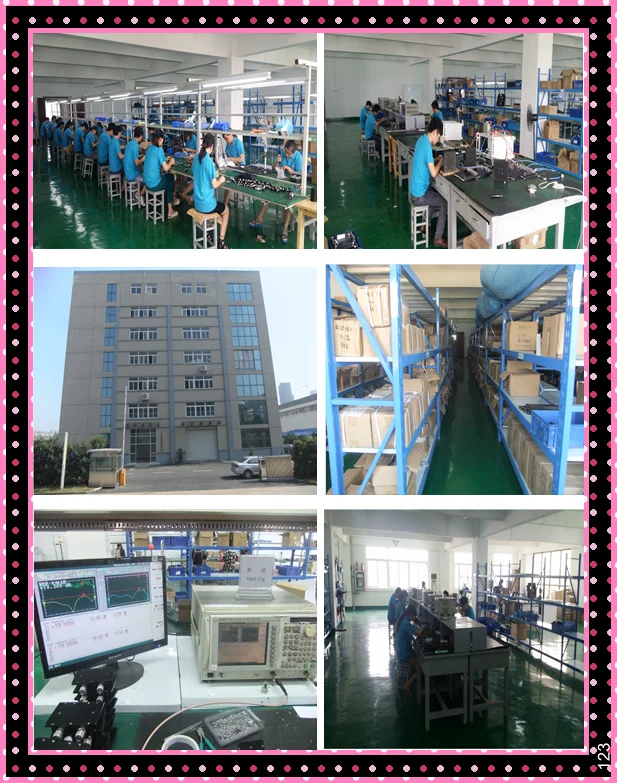

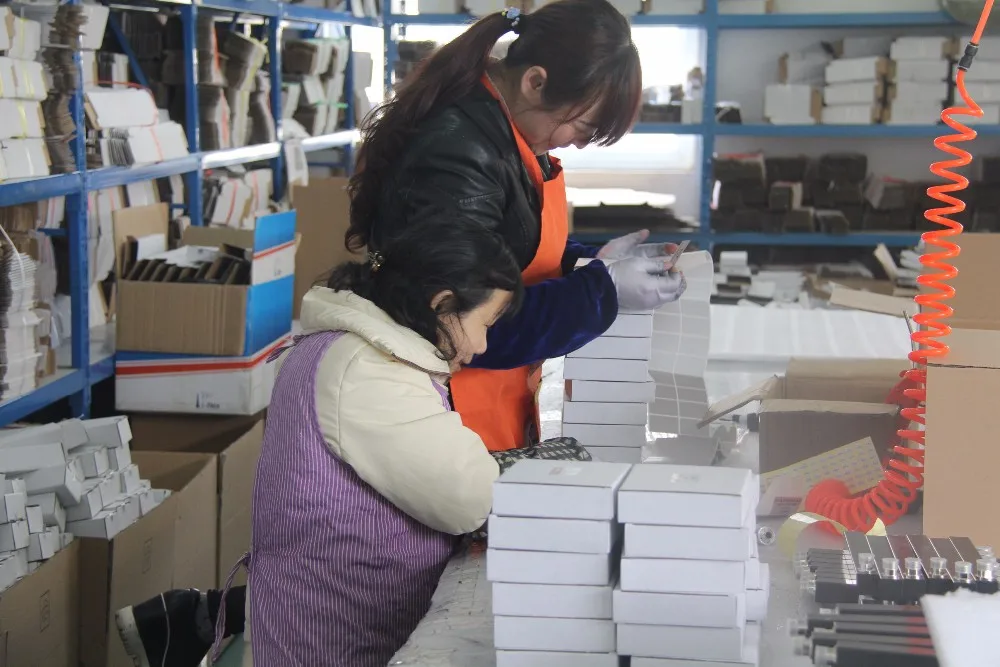

Company and Workshop

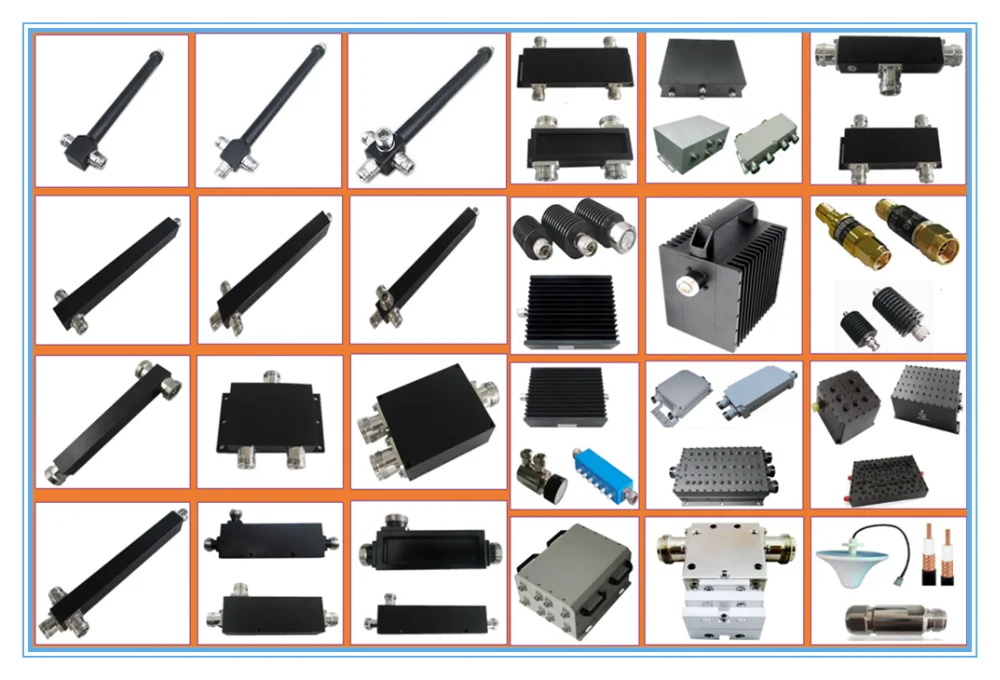

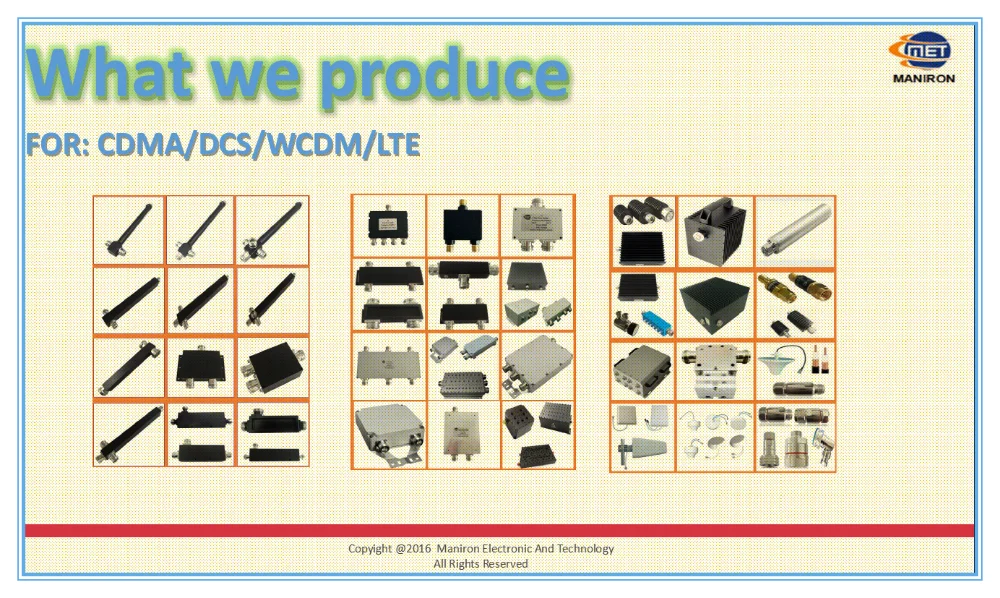

Our production
