MAS830 Digital Multimeter MAS830 DMM 3 1/2 LCD Display

Supplier: Shenzhen Yehai Technology Development Co., Ltd.
Region: Guangdong, China
Contact: Ms Lotus Wang
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Dimensions:	138 * 69 *31mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
OEM:	Available;	Place of Origin:	Guangdong China;
hFE:	1 ~ 1000;	Measuring Resistance Range:	200/2k/20k/200kΩ;
Packaging Detail:	standard normal packing;	Operating Temperature:	None;
Measuring Inductance Range:	None;	Measuring Voltage Range:	200m/2/20/200V;
Measuring Current Range:	20u/200u/2m/20m/200mA,10A;	Power:	1*9V 6F22 battery;
Measuring Capacitance Range:	Without;	Fuction:	Diode test ,Voltage ,Current,and resistance test;
Port:	shenzhen;	DC/AC Current Range:	0-24mA;
Supply Ability:	10000 Piece/Pieces per Month;	Brand Name:	HuaYi;
Delivery Detail:	Shipped in 7 days after payment;	Resistance Range:	0Ω to 4000Ω;
Model Number:	MAS830;	Safety rate:	CAT II600V digital multimeter;

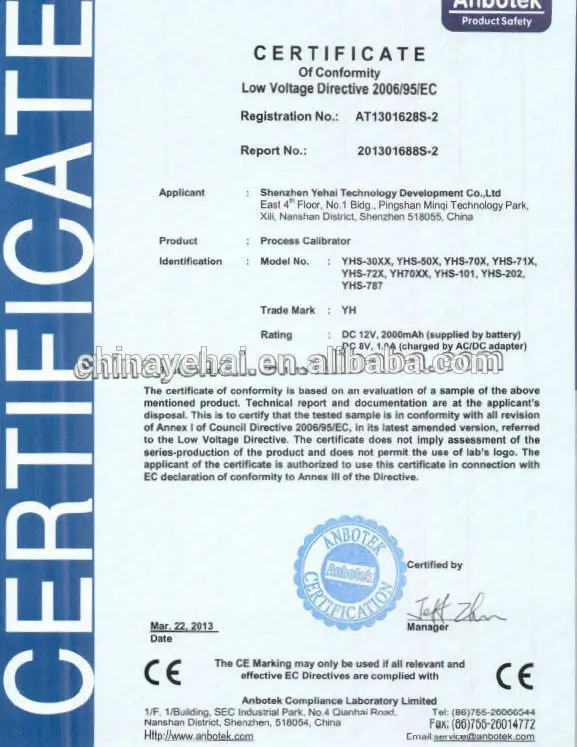

Certificate:	CE,LVD,RoHS,EMC,ETL;

Digital multimeter MAS830 mini & low price CE Certification NA IC instead

Product Description

Specifications:

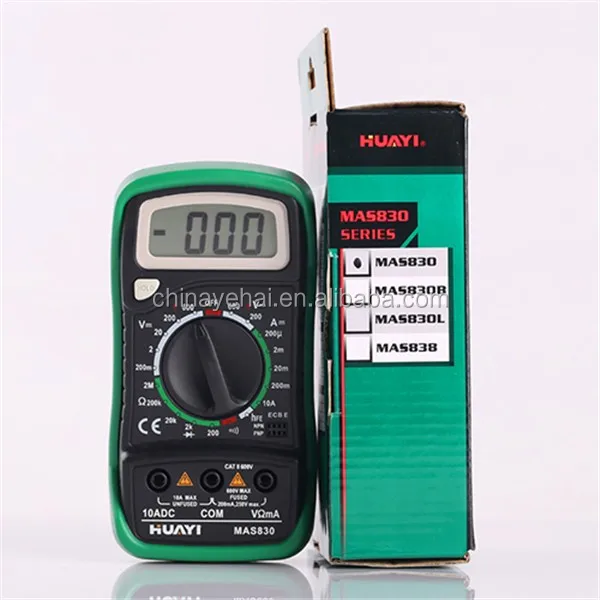

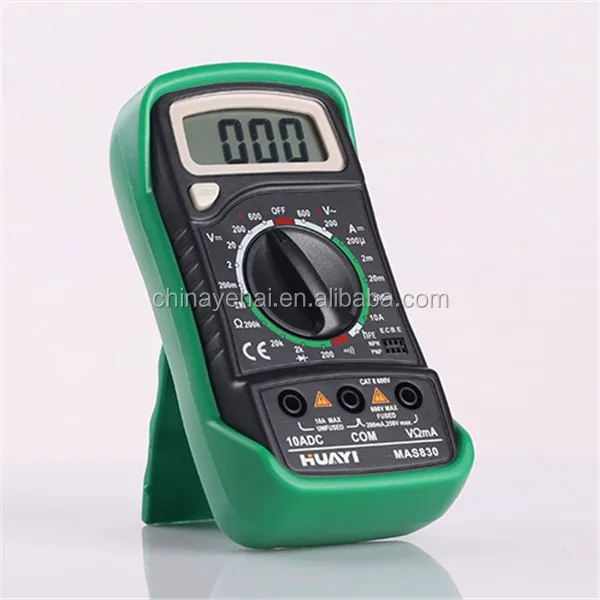

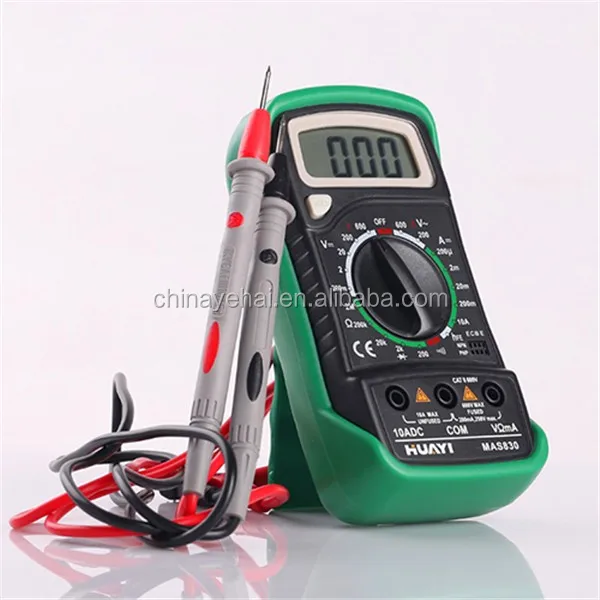

MAS830 Digital Multimeter

· Display: 1999

· Voltage DC: 200m/2V ± 0.5%,20/200/600V ±0.8%
· Voltage AC: 200/600V ± 1.5%
· Current DC: 200μ/2m/20mA ± 1.0%, 200mA± 2.0%, 10A ± 3.0%
· Resistance: 200/2K/20K/200K/2MΩ ± 1.0%
· hFE: 1 ~ 1000
· Diode test
· Data hold

· Continuity checking with Buzzer

· Power: 6F22(9V) × 1
· Dimension: 138 × 69 × 31mm
· Weight:170g (batteries included)

Feature
Display		1999 Counts
Diode test		Yes
Data hold		Yes
Continuity checking with Buzzer		Yes
Specification
Function	Range		Accuracy
Voltage DC	200mV/2V		±0.5%
	20V/200V/600V		±0.8%
Voltage AC	200/600V		±1.5%
Current DC	200μA/2mA/20mA		±1.0%
	200mA		±2.0%
	10A		±3.0%
Resistance	200/2K/20K/200K/2MΩ		±1.0%
hFE	1 ~ 1000
General specification
Power supply		6F22(9V) × 1
Dimension		138×69×31mm
Weight		170g (included battery )
