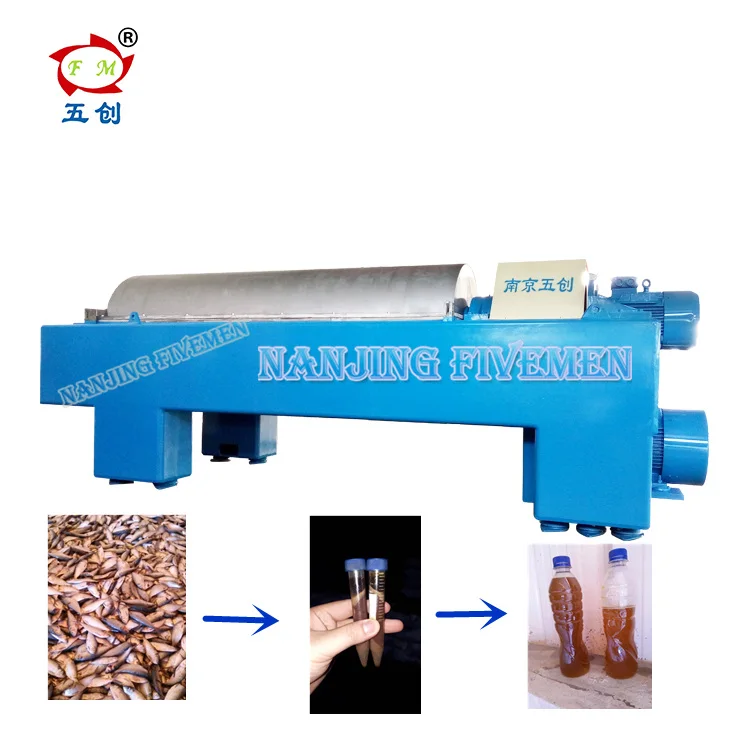

Industrial scale decanter fish oil separator centrifuge

Supplier: Nanjing FiveMen Machine Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sunny Cheng
Price: $25000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training;	Product Type:	fish oil separator;
Type:	fish oil centrifuge;	Place of Origin:	Jiangsu China;
Condition:	New;	Brand Name:	Fivemen;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,for fish centrfiuge;	Certification:	ISO9001;
Dimension(LWH):	258719002300mm;	Applicable Industries:	fish oil and fish meal;
Voltage:	220v/380v/415v;	material:	304/316L stainless steel;
Power(W):	30kw;	Supply Ability:	50 Unit/Units per Month for fish oil extraction machine;
Keywords:	fish oil separator;	Title:	fish oil centrifuge separatot machine;
Port:	Shanghai;	Model Number:	LWS420*1720;
Name:	fish oil extraction machine;	Warranty:	1 year;
Drum length:	1720mm;	Weight:	3900kg;
operation:	automatical continuous operation;	speed:	0-3300r/min(adjustable);
Capacity:	≥7.5T/h;	control type:	PLC control;

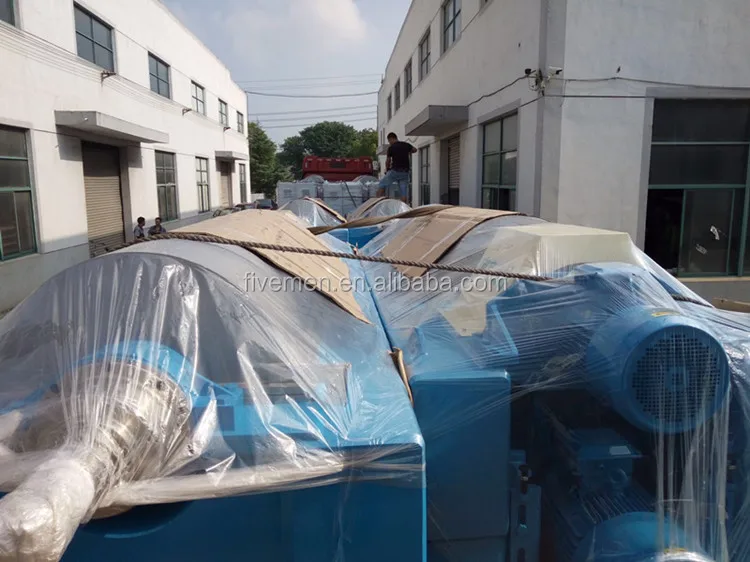

Packaging Detail:	Standard with wooden case and poly film wrapping for fish oil extraction machine;

Fivemen Three-Phase Horizontal Decanter Centrifuge for Extraction of Fish Oil in Fishmeal Industry

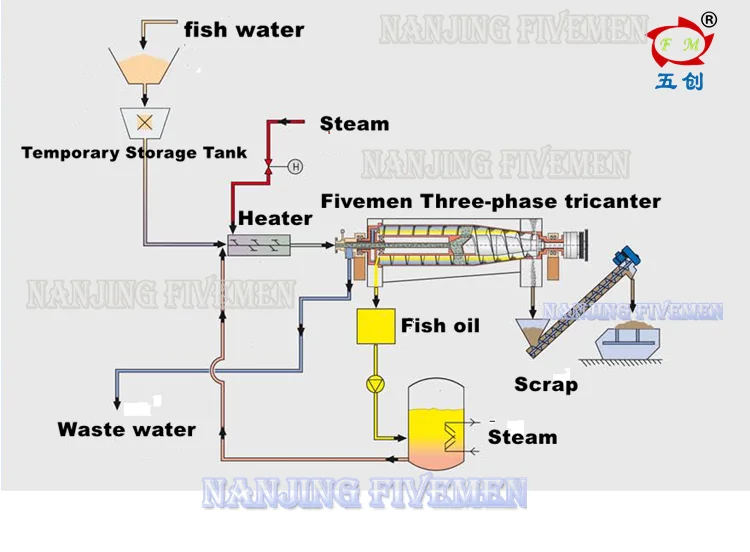

Technology of Extraction of Fish Oil in Fishmeal Industry

Fresh fish are sent by spiral conveyer into the cooking machine for stewing, and then delivered to the rolling mill after thoroughly stewed, and the fishmeal is produced after rolled fish are dried in a dryer. There are oil water and fish scraps in the fish soup, after being extracted, if the fish oil and fish scraps are sent back to the dryer, it is called through-dewatering, if they are not sent back to be evaporated, it is called half-dewatering. As normal fishmeal plants do not have sewage treatment device, considering the environmental requirement, most of them adopts the through-dewatering method. There are various technologies in extracting fish scraps and fish oil from the fish soup, among which a relatively traditional one is to extract fish oil by several settling ponds, another one is to extract fish scraps by two-phase Horizontal Decanter Centrifuge and then extract the fish oil by disc stack centrifuge, another one is to extract the fish scraps and fish oil for one time by three-phase Horizontal Decanter Centrifuge.

We have more than 30 customers in Gambia, Mauritania and Senegal for fish oil and fish meal .

Working principle

Separation takes place in a horizontal cylindrical bowl equipped with a scroll conveyor.

The processing material is fed into the bowl through a stationery inlet tube and is smoothly

accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids

on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different

speed, thus moving the solids towards the conical end of the bowl.

Product Description

Technical parameters

Type	Bowl diameter(mm)	Bowl length/ Bowl diameter	Bowl speed (r/min)	Main Power(Kw)
LWS355	355	3.3-4.5	4000	15-18.5
LWS420	420	4.1	3600	22
LWS500	500	4.2	3000	30
LWS530	500	4.2	3000	30
LWS580	580	4.1	2800	45
LWS620	620	4	2800	45
Note: In case of differences between the table and the user manual, the latter shall prevail.
