name: | Chlorella Spirulina 2 Phase Disc Stack Centrifuge; | Place of Origin: | Jiangsu China; |
Condition: | New; | Vibration speed: | ≤4.5 mm/s; |
Capacity: | 500l/h-50000L/h; | Product Type: | Disc Stack Centrifuge Algae Biomass Centrifuge; |
After-sales Service Provided: | Field installation, commissioning and training; | Type: | Centrifuge; |
keyword: | Disc Stack Centrifuge Algae Biomass Centrifuge; | Port: | shanghai port; |
Pump pressure: | ≥0.2MPa; | Supply Ability: | 30 Unit/Units per Month for Chlorella Spirulina 2 Phase Disc Stack Centrifuge; |
Applicable Industries: | Algae Biomass Centrifuge; | Power(W): | 7.5kw; |
Warranty: | 12 Months; | application: | liquid-solid clarify; |
Brand Name: | fivemen; | Voltage: | 380V/415V/220V; |
Dimension(L*W*H): | 1100*1050*1250; | Certification: | ISO9001; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,for oil separator; | drive: | gear and belt; |
Weight: | 750kg; | Packaging Detail: | Standard export wooden packaging for Chlorella Spirulina 2 Phase Disc Stack Centrifuge; |
discharge way: | automatical discharging; | Drum diameter: | 385mm; |
materials: | 304/ 316L SUS; |

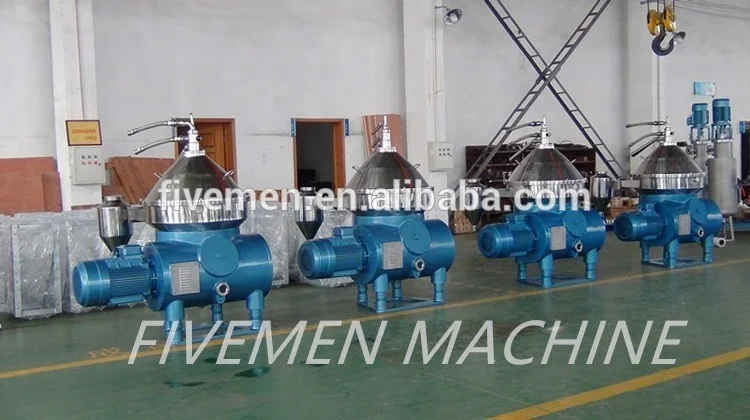

Chlorella Spirulina 2 Phase Disc Stack Centrifuge Algae Biomass Centrifuge
More than ten years of successful industry experience
The best materials and strict control system
Equipment quality gaurantee
original design for customized service
Product Description |
Introduction:
Disc separator can complete two operations: liquid-solid separation (low concentration slurry separation), said clarifying operation; liquid-liquid (or liquid-liquid-solid) separation (emulsion separation), said separating operation. Disc separator with its compact, small footprint, high production capacity and other characteristics, is widely used in chemical, pharmaceutical, light industry, food, biological engineering, and transportation.
the disc stack separator separates solids and one or two liquid phases from each other in one
single continuous process, using extremely high centrifugal forces. When the denser solids are
subjected to such forces, they are forced outwards against the rotating bowl wall, while the less
dense liquid phases form concentric inner layers. The area where these two different liquid phases
meet is called the interface position. This can be easily varied in order to ensure that the
separation takes place with maximum efficiency. Inserting special plates (the "disc stack")
provides additional surface settling area, which contributes to speeding up the separation process
dramatically. It is the particular configuration, shape and design of these plates that make it
possible for a disc stack centrifuge to undertake the continuous separation of a wide range of
different solids from either one or two liquids. The concentrated solids phase formed by the
particles can be removed continuously, intermittently or manually, depending on centrifuge type
and the amount of solids involved in the specific application.
Moled and Parameters:
No. | Model | Capacity (L/h) | Drum diameter (mm) | Drum speed (r/min) | Separation factor | Power (KW) | Slag discharge way | Weight (kg) | Dimension (mm X mm X mm) |
1 | HGDR230 | 1500 | 230 | 6930 | 6170 | 2.2 | manual | 240 | 850X625X985 |
2 | GDDB270 | 2000 | 270 | 7200 | 6950 | 4 | automatic | 550 | 865X645X1100 |
3 | GDDB 315 | 3000 | 315 | 6500 | 7000 | 5.5 | automatic | 650 | 900X600X1150 |
4 | GDDB 385 | 4000 | 385 | 6500 | 7500 | 7.5 | automatic | 750 | 1100X1050X1250 |
5 | GDDB 430 | 5000 | 430 | 6000 | 8050 | 11 | automatic | 900 | 1200X950X1400 |
6 | GDDB 470 | 8000 | 470 | 5800 | 8500 | 18.5 | automatic | 1200 | 1250X1000X1550 |

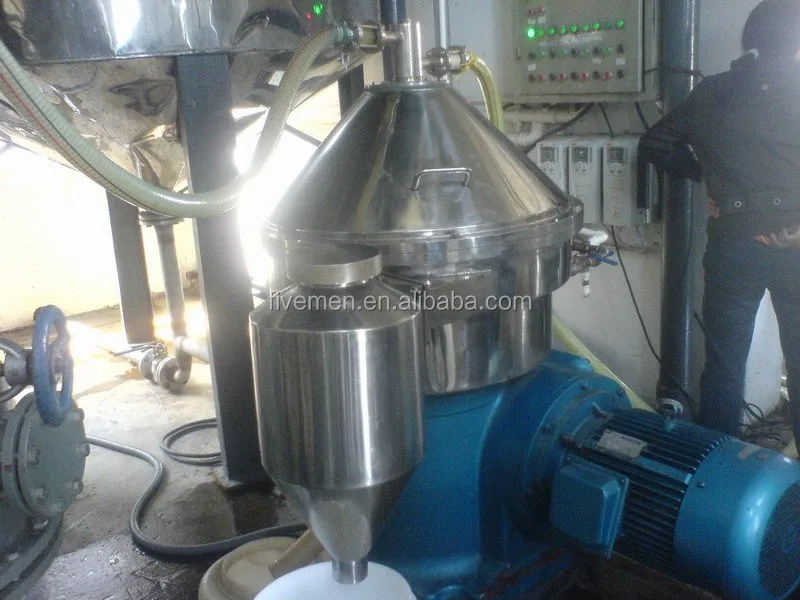

Application site
Packing & Shipping |
The parts are bolted to the wooden cases. with layers of plastic and standard wooden cases
for packaging, it provide safe and convenient shippings.

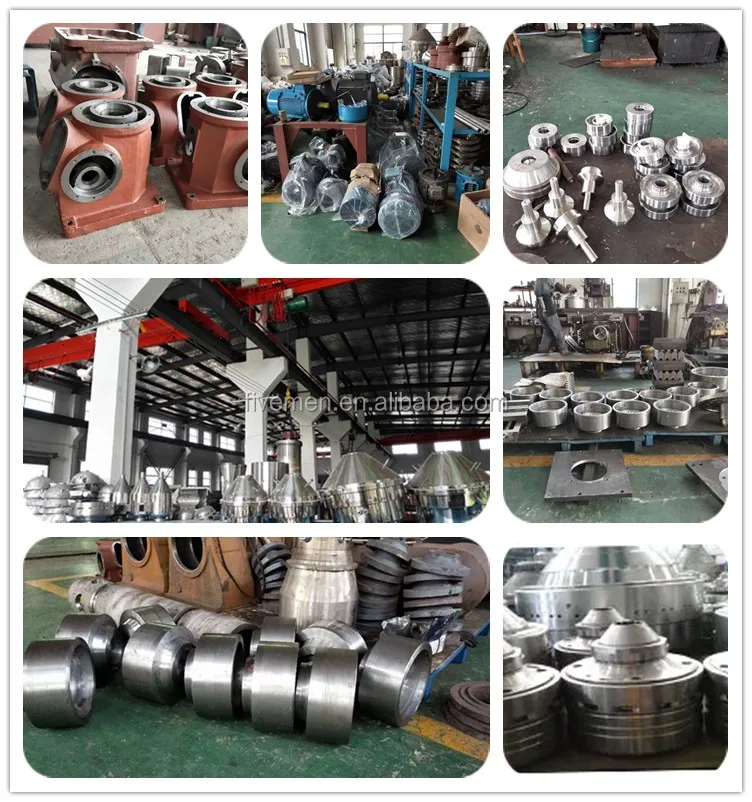

Company Information |
Over the years, our products have been successfully applied in liquid-solid or liquid-liquid-solid separation of biomedicine, traditional Chinese medicine, phytoextraction , health foods, beverages, dairy products, lanolin, animal and plant oil, mineral oil, petroleum, chemical industry, environmental protection and other industries. For some materials with small difference in specific gravity of liquid and solid phase ,small solid particle size and low content by use of centrifuge extraction, concentration and clarification , our company can provide you with ideal separation equipment.
We have passed ISO9000 quality system certification awarded by China Classification Society; our mineral oil separators used in inland rivers, offshore and ocean shipping have achieved CCS approval certificate, and the products used in fishing boats also passed the fishery inspection.
