air feeder pneumatic feeder
-
Supplier: Shenzhen Hosun Precision Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Candy F -
Price: $200.00 /set -
Min. Order: 1 set
| Place of Origin: | Guangdong China (Mainland); | Use: | Sheet; |
| Supply Ability: | 10000 Set/Sets per Day; | Payment Terms: | T/T,Western Union,Paypal; |
| Power(W): | Air; | Product name: | Air feeder; |
| Voltage: | Air; | Condition: | New; |
| Brand Name: | HY; | Packaging Detail: | AF-1C to AF-7C carton package Above AF-8C use wooden frame to package; |
| Application: | Metal Process; | Function: | Feeding Metal Coil Strip; |
| After-sales Service Provided: | Video technical support,Online support; | Port: | shenzhen; |
| Pneumatic pression: | 4.5kg/ cm2; | Max feed width: | from 50 to 600mm; |
| Warranty: | 1 Year; | Weight: | 11 to 285 KG; |
| Certification: | ISO9001-2008; | Type: | Feeder Machine; |
| Dimension(L*W*H): | 524x157x46mm; | Max feed length: | 50 to 600mm; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Applicable Industries: | punch; |
| Max feed thickness: | 0.5 to 3.5mm; |
Product Description :

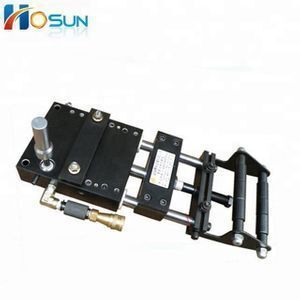

Pneumatic feeder ( also called Air feeder )
It mainly used to feed coil sheet material for press machine , so that achieve automatic feeding , Safety, convenient and accurate
Feature :
1. Easily to operation
2. High precision and accurate feeding
3. The machine uses the new pneumatic slow scales, in order to eliminate vibration of rapid feeding
Type :
There are five types : standard type , E type , R type , R+E type and new types , each type has 14 kinds size
every size suitable the different material size ( feed width , thickness and length )
So if you want to know more , pls contact me freely , so that I can advise the suitable type for you
About the type pictures , pls see belows :
Product Images :
Air feeder size :
| Type | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C | AF-8C |
| A | 300 | 345 | 380 | 490 | 600 | 710 | 840 | 940 |
| B | 38 | 38 | 46 | 46 | 60 | 60 | 70 | 70 |
| C | 90 | 110 | 130 | 158 | 220 | 270 | 330 | 380 |
| D | 76 | 90 | 100 | 134 | 190 | 240 | 280 | 330 |
| E | 34 | 38 | 40 | 50 | 60 | 70 | 80 | 85 |
| F | 31 | 40 | 48 | 59 | 85 | 110 | 135 | 160 |
| G | 56 | 74 | 74 | 74 | 90 | 90 | 90 | 90 |
| H | 13 | 13 | 13 | 13 | 15 | 15 | 17 | 17 |
| I | ∅8.5 | ∅8.5 | ∅10 | ∅13 | ∅13 | ∅13 | ∅13 | ∅13 |
| J | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| K | ∅21 | ∅23 | ∅23 | ∅23 | ∅27 | ∅27 | ∅27 | ∅27 |
Feed material size :
| Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C | AF-8C | AF-10C | AF-12C | AF-14C |
| Max feed width(mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Max feed lenght(mm) | 50 | 80 | 80 | 130 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Max feed thickness (mm) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 |
| Pneumatic pressure (kg/cm²) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Max.feeding S.P.M. (MC/min) | 200 | 160 | 150 | 93 | 80 | 60 | 48 | 40 | 30 | 23 | 20 |
| Fixed clamp friction (kg) | 10 | 27 | 40 | 55 | 78 | 78 | 90 | 100 | 119 | 119 | 119 |
| Moving clamp friction (kg) | 30 | 49 | 65.5 | 72.5 | 144.5 | 169 | 200 | 217 | 245 | 245 | 255 |
| Tension force (kg) | 14 | 16.5 | 19.5 | 25.5 | 41 | 41 | 67 | 74 | 85 | 85 | 96 |
| Air consumption (L/mm) | 26.5 | 38.5 | 47 | 58.6 | 100.5 | 108.5 | 152 | 162.5 | 182.5 | 190.5 | 210 |
| weight (kg) | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 | 156 | 178 | 215 | 245 |
Types describe :
