High-precision ST thread plug gauge with test results table

Product details
payment terms:T/T, Western Union, credit card, paypal, Visausage:For thread insertion inspection
brand:HYtype:Manual measuring tools
Packaging details:Plastic boxes and cartonsPlace of origin:Other countries
Measuring range:M1.6 to M39Supply capacity:1000 pieces per week
product name:ST thread plug gaugemodel:Various
application:working pressure gaugeport:Shenzhen
Product Description

Spiral Coil Thread Plug Gauge (STI)

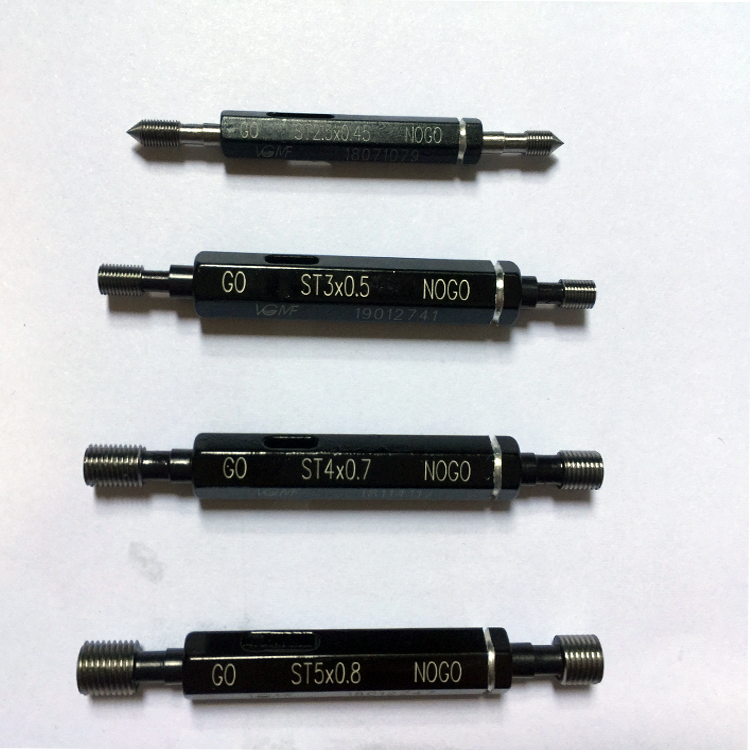

STI thread plug gauges are used to measure threaded holes before inserting threaded inserts and are widely used in the automotive industry


Standard pitch diameter: metric M1.6*0.35 to M39*2

Tolerance: Class X, Class 2B or Class 3B

feature:
SKD11 material, excellent precision, best finish and maximum wear resistance

quality assurance:

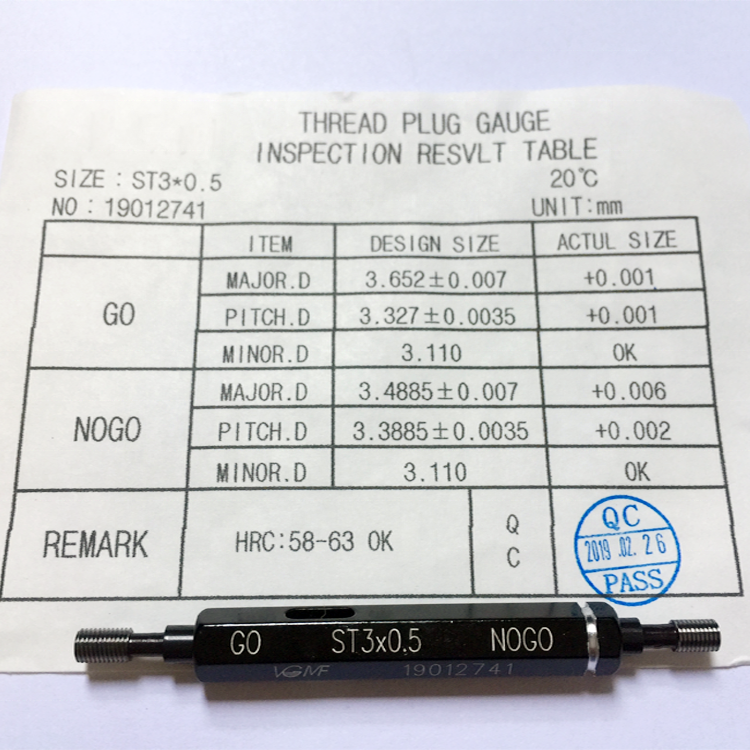

Each plug gauge has been rigorously tested before leaving the factory to ensure that the dimensional data is qualified. Each STI plug gauge has its own independent number and inspection results table (equivalent to a calibration certificate)

What thread plugs to check:
"GO" members check basic pitch circle diameter, minimum major diameter and lead
"NOGO" member checks maximum pitch circle diameter

we can supply



1. Metric thread plug gauges and ring gauges from M1 to M100, accuracy 6H, 5H, 6G; 6 grams, 6 hours, etc.

2. American thread plug gauges and ring gauges (applicable to American standards) No.0 – 80UNF, accuracy 2B, 3B, 2A, 3A (UNC, UNF, UNE, UN, UNS, etc.) and tapered pipe thread series NPT, NPTF, NPSM, ACME, STUB ACME, BUTT, etc.

3. British thread plug gauges and ring gauges (applicable to European national standards) sizes 1/8 – 40 BSW, BSF and tapered pipe thread series G, RC/R, PT, BA, etc.

4. Used for thread insertion hole inspection, ST thread plug gauge and TS ZS thread ring gauge

5. Thread positioning gauge (thread vertical gauge, thread gauge) used for locating threaded holes and measuring the center distance of threaded holes

6. Oil pipe series pressure gauge API series

7. Other series of thread gauges: Pg, V1, V2, SM
