LDM-100 Laser Diameter/Laser Diameter

Supplier: Zhengzhou Mercury-Tech Co., Ltd.
Region: Henan, China
Contact: Mr Winston Lan
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

application:	Laser Caliper	Package preview:
Warranty:	1 year	Operating Voltage:	220V±10%
model:	LDM-80	brand:	Mercury Technology
Packaging Details:	carton or wooden box	payment terms:	wire transfer
accuracy:	0.001	Laser type:	semiconductor
Origin:	Henan, China	Customization support:	OEM、ODM
Supply capacity:	1000 pieces per quarter

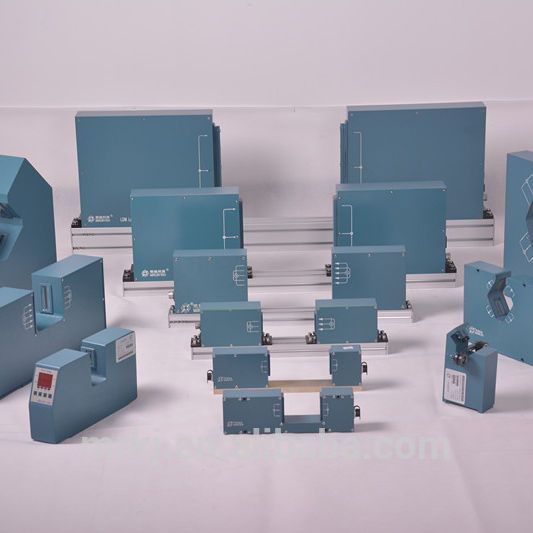

Laser CaliperIt is a high-precision measuring device that uses laser scanning to perform contact on-line measurement. It is mainly used in various wire, cable and pipe production lines to measure the outer diameter and adjust the screw speed or traction speed of the extruder to achieve the purpose of controlling the outer diameter. It can be applied to the outer diameter and size measurement of workpieces.

Model	LDM-25		LDM-50		LDM-100B	LDM-150
Measuring range	0.2-20mm		0.2-45mm		0.2-95mm	0.2-145mm
smallest size	0.2 mm		0.2 mm		0.2 mm	0.2 mm
biggest size	20 mm		45 mm		95mm	145mm
accuracy*	±0.001		±0.002		±0.002	±0.01
Repeatability**	0.5μm		0.5μm		0.5μm	1μm
solve	0.001mm		0.001mm		0.001mm	0.001mm
aspect	48.5x20x8.5 cm		48.5x20x8.5 cm		62x25x6 cm	92x29x9.5 cm
Units of measurement	mm		mm		mm	mm
strength	~220V±15%, 50-60HZ
temperature	-10~40℃
humidity	<85% relative humidity
Probe serial input/output	Standard: RS485 Option: RS232 / USB
Protocol	Modbus/Fieldbus
preset	Diameter, +Tol, -Tol, alarm settings
transparent measurement	options	options		options		options
control output
serial input/output	RS485
Analog output	16-bit ±10V DC output
Relay output	2 V Free (Status, Tolerance High, Tolerance Low)

Measurement method: laser scanning method

Laser unit: red visible semiconductor laser

Laser work function: <2mW

Working voltage: 220V±10%

Working temperature: -10~40℃

Environment: <95%RH

Working method: continuous

Power consumption: <30W

External dimensions:

LDM-80/LDM-150 measuring head: 910mm×80mm×292mm

The device has the following characteristics

1. It can be connected with PLC and industrial computer.

2. RROFIBUS-DP can be equipped with MODBUS converter to connect with PLC and IPC.

3. It can be equipped with remote control DDC-3 and DDC-5, which can automatically feedback control the extruder to control tolerance, improve product quality and reduce consumption.
