Single Cage and Double Cage Construction Hoist

Product details
Working environment:-20 ~+40 degree;Certification:ISO9001-2008;
Local Service Location:None;Place of Origin:Henan China;
Packaging Detail:In container;Supply Ability:260 Set/Sets per Month;
After-sales Service Provided:Engineers available to service machinery overseas;Warranty:1 year;
Warranty:1 Year;Cage:Double;
Rated Loading Capacity(kg):2*2000kg;Motor Power:2*3*11kw;
Payment Terms:L/C,D/P,T/T,Western Union;Showroom Location:None;
Max Lifting Height:150m;UNIQUE SELLING POINT:High operating efficiency;
After-sales Service Provided:Online support;Quoted Height:50 m;
Loder Weight:2000*2kg;Type:SC200/200 Construction Building Lifting Equipment;
Dimension(L*W*H):3.0m*1.5m*2.2m;After Warranty Service:Online support;
Hoisting Speed:33m/min;Condition:New;
Usage:Construction Elevating Equipment;Working duty:A6;
Port:Qingdao , Tianjin , Shanghai;Brand Name:LAOHUANGNIU;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Product Description

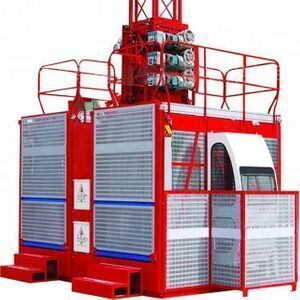

Single Cage and Double Cage Construction Hoist

SC200/200 Construction Lifter ( Double Cage )

***. Direct start-up and stop
***. Simplicity and cost saving
***. Cage size due to customization
***. High quality
***. No counterweight
***. Low wear-out.

***. The main electric elements adopt Schneider Brand .

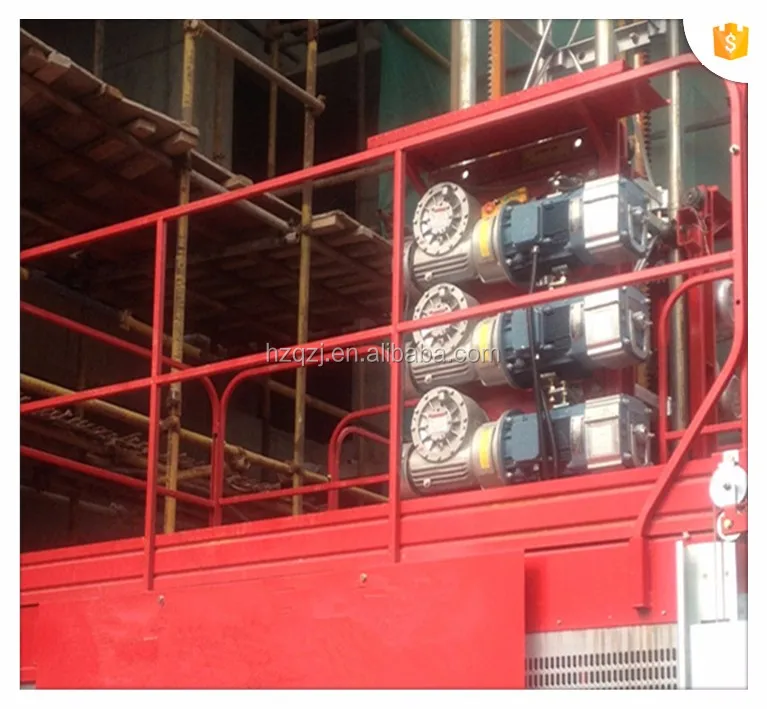

SC200/200, Double cage, Fixed-Frequency Drive, and the motor on the top of cage, load capacity of one cage 2000KG.

SC200/200,the motor on the top of cage, load capacity of one cage 2000KG .

New type more convenient SC series construction hoist with rack and mast section for building/tower/bridge/chimney is rack and pinion EL.Lift, used on construction site for transportation of personnel and materials, hoist function degree is A8.
It is installed and dismounted conveniently and can grow as high as the buildings grow in height.
SC hoist has reliable electrical and mechanical safety device. It is efficient and safety vertical transporting equipment.

Building material elevator is a chief facility for vertical transportation in the course of construction.

Parameters
SC200/200
Quoted Height (m)
50
Max.Installation Height (m)
150
Rated Loading Capacity (kg)
2*2000
Rated Lifting Speed (m/min)
33
Motor Power (kw)
2*3*11
Voltage (V)
380V+-5%
Cage Inner Dimension (m)
3.0*1.5*2.2
Cage Weight ( Include transimission gear ) (kg)
2080
Mast Section Dimension (mm)
650*650*1508
Resei Model
SAJ40-1.2
Working Duty
A6
Passenger Number
2*16
Certifications
Our Company

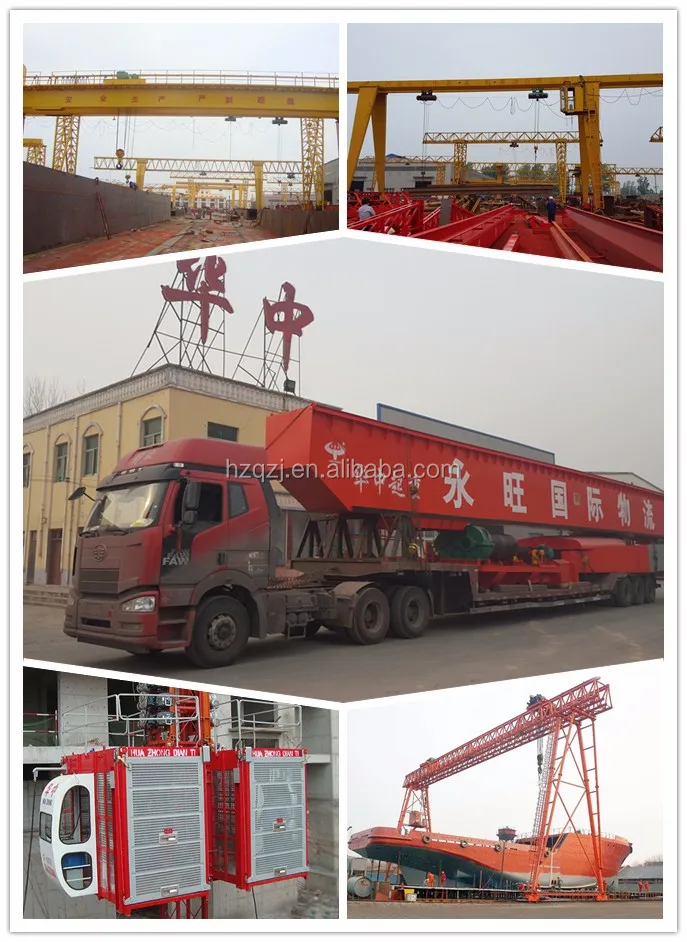

Henan Huazhong Crane Group Co.,Ltd established in 1992 , is China heavy machinery industry association member units .
