Brand Name: | YS; | Lubrication: | PTFE; |
Selling Units: | Single item; | Single package size: | 15X10X15 cm; |
Precision Rating: | High precision; | Applicable Industries: | Machinery Repair Shops; |

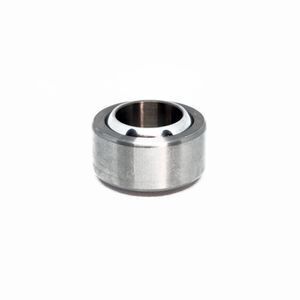

Place of Origin: | Shanghai China; | Type: | Spherical plain bearing; |
Single gross weight: | 0.204 KG; | Package Type: | 3-10 in a row, packed into boxes.; |
Material: | Chrome Steel GCR15; | Package Preview: | https://sc01.alicdn.com/kf/UTB8B0tlNyaMiuJk43PTq6ySmXXaS.jpg_640x640.jpg,https://sc02.alicdn.com/kf/UTB8UBFIu22JXKJkSanrq6y3lVXas.jpg_640x640.jpg; |
Seals Type: | Oil coated; | Model Number: | COM12T; |
| MATERIALS | |||||||||
52100 STEEL | 52100 STEEL | |||||||||
HEAT TREATED | ||||||||||
HARD CHROME PLATED | OIL COATED | |||||||||
BEARING PART NO. | B DIA. | D DIA. | W WIDTH | T WIDTH | O DIA | BALL DIA. | F CHAMFER | a° MIS ANG | ULT. STATIC RADIAL LOAD (lbs.) | APPROX. WEIGHT (lbs.) |
| +.0015 -.0005 | +.0000 -.0007 | +.005 -.005 | +.005 -.005 | REF. | REF. | REF. | REF. | ||
COM4T | .2500 | .6562 | .343 | .250 | .364 | .500 | .022 | 13.5 | 4,950 | .022 |
COM5T | .3125 | .7500 | .375 | .281 | .419 | .562 | .032 | 12 | 6,475 | .030 |
COM6T | .3750 | .8125 | .406 | .312 | .516 | .656 | .032 | 10 | 8,400 | .038 |
COM8T | .5000 | 1.0000 | .500 | .390 | .600 | .781 | .032 | 9.5 | 13,250 | .065 |
COM10T | .6250 | 1.1875 | .625 | .500 | .739 | .968 | .032 | 8.5 | 21,280 | .110 |
COM12T | .7500 | 1.4375 | .750 | .593 | .920 | 1.187 | .044 | 9 | 31,920 | .204 |
COM14T | .8750 | 1.5625 | .875 | .703 | .980 | 1.312 | .044 | 9.5 | 41,960 | .263 |
COM16T | 1.0000 | 1.7500 | 1.000 | .797 | 1.118 | 1.500 | .044 | 10 | 55,200 | .386 |
COMH16T | 1.0000 | 2.0000 | 1.000 | .781 | 1.360 | 1.687 | .032 | 9 | 70,820 | .553 |
COMH20T | 1.2500 | 2.3750 | 1.187 | .937 | 1.610 | 2.000 | .032 | 8.5 | 100,730 | .895 |
BEARING COMES STANDARD WITH SNAP RING AND TEFLON LINER. CONTACT ENGINEERING FOR FURTHER INFORMATION.
BORE TOLERANCE: +.0025 -.0005
NOTES:
LUBRICATION GROOVES IN I.D. & O.D. OF RACE
FOR *TEFLON LINER ADD "T" TO SUFFIX. ~EXAMPLE: COM12T
(UNITS WITH *TEFLON LINERS HAVE NO LUBRICATION HOLES OR GROOVES IN RACE.)
