UL 15KV UD Cable Aluminum or Copper Conductor TRXLP Insulation Bare Copper Concentric Neutrals Polyethylene Jacket 500MCM

UL 15KV UD Cable Aluminum or Copper Conductor TRXLP Insulation Bare Copper Concentric Neutrals Polyethylene Jacket 500MCM

APPLICATIONS:

URD  TRXLPE insulated cables are designed and manufactured to meet the applications of primary underground distribution suitable for use in wet or dry location, direct burial, underground duct, and exposed to sunlight, To be used at 5kV upto 35kV at conductor temperatures not to exceed 90 deg. C for normal operation.

SPECIFICATIONS:

TRXLPE insulated URD cables meets or exceeds all applicable requirements of thefollowing standards, and guaranteed all cables manufactured and tested under this standards.

- ANSII ICEA S94-649

- AEIC CS-8

- ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231

- UL1072

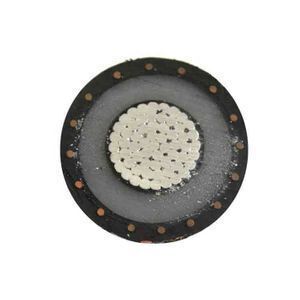

CONSTRUCTION:

Conductor : Bare aluminium or copper, stranded class B compressed stranding

Conductor Shield :Extruded semi-conducting compound

Insulation : TRXLP (TreeRetardant XLPE) or XLPE

Insulation Shield : Extruded semi-conducting compound

Concentric Neutral : Uncoated copper concentric neutral wires (coated copper are optional)

Encapsulated Jacket : Non-conducting LLDPE embedded jacket with extruded red stripes.

PVC or Semi-conducting jacket are available upon request

MAXIMUM CONDUCTOR TEMPERATURE:

Normal continuous at 90 °C, Overload at 130  °C and Short circuit at 250   °C

FEATURES & BENEFITS, OPTIONS:

- Triple extruded construction by dry curing process guarantees excellent quality of cables

- TRXLPE insulation offers proven superior life span than conventional XLPE cables

- Triplex type is optional, it brings you saving installation cost

- Strand-filled conductor & Water-blocking jacket is available upon request

DATE SHEET

CNAS accredited national level laboratory.

1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback.  Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.

1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.

2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
