Discount supply for transporting tank with heavy duty 20t Electric flat rail car

Product details
Port:any main port in china;Power source:According to user requirments;
Packaging Detail:Discount supply for transporting tank with heavy duty Electric flat rail car 20t with normal package;Place of Origin:Henan China;
Model name:heavy duty rail transfer cart;Wheel:4 Wheels;
Payment Terms:L/C,T/T,Western Union,electric flat rail car;Brand Name:HENGTAI;
Safety features:Warning alarm, end stop;Supply Ability:200 Set/Sets per Month electric flat rail car;
Warranty:12 months;Color:Customized;
Application:24v motor car;Brake:Electric motor brakes;
Weight:5-300Tons;Product name:Electric flat rail car 20t electric flat bed rail transfer car price;

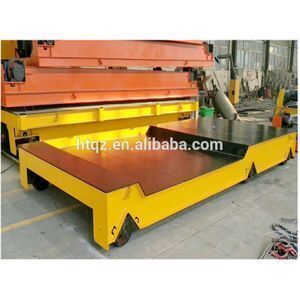

Hengtai electric flat rail car for sale

Product Description

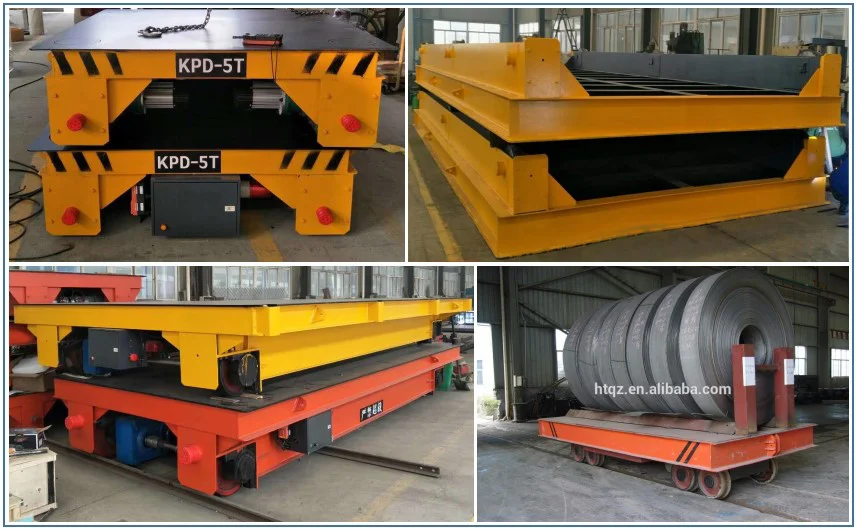

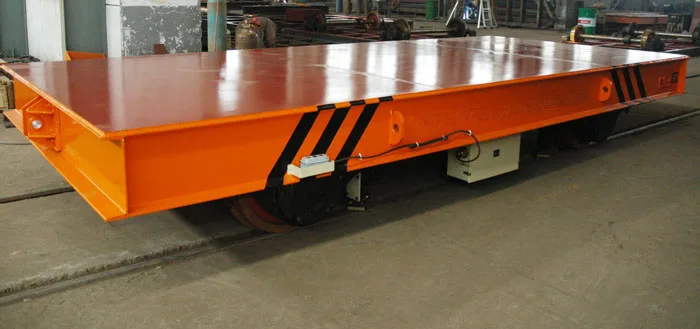

Hengtai electric flat rail car for sale

1. Specifications Electric Flat Car



1.Steel box beam structure
2.Applied in anti-explosive environment
3.Convenient and efficient
4.ISO/CE/CCC



2. Application:

Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.

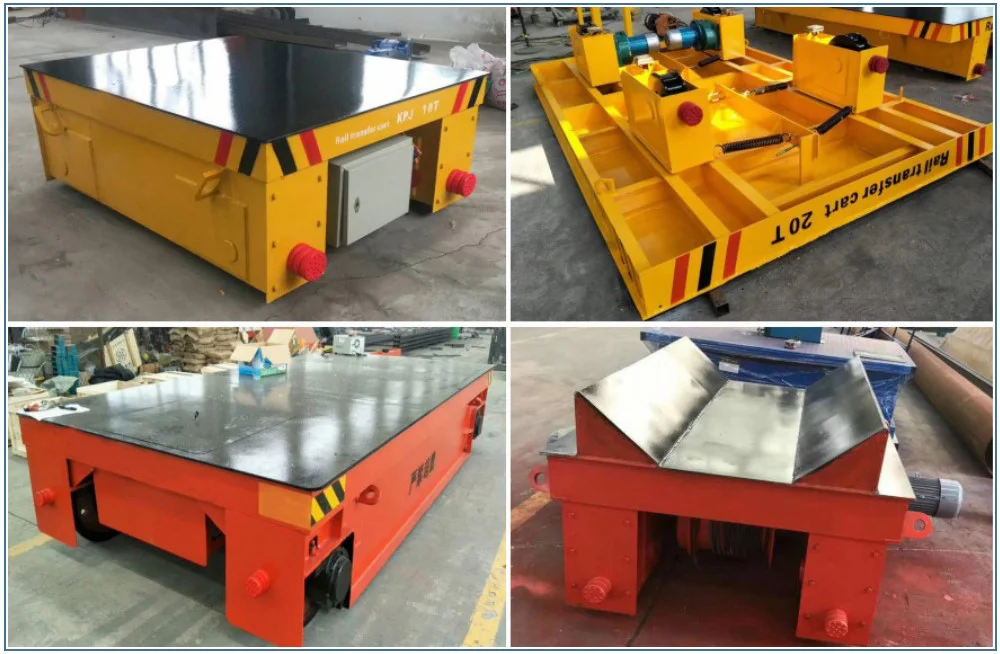

3. Different Types:



1.KPT type is powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter



2.KPJ type is powered by the cable from the cable reel. With the cable reel, the moving distance is improved to 200 meter compared with the KPT type.



3.KPX type is powered by the storage battery. Without the cable,this kind of transfer cart is more flexible and safe. While the capacity and the duty group are all affected by the storage battery. Especially,the price and the life span of the bettery is also an important issure.



4.KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.



5.KPD/PKDZ type is powered by the low voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type;the sytem is also more complicated and expensive.







 4.Technical Parameters



Table

Size

(mm)

Length (L)

2000

3500

3600

4000

4000

4500

4500

5000

5500

5600

Width (W)

1500

2000

2000

2000

2200

2200

2200

2500

2500

2500

Height (H)

450

450

500

500

600

600

600

650

650

750

Wheel Base(mm)

1200

2500

2600

2800

3200

3200

3200

4200

4200

4300

Rail Inner Gauge (mm)

1200

1435

1435

1435

1435

1435

1435

1435

1435

1435

Wheel Diameter(mm)

Φ270

Φ300

Φ300

Φ350

Φ400

Φ400

Φ400

Φ500

Φ500

Φ600

Wheel Quantity

  4

4

4

4

4

4

4

4

4

4

Ground Clearance(mm)

50

50

50

50

50

50

50

50

50

75

Running Speed(min)

0-25

0-25

0-25

0-20

0-20

0-20

0-20

0-20

0-20

0-20

Motor Power(KW)

1

1.2

1.6

2

2.2

3

3.5

4

5

6.3

Transformer Quantity

1

1

1

1

1

1

1

1

1

1

Running Distance(m)

80

80

80

80

80

80

80

60

50

50

Max Wheel Load(KN)

14.4

25.8

42.6

64.5

77.5

94.5

110.5

142.5

174

221.4

Reference Weight(t)

2.8

3.6

4.2

5.5

5.9

6.5

6.8

7.6

8

10.8

Recommended Rail Model

P15

P18

P18

P24

P24

P38

P38

P43

P43

P50

Packaging & Shipping



Hengtai electric flat rail car for sale

Packaging Detail:Standard type, pls consult our manager for detail solution

Delivery Detail:Within 25working days after depoist received.



Our Services

Hengtai electric flat rail car for sale

Delievery Time: After signing the contract and recieving the depoist, the production will take 15~25 working days. Special standard make cost 5~10 more working days.



Order Tracking: After the depoist recieved, there will be a professional team tracking the order from production to package and shipment.



Crane Testing: All the materials are purchased from high quality supplier in China or the world, beyond this, we also make commissioning and test before packagement to avoid the trouble back.



Company Information

Henan Hengtai Hiosting equipment



1. Henan Hengtai Hiosting equipment Co., Ltd. have rich experience on Design, Develop, Manufacture and Export industry Lift Equipment. We know every details about the Crane Application in Every Industries. Here in China, We are top of line!

2.We have exported our industy cranes to over many countries, such as Europe, America, Japan, Southeast Asia and other countries and regions. and received good feedback from them.

3.Our Crane is serving Tube making industry, auto industry, Rialway construction, Cement industry, Steel, coal mine, Power, Port, Chemical and other heavy Industry.

FAQ



Hengtai electric flat rail car for sale

 1. Q: Are you a trading company or a factory?

    A: We are factory which has a lot of experience.



 2. Q: Do you accept special design?

    A: Yes, we can design and manufacture products according to client's special requirements.



 3. Q: What about your package?

    A: We use wooden box as normal, but if you have special requirement we can change and add special shipping mark.



4. Q: How long will you take before shipping?

    A: It is according to the products you need.
