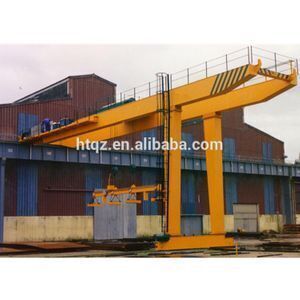

1t 3ton 5ton 10ton 20ton 25t 50t single girder mobile gantry crane

Supplier: HENGN HENGTAI HEAVY INDUSTRY GROUP CO.,LTD
Region: Henan, China
Contact: Ms May Wang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Item:	Double Girder Magnet Overhead Crane;	Type:	120 Ton Cost 12 Mobile 10ton Load Rtg Container Gantry Crane;
Power Source:	3 Phase 380V 50hz;	Main electrical parts:	Siemens Brand;
Condition:	New;	Packaging Detail:	1t 3ton 5ton 10ton 20ton 25t 50t single girder mobile gantry crane;
Lifting mechanism:	Eliectric Hoist;	Applicable Industries:	Hotels,Manufacturing Plant;
Feature:	Gantry Crane;	Crane feature:	1t 3ton 5ton 10ton 20ton 25t 50t single girder mobile gantry crane;
Max. Lifting Height:	30m;	Supply Ability:	300 Set/Sets per Month Workyard Workshop Equipment Yacht Lifting Gantry Crane;
Rated Loading Capacity:	20~1000kn;	Certification:	ISO, CE.SGS.ISO;
Working Class:	A3-A5;	Port:	any main port in china;
Application:	Port, Steel manufactory;	Control method:	Wireless Remote Control;
After-sales Service Provided:	Video technical support,Free spare parts;	Span:	18-35m, 12m;
Brand Name:	HENGTAI;	Rated Lifting Moment:	600ton;
Warranty:	1 Year;	Product name:	used portable yacht lifting 150 tons 100 ton gantry crane;
Crane type:	Container Cost Used Sale Gantry Concrete Girder Lifting Crane;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Electric Single Girder Overhead Crane 5 ton;

Product Description

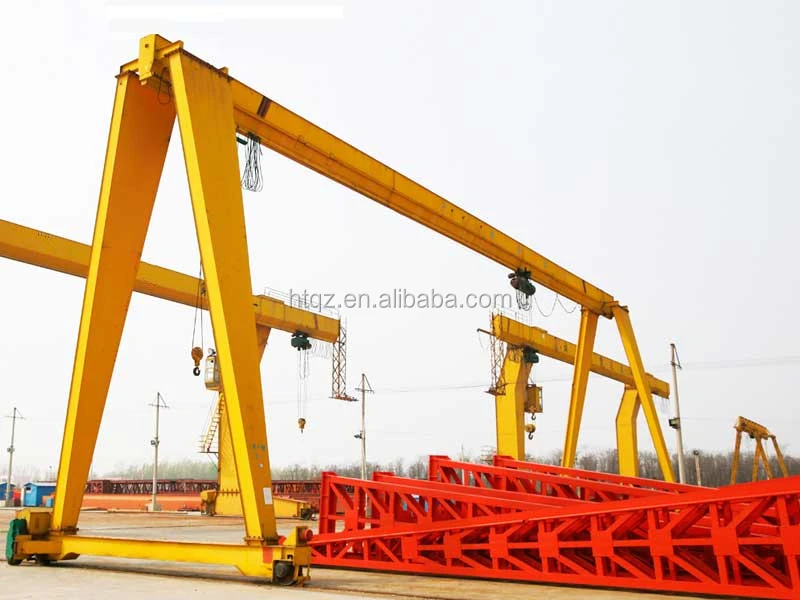

1t 3ton 5ton 10ton 20ton 25t 50t single girder mobile gantry crane

A gantry crane is a lifting device used for cargo handling in outdoor places such as warehouse terminals, stations, and construction sites. Within the working radius, the gantry crane can lift, descend and move horizontally to carry out cargo lifting, which greatly reduces physical labor and improves work efficiency.

Detailed Images

1t 3ton 5ton 10ton 20ton 25t 50t single girder mobile gantry crane

According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components

1, cylindrical wheel 2, buffer

3, block brake 4, wire rope

5, lifting hook 6, the driver's office

7, reducer 8, casting pulley

9, casting reel 10, the motor

11, electronic control

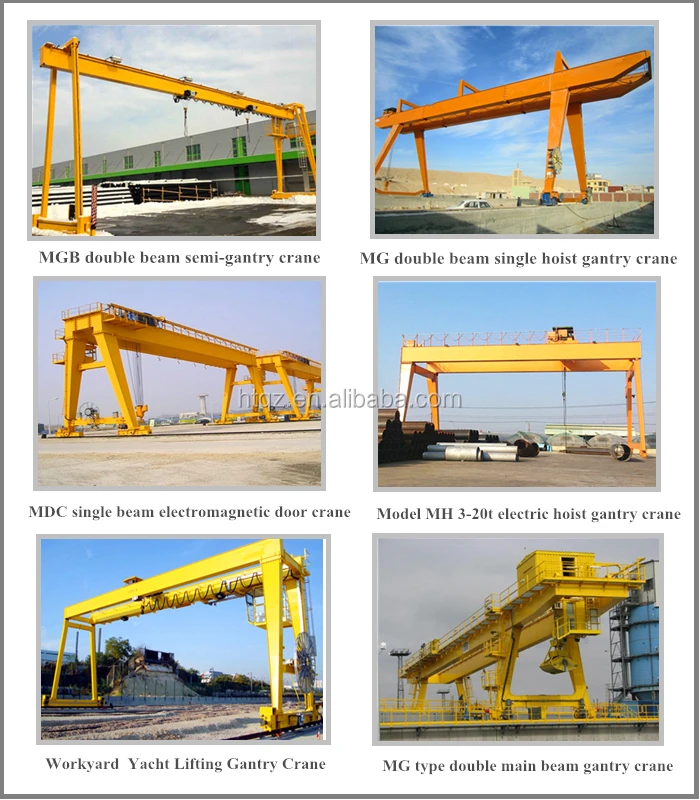

1. Ordinary gantry cranes These cranes are mostly box-type and truss-type structures and are the most widely used. It can handle all kinds of articles and bulk materials with a weight of less than 100 tons and a span of 4 to 39 meters. Ordinary gantry cranes with grabs have a higher working level. Common gantry cranes mainly refer to hooks, grabs, electromagnetic, hoist gantry cranes, and also include half-gantry cranes.

2. Hydropower station gantry cranes are mainly used for lifting and opening and closing gates, and can also be installed. The lifting capacity is 80~500 tons, the span is small, 8~16 meters; the lifting speed is low, 1~5 meters/min. Although such cranes are not often lifted, they are very heavy once they are used, so it is necessary to raise the level of work.

3. Shipbuilding gantry cranes are used to assemble hulls on the hull. There are two hoisting trolleys: one with two main hooks running on the rails on the upper flange of the bridge; the other with one main hook and one auxiliary hook. Running on the rails of the lower flange of the bridge to flip and hoist large hull sections. The lifting capacity is generally 100~1500 tons; the span is 185 meters; the lifting speed is 2~15 meters/min, and the fretting speed is 0.1~0.5 m/min.

Product Overviews

1t 3ton 5ton 10ton 20ton 25t 50t single girder mobile gantry crane

Loading capacity	5 ~ 500t
Lifting height	3 ~ 30 m or customized
Lifting speed	Vary with lifting capacity, or customized.
Span	10.5~31.5 m/min
Lifting mechanism	Wire rope hoist or electric chain hoist
Working class	A5-A8
Working temperature	-20~40
Power supply	AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage	DC -36 / 48V
Motor protection class	IP54 IP55 IP65
Control way	Cabin, wireless remote, pendant push button
Safety device	Buffer,current overload protection,overload device
Application area	Factory,workshop,warehouse,power station,
